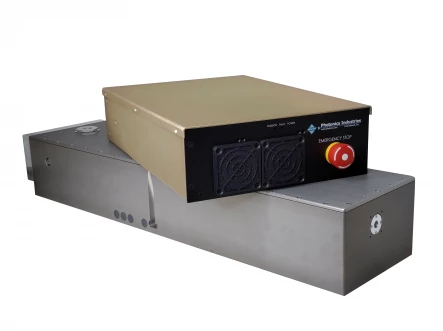

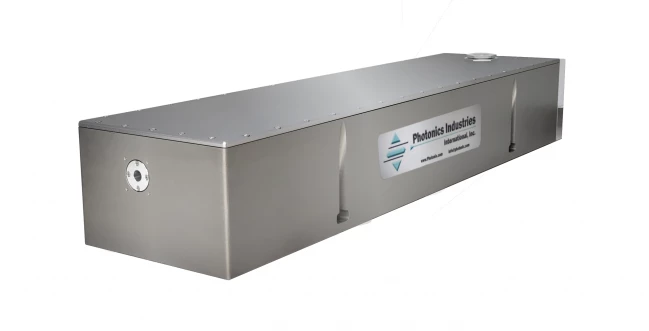

DMX Series High Pulse Energy Nanosecond Lasers

Specifications

Avg. Power: 30 W
Wavelength: 532 nm
Repetition Rate: 0.001 – 10 kHz
Spatial Mode (M^2): 10
Pulse Duration: 100 ns
Pulse-to-Pulse Stability (RMS): 0.5 %
Cooling: Water-to-Water, Water-to-Air
Pulse Energy: 20-100 mJ
Document icon Download Data Sheet Download icon

Features


  • Patented Highest Pulse Energy Green Laser: Achieve superior performance with the highest pulse energy at 527 nm.

  • Compact Form Factor: Consolidated controls within the laser head for ultimate ease-of-use operability via GUI software.

  • Ideal Power Supply: Designed for 19” rack-mount configurations with an optional flange kit available.

  • Monolithic Laser Head: Simplest, high-performance design with the driver contained in the laser head for maximum efficiency.

  • Optimized for PIV and Ti:Sapphire Amplifiers: Perfect for pumping Ti:Sapphire laser amplifiers and Particle Image Velocimetry applications.

  • Pulse Energy Up to 100 mJ: Delivers high pulse energy for demanding applications.

  • Proprietary Twin Pulse Option: Offers double pulses from a single trigger signal with user-programmable energy ratio and pulse separation.

  • Dual Head Option Available: Includes GUI software adjustable turning mirrors, eliminating the need for manual adjustment.

  • Uniform Beam Profile: Ensures consistent and reliable performance.

  • Excellent Pulse to Pulse Stability: Achieves ~0.5% RMS stability for precision applications.




Applications


  • Particle Image Velocimetry (PIV): Ideal for capturing high-speed fluid dynamics.

  • Annealing or “Bleaching”: Change material properties without material removal.

  • Pumping Ti:Sa Ultrafast Amplifier Systems: Enhance ultrafast laser systems with high power.

  • High Power or High Pulse Energy Drilling or Cutting: Suitable for hard materials.
