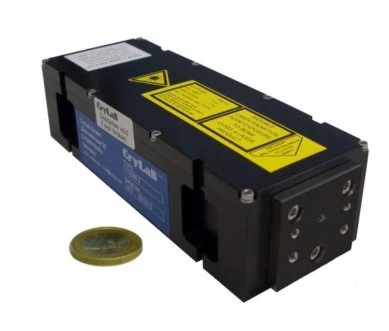

FDSS 532-Q Diode Pumped Q-Switched Solid-State Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description
The FDSS 532-Q Crystal Laser System by CryLas GmbH represents a pinnacle in diode-pumped passively Q-switched solid-state laser technology. Designed to deliver precision and reliability, this laser system operates at a wavelength of 532 nm, making it an ideal choice for a variety of scientific and industrial applications. With its compact design, the FDSS 532-Q is engineered to provide exceptional performance in a user-friendly package.
One of the standout features of the FDSS 532-Q is its ability to deliver pulsed laser output with pulse widths of less than or equal to 1.3 nanoseconds. This capability results in high peak power outputs, which are crucial for applications requiring precise energy delivery in short bursts. The laser system supports both external and internal triggering, offering flexibility in operation, and can be configured for free beam or fiber coupling, depending on the specific needs of the user.
The FDSS 532-Q is built to maintain consistent performance over time, with a pulse energy drift of less than ±5% and pulse-to-pulse RMS stability of less than 3% at 15 kHz. This level of stability ensures reliable and repeatable results, critical for demanding applications in fields such as biology, biomedicine, and chemistry. The laser's polarization ratio of greater than 100:1 vertical further enhances its precision and effectiveness.
In terms of usability, the FDSS 532-Q offers a range of options to suit different operational requirements. These include a stand-alone system with key-switch and manual shutter, as well as options for fiber coupling and external beam expanders. The system's quick warm-up time of less than 5 minutes and operating temperature range of 18 - 38 °C make it convenient for various working environments.
Overall, the FDSS 532-Q Crystal Laser System is a robust and versatile tool that combines advanced laser technology with practical design elements, making it a valuable asset for professionals seeking high-performance laser solutions.
FDSS 532-Q Diode Pumped Q-Switched Solid-State Laser
Specifications |
|
|---|---|
| Avg. Power: | 1500 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 1 – 20 kHz |
| Spatial Mode (M^2): | 3.5 |
| Pulse Duration: | 1.3 ns |
| Pulse-to-Pulse Stability (RMS): | 3 % |
| Cooling: | Air |
| Pulse Energy: | 2 uJ |
| Beam Divergence: | < 3.5 mrad |
| Beam Diameter: | 250 µm |
| Power Consumption: | 15 W |
| Operating Voltage: | 12 V |
| Line Voltage: | 90 - 265 VAC |
Features
- High Pulse Energy: Provides pulse energies exceeding 42 µJ for demanding precision applications.
- Short Pulse Width: Delivers sub-1.3 ns pulse durations to achieve high temporal resolution.
- High Peak Power: Offers peak powers up to 30 kW for effective material interaction and analysis.
- Flexible Triggering Options: Supports both external and internal trigger modes, including single pulse operation.
- Compact and Efficient Design: Small footprint laser head with low power consumption for easy system integration.
- Excellent Beam Quality: TEM00 spatial mode with high polarization ratio (>100:1 vertical) for superior performance.
- Multiple Output Configurations: Available in free-space or fiber-coupled versions for versatile deployment.
- Optional Integrated Features: Includes manual shutter, electrical beam blocker, synchronization output, and beam expanders.
Applications
- Biology Research: Enables precise fluorescence excitation and micro-ablation in biological studies.
- Biomedicine: Suitable for tissue diagnostics, laser-induced breakdown spectroscopy (LIBS), and surgical analysis.
- Chemistry: Ideal for initiating photochemical reactions and time-resolved spectroscopic measurements.
- Analytical Instrumentation: Provides reliable green pulsed sources for high-resolution material analysis.
- Material Characterization: Supports Raman spectroscopy and non-linear optical experiments requiring green wavelengths.
- Laser-Induced Plasma Generation: Effective for plasma creation in controlled laboratory environments.
- Micro-Machining: Enables fine marking, drilling, and structuring of diverse materials with high precision.
- Scientific Research: Delivers stable, short-pulse green laser output for advanced optical experiments.
Frequently Asked Questions
The CryLaS FDSS-532-Q1 Pulse Laser is used for applications where high energies with short pulse durations are required with minimal housing dimensions. It is suitable for LIBS (laser-induced breakdown spectroscopy), pulsed Raman spectroscopy, optical transfection, photoluminescence, and photoacoustic applications.
The available options for the CryLaS FDSS-532-Q1 Pulse Laser include a stand-alone system (incl. key-switch, heat-sink, manual shutter; CDRH compliant), synchronization signal output (rise time < 2 ns), and fiber coupling for fiber with core diameter > 70 µm.
The operating temperature range of the CryLaS FDSS-532-Q1 Pulse Laser is 18 - 38 °C.
The pulse energy of the CryLaS FDSS-532-Q1 Pulse Laser is > 2 µJ @ 15 kHz.
The wavelength of the CryLaS FDSS-532-Q1 Pulse Laser is 532 nm.
