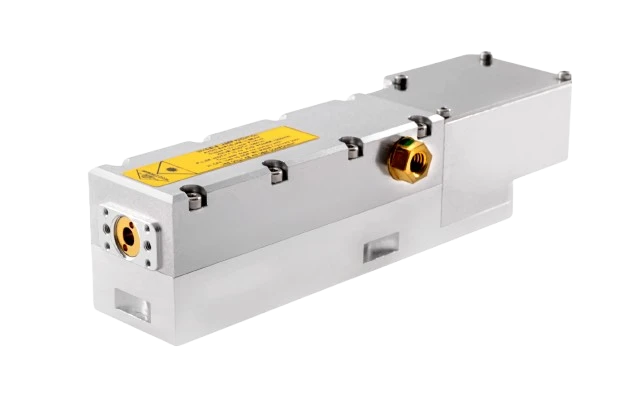

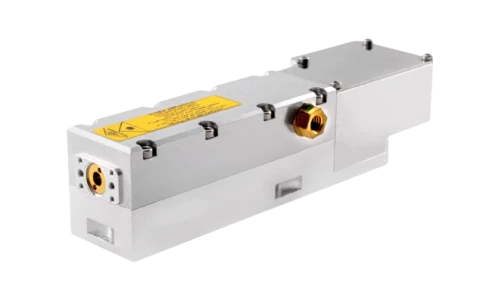

Thumbnail of SNP-20F-100 High Performances IR Microchip Laser photo 1

Description

For generating high peak power IR pulses of a few hundred picoseconds, microchip lasers are economical, compact, and reliable. Sub-nanosecond 1064nm pulses are indeed directly generated from the diode pumped passively Q-switched Nd:YAG microchip engine.

Microchips are also easy to operate and service ; controllers can be used with every laser head model and swapped within minutes while conserving constant performances.

The SNP series are designed for high average power, either from pulse energies of 20 µJ at 1064nm, or from repetition rates up to 130 kHz.

SNP-20F-100 High Performances IR Microchip Laser

Visit the Teem Photonics Store

Specifications

Avg. Power: 0.14 W
Wavelength: 1064 nm
Repetition Rate: 19 – 19 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 1 ns
Pulse-to-Pulse Stability (RMS): 3 %
Cooling: Air
Beam Profile: Gaussian TEM00
Beam Ellipticity: <1.3
Polarization: Linear, PER>20dB
Output Energy: >7uJ
Peak Power: >10kW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Repetition rate up to 130 kHz
  • Ultrashort pulses down to 600 ps
  • Multi-kW peak power
  • Excellent beam quality – TEM00, M²<1.1
  • Efficient, air-cooled
  • Sealed package, extremely long life

Applications

  • Material Processing
    • Cost effective marking solutions
    • Graphitization
  • Instrumentation
    • Ranging
    • Differential absorption LIDAR
    • Super-continuum generation
    • Distributed temperature sensing
    • Raman spectroscopy
  • Biophotonics
    • Nanosurgery
    • Protein cross-linking

Frequently Asked Questions

What is the maximum repetition rate of the SNP-20F-100 High Performances IR Microchip Laser?
The maximum repetition rate of the SNP-20F-100 High Performances IR Microchip Laser is up to 130 kHz.
What is the pulse duration of the SNP-20F-100 High Performances IR Microchip Laser?
The pulse duration of the SNP-20F-100 High Performances IR Microchip Laser is down to 600 ps.
What is the peak power of the SNP-20F-100 High Performances IR Microchip Laser?
The peak power of the SNP-20F-100 High Performances IR Microchip Laser is multi-kW.
What are some applications of the SNP-20F-100 High Performances IR Microchip Laser?
The SNP-20F-100 High Performances IR Microchip Laser can be used for material processing, instrumentation, and biophotonics applications such as ranging, super-continuum generation, nanosurgery, and protein cross-linking.
Is the SNP-20F-100 High Performances IR Microchip Laser easy to operate and service?
Yes, the SNP-20F-100 High Performances IR Microchip Laser is easy to operate and service. Controllers can be used with every laser head model and swapped within minutes while conserving constant performances.

Got more questions? Use the inquiry form to ask the supplier directly.
