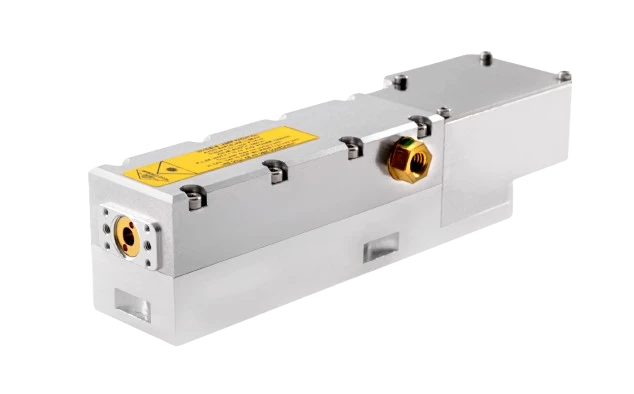

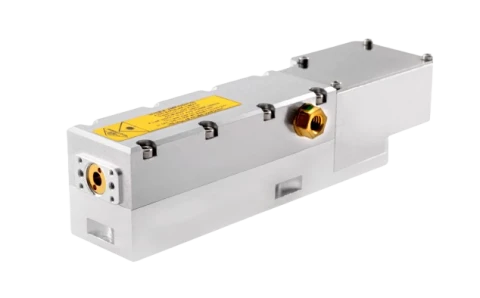

SNP-200P-100 High Performance IR Microchip Laser

Name: SNP-200P-100 High Performance IR Microchip Laser
Brand: Teem Photonics
Availability: InStock

Description

For generating high peak power IR pulses of a few hundred picoseconds, microchip lasers are economical, compact, and reliable. Sub-nanosecond 1064nm pulses are indeed directly generated from the diode pumped passively Q-switched Nd:YAG microchip engine.

Microchips are also easy to operate and service ; controllers can be used with every laser head model and swapped within minutes while conserving constant performances.

The SNP series are designed for high average power, either from pulse energies of 20 µJ at 1064nm, or from repetition rates up to 130 kHz.

Specifications

Avg. Power:	0.2 W
Wavelength:	1064 nm
Repetition Rate:	19 – 19 kHz
Spatial Mode (M^2):	1.3
Pulse Duration:	0.85 ns
Pulse-to-Pulse Stability (RMS):	1 %
Cooling:	Air
Beam Profile:	Gaussian TEM00
Beam Ellipticity:	<1.2
Polarization:	Linear, PER>20dB
Output Energy:	>11uJ
Peak Power:	>13kW

Download Data Sheet

Features

Repetition rate up to 130 kHz

Ultrashort pulses down to 600 ps

Multi-kW peak power

Excellent beam quality – TEM00, M²<1.1

Efficient, air-cooled

Sealed package, extremely long life

Applications

Material Processing
- Cost effective marking solutions
- Graphitization

Instrumentation
- Ranging
- Differential absorption LIDAR
- Super-continuum generation
- Distributed temperature sensing
- Raman spectroscopy

Biophotonics
- Nanosurgery
- Protein cross-linking

Add to Watchlist (My Watchlist)

Ships from:

France

Sold by:

Teem Photonics

On FindLight:

since 2019

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the maximum repetition rate of the SNP-200P-100 High Performance IR Microchip Laser?

The maximum repetition rate of the SNP-200P-100 High Performance IR Microchip Laser is up to 130 kHz.

What is the pulse duration of the laser?

The laser can generate ultrashort pulses down to 600 ps.

What is the peak power of the laser?

The laser can generate multi-kW peak power.

What are some applications of the SNP series microchip lasers?

The SNP series microchip lasers can be used for material processing, instrumentation, and biophotonics applications such as ranging, differential absorption LIDAR, nanosurgery, and protein cross-linking.

Is the laser easy to operate and service?

Yes, the microchip laser is easy to operate and service. Controllers can be used with every laser head model and swapped within minutes while conserving constant performances.
