VIRON

Description

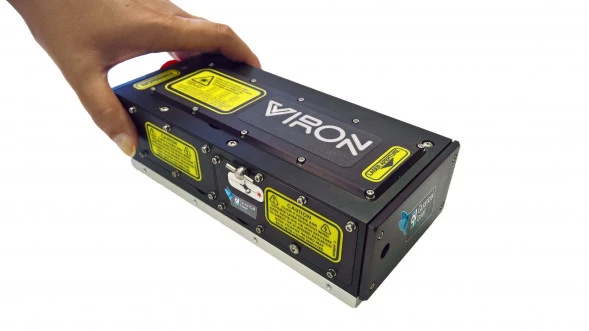

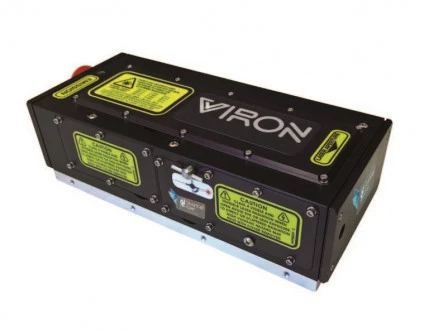

The Viron is a diode pumped Q-switched Nd:YAG laser. The Viron was specifically designed for high efficiency in a robust, compact package favored by instrumentation manufacturers.

For more information

Specifications

Avg. Power:	0.6 W
Wavelength:	1064 nm
Repetition Rate:	0.02 – 0.02 kHz
Spatial Mode (M^2):	Not Specified
Pulse Duration:	12 ns
Pulse-to-Pulse Stability (RMS):	1.5 %
Cooling:	Air

Download Data Sheet

Features

COMPACT PULSED DIODE-PUMPED SOLID-STATE LASER

LASER HEAD AND CONTROL ELECTRONICS INTEGRATED INTO ONE HOUSING

OPERATION REQUIRES ONLY AN EXTERNAL 24V DC STANDARD POWER SUPPLY

SEALED FOR OPERATION IN VARIOUS ENVIRONMENTS

EASY TO INTEGRATE

Applications

LIBS

LIDAR

Biotechnology
etc.

Add to Watchlist (My Watchlist)

Ships from:

France

Sold by:

Quantel Laser by Lumibird

On FindLight:

since 2022

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the Viron laser used for?

The Viron laser can be used for applications such as LIBS, biotechnology, LiDAR, ranging, and active imaging.

What are the main features of the Viron laser?

The main features of the Viron laser include a compact design, integration of laser head and control electronics, operation with a 24V DC power supply, and sealed operation in various environments.

What are the typical beam profiles of the Viron laser?

The Viron laser offers different beam profiles, including 50 mJ at 1064 nm, 25 mJ at 532 nm, 9 mJ at 266 nm, 4 mJ at 213 nm, and 12 mJ at 355 nm, all at a repetition rate of 20 Hz.

What are the specifications of the Viron laser?

The specifications of the Viron laser include a repetition rate of 20 Hz, energy per pulse ranging from 30 mJ to 50 mJ depending on the wavelength, pulse duration of less than 10 ns, and beam diameter ranging from 2.5 mm to 3.8 mm.

What are the power requirements for the Viron laser?

The Viron laser requires a 24V DC power supply with a tolerance of ±10% and a power consumption of 250 W.
