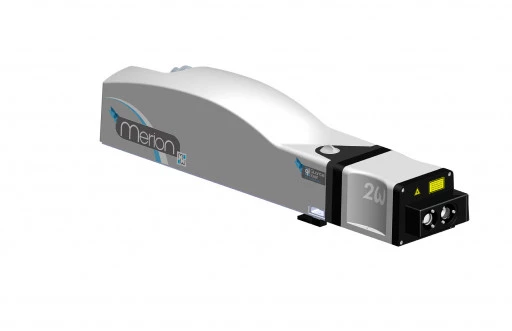

Merion MW - Nanosecond Solid State Laser
OVERVIEW
The Merion MW is the flexible and high power version of the new diode-pumped nanosecond MERION series.
The Merion MW is the most cost effective high performance diode-pumped Nd:YAG laser, which combines high energy and high repetition rate in the most compact package, utilizing state of the art, high efficiency laser diodes and gain modules, designed and manufactured in house.
From 200 mJ up to 1 J, tens of Hz to 200 Hz, the Merion MW can be equipped with plug and play harmonic generators, down to 266 nm, to cover a wide range of applications.
With its robust and monolithic design, it represents the best choice for all applications requiring simultaneous high peak and high average power.
SPECIFICATION
- Avg. Power: 30 W
- Wavelength: 1064 nm
- Repetition Rate: 0.1 - 0.2 kHz
- Spatial Mode (M^2): --
- Pulse Duration: 5 - 9 ns
- Pulse-to-Pulse Stability (RMS): ± 2 (0.6) %
- Cooling: Water-to-Water
- Beam Divergence @ 1064 Nm: < 1 mrad
Applications
- MATERIAL PROCESSING
- LASER PEENING
- DYE, & Ti:Sa PUMPING
- Ablation
- LIDAR
- LIF
- Spectroscopy
- Pumping
- OPO pumping
- Ultrasound generation
- Photoacoustics
KEY FEATURES
- Quick and easy access to 1064, 532, 355 and 266 nm
- Plug and Play harmonics with automatic phase matching
- Repetition rates up to 200 Hz
- Compact and robust design
- SLM option
- Diode warranty: 2 billion shots
