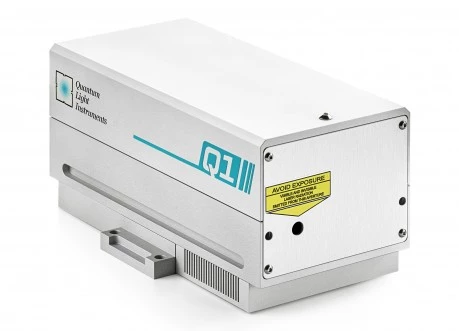

QLI - DPSS air-cooled Q-switched laser - Q1 series
Description
Q1 is compact, energy-efficient, diode pumped,
air‑cooled, Q-switched laser designed for wide range of
applications that require high peak power pulses.
Laser can produce up to 45 mJ at 10 Hz pulse repetition
rate or up to 10 mJ at 50 Hz pulse repetition rate. Low
divergence of laser beam allows efficient conversion
to harmonic wavelengths using optional H1 series
harmonic generator module. The laser can configured to emit 1053 nm or 1064 nm wavelength from Nd:YLF or Nd:YAG laser crystals respectively. Due athermal properties of Nd:YLF crystal, at 1053 nm the laser can operate from single shot to
maximum pulse repetition rate without significant changes in beam divergence or profile. Innovative laser design resulted in user-friendly turnkey system that requires little maintenance. There is no chillers or bulky power supplies that one needs fit under the table. All laser electronics is integrated into Q1 housing and the only external modules are lightweight controller box that provides laser control interfaces and mains adapter that provides 12 VDC powering. Total weight of the laser is less than 5 kg. Laser is monitored and controlled trough Ethernet port via build-in web-server. Any computer or even cell phone with modern web-browser will be able to control Q1. API is provided for integration with user devices. Low jitter triggering pulses for user equipment are available with up to 300 μs lead in internal triggering mode. In external triggering mode, laser pulsing can be externally triggered from delay generator.
QLI - DPSS air-cooled Q-switched laser - Q1 series
Specifications |
|
|---|---|
| Avg. Power: | 0.5 W |
| Wavelength: | 1053 or 1064 nm |
| Repetition Rate: | 0.01-0.05kHz |
| Spatial Mode (M^2): | 1.5 |
| Pulse Duration: | 7 ns |
| Pulse-to-Pulse Stability (RMS): | 0.5 % |
| Cooling: | Air |
Features
Laser functionality can be further extended by wide
selection of auxiliary equipment:
❯ Up to fifth harmonic output can be produced from our
stand-alone H1 series harmonic generators.
❯ Pulse energy can be adjusted with our motorized
attenuator for fundamental wavelength beam.
❯ Pulse energy can be monitored by our attachable pulse
energy monitor with analog and/or digital output.
❯ Fiber coupled output is available by request. Please
inquire for detailed specifications.
Applications
Laser Induced Breakdown Spectroscopy (LIBS)
Time-of-Flight Spectroscopy (TOFS)
Light Induced Fluorescence (LIF) Spectroscopy
Flash photolysis
Matrix Assisted Laser Desorption/Ionization (MALDI)
Pulsed light deposition (PLD)
Laser ablation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Lithuania
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
Yes, the laser can be monitored and controlled through an Ethernet port via a built-in web server. Any computer or even cell phone with a modern web browser will be able to control the Q1. An API is provided for integration with user devices.
Yes, the laser can be configured to emit 1053 nm or 1064 nm wavelength from Nd:YLF or Nd:YAG laser crystals respectively.
Yes, the innovative laser design resulted in a user-friendly turnkey system that requires little maintenance. There are no chillers or bulky power supplies that need to be fit under the table.
Laser functionality can be further extended by a wide selection of auxiliary equipment, including up to fifth harmonic output from stand-alone H1 series harmonic generators, motorized attenuator for fundamental wavelength beam, pulse energy monitor with analog and/or digital output, and fiber-coupled output by request. Please inquire for detailed specifications.
The laser can produce up to 45 mJ at 10 Hz pulse repetition rate or up to 10 mJ at 50 Hz pulse repetition rate.
