Description
The pigtailed aspheric optical fiber collimator selected by CSRayzer is made of single-mode polarization-maintaining pigtail fiber and aspheric lens by precise positioning and packaging. The structure design is compact.
Each collimator with pigtail fiber of about 1m has diffraction limit performance at the designed wavelength, which can not only collimate the optical fiber beam, but also couple the external parallel light into the optical fiber, which is convenient for integration and installation. At present, it can provide 405nm, 532nm, 543nm and 633nm according to customer requirements.

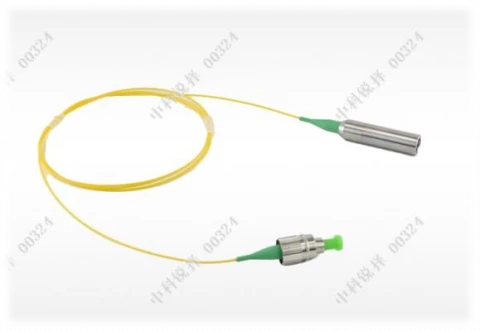

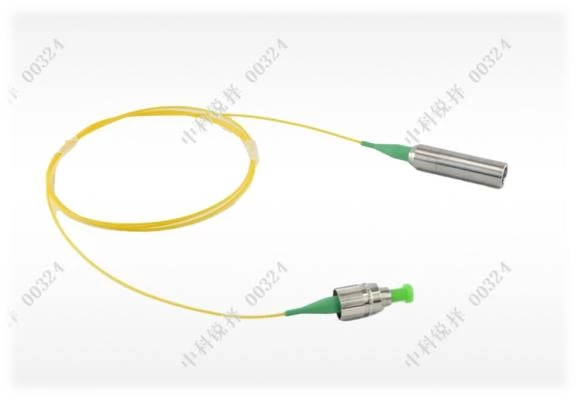

Pigtailed Aspheric Fiber Optic Collimator for Quantum Optics/ Cold Atoms
Specifications
| Lens Type: | Aspheric |
|---|---|
| Wavelength: | 400~1600 nm |
| Waist Diameter: | specify |
| Waist Distance: | specify |
Download Data Sheet
Features
The optic collimator can not only collimate the optical fiber beam, but also couple the external parallel light into the optical fiber, which is convenient for integration and installation
Applications
- Collimation of Optical Fiber Beam: The pigtailed aspheric fiber optic collimator can effectively collimate the optical fiber beam, ensuring precise alignment and minimal divergence.
- Coupling External Parallel Light: It can couple external parallel light into the optical fiber, making it convenient for integration and installation in various optical systems.
- Compact Structure Design: The collimator features a compact design, facilitating easy handling and installation in space-constrained environments.
- Customizable Wavelengths: Available in various wavelengths such as 405nm, 532nm, 543nm, and 633nm, tailored to meet specific customer requirements.
- High Precision and Performance: Each collimator is designed to achieve diffraction limit performance at the specified wavelength, ensuring high precision and efficiency.
- Single-Mode Polarization-Maintaining Fiber: Utilizes single-mode polarization-maintaining pigtail fiber, enhancing the stability and quality of the optical signal.
- Versatile Applications: Suitable for use in telecommunications, laser systems, and other optical applications requiring precise beam collimation and coupling.
Frequently Asked Questions
What is a pigtailed aspheric fiber optic collimator?
A pigtailed aspheric fiber optic collimator is a device made of single-mode polarization-maintaining pigtail fiber and an aspheric lens, designed to collimate optical fiber beams and couple external parallel light into the optical fiber.
What wavelengths are available for the pigtailed aspheric fiber optic collimator?
The available wavelengths for the pigtailed aspheric fiber optic collimator are 405nm, 532nm, 543nm, and 633nm, with additional options based on customer requirements.
What is the typical pigtail fiber length for these collimators?
Each collimator comes with a pigtail fiber of about 1 meter in length.
What is the purpose of the aspheric lens in the collimator?
The aspheric lens in the collimator is used for precise positioning and packaging, allowing the device to achieve diffraction limit performance at the designed wavelength.
What are the typical applications of this collimator?
The collimator is used to collimate optical fiber beams and couple external parallel light into optical fibers, making it convenient for integration and installation in various optical systems.
What is the divergence full angle for the model COL-0.86-633-AR-12.7*15-PM630HP-FC/APC-1?
The divergence full angle for the model COL-0.86-633-AR-12.7*15-PM630HP-FC/APC-1 is ≤0.05°.
What fiber types are used in these collimators?
The fiber types used in these collimators include PM460HP, PM630HP, PM780HP, PM980, and PM1550, depending on the model.
