Description

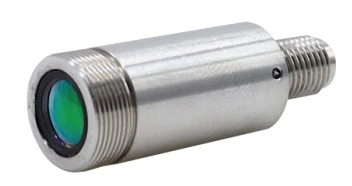

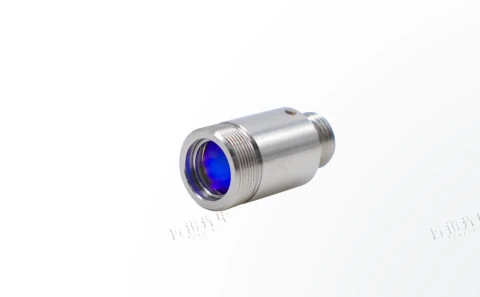

Archromatic Collimators with SMA Connector
This achromatic collimator series consists of a group of long focal length collimating optical systems with chromatic aberration and distortion compensation design, making the focal length of the collimator insensitive to wavelength bandwidth. The divergent light beam emitted from the optical fiber, providing a good collimating effect and beam shape within a certain distance range. The op- tical surfaces of the lens group are coated with anti-reflection film to minimize surface reflection. The relative position of the lens and fiber is precisely adjusted to ensure that the deviation angle of the emitted light is within 0.3°,and standardized manufacturing processes ensure stable consistency of the product.
NOTE: Price does not include the destination country's customs duties and value-added tax (VAT).
Archromatic Collimators SMA
Specifications |
|
|---|---|
| Wavelength: | 400 - 1654 nm |
| Bandwidth: | +/-10nm |
| Waist Beam: | 0.87 - 3.95 mm |
| Divergence Angle: | 0.014+0.01°~0.062+0.01° |
| EFL: | 4.06 - 20.12 mm |

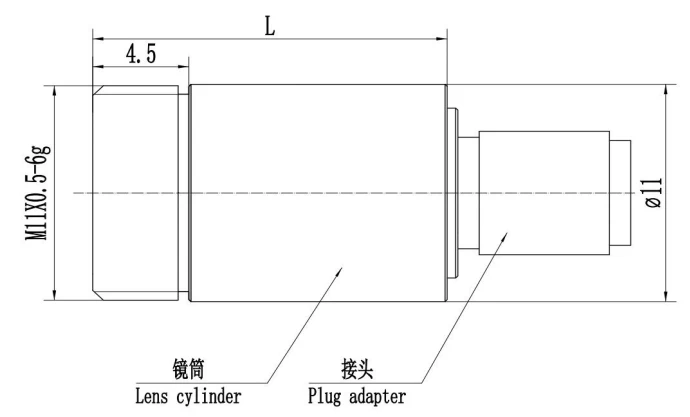

| Package Dia.: | φ11mm |
| Max. Power: | 2W @ Beam Size |
| Transmittance: | >95% |
Features
- Three Connector Options: FC/PC, FCAPC, SMA905
- Compatible with Narrow and Wide Key Connectors
- Compact structure
- Convenient for installation
- The focal length has little influence on the wavelength, thus facilitating the handling of adjacent wave- lengths
- It is recommended to use it together with Ysenser's standard patch cords to achieve better interchange- ability and repeatability
Applications
- Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
- Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
- Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
- Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
- Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
- Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices
Frequently Asked Questions
The connector type used in these products is SMA905.
The maximum power output for these products is 2W.
These products cover a range of wavelengths from 405nm to 1654nm.
The transmittance percentage for these products is ≥95%.
The beam size ranges from 0.87mm to 4.23mm, depending on the model.
The divergence angle for these products ranges from 0.014° to 0.062°, depending on the model.
