Description

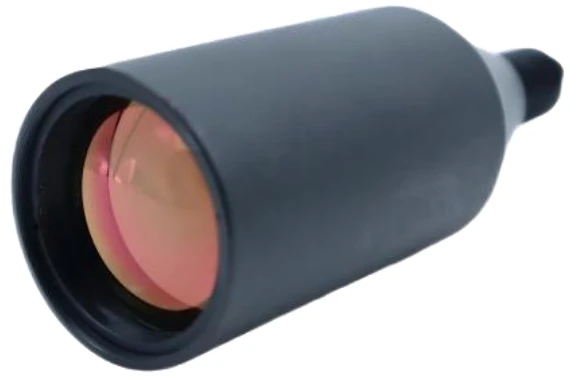

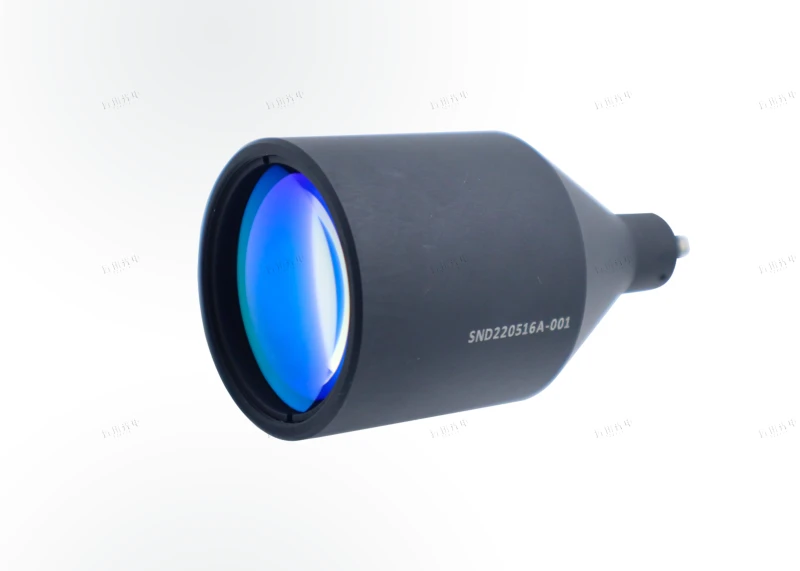

Long Distance Collimators For 300M FC/APC Connector 1200nm-1700nm
For laser collimation or coupling at up to 300 meters, we've carefully designed the collimating lens with a focal length of around 150 mm. This effectively collimates and shapes the fiber-emitted laser beam, yielding a high-quality beam with a larger beam. The lens uses an advanced multi-air-spaced lens design. It outputs a beam of extremely high quality (M² approaching 1) with minimal wavefront error, making it perfect for long-distance laser transmission and pulsed laser emission. Within the effective range, it ensures excellent collimation, with an approximately Gaussian energy distribution, a clear and sharp spot, and no obvious diffraction, thus enhancing laser performance.
Long Distance Collimators For 300M FC/APC Connector 405nm-1654nm
Specifications
| Center Wavelength: | 850 nm |
|---|---|
| Bandwidth: | 60 nm |
| Numerical Aperture: | 0.16 |
| Effective Focal Length (EFL): | 150.8 mm |
| Connector: | FC/APC |
| Wavelength Options (model Dependent): | 405 - 1654 nm |
| Bandwidth: | ±30 nm |
| Output Beam Size (model Dependent): | 22.89 - 34.80 mm |
| Divergence Angle (model Dependent): | 0.043 - 0.075 mrad |
| NA (model Dependent): | 0.16 - 0.18 |
| Manufacturer Part Number (MPN): | YSD-XXXX-XXXX-FC/APC |
| FindLight SKU: | FL-23780 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Suitable for the collimation or coupling from optical fiber to free space
- Maintain good collimation characteristics within a range of 300 meters
- The maximum input fiber numerical aperture (NA) that can be coupled is 0.24
- Three AR-Coated Aspheric Lens Options: 400-700nm. 650-1050nm, 1050-1650nm
- Diffraction-limited wavefront error: N8 @ 633 nm
- It is recommended to select YSenser's standard patch cords to improve the repeatability and consistency of the parameters
Applications
- Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
- Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
- Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
- Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
- Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
- Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9002.90.9500 |
| Estimated US Tariff: | 25% |
Frequently Asked Questions
What types of connectors are available for these products?
What is the wavelength range for these products?
What is the typical transmittance for these products?
What is the beam size specification for these products?
What are the divergence angle specifications?
What are the dimensions of the package?
Where is the manufacturer located?
