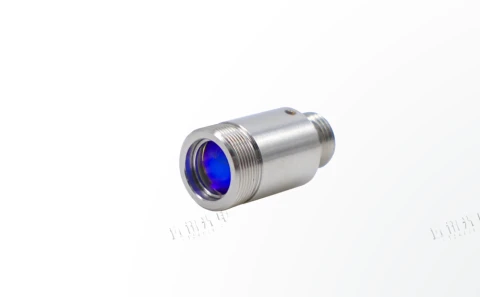

Achromatic Collimators with FC/PC Connector 405nm-1650nm

This achromatic collimator series consists of a group of long focal length collimating optical systems with chromatic aberration and distortion compensation design, making the focal length of the collimator insensitive to wavelength bandwidth. The divergent light beam emitted from the optical fiber, providing a good collimating effect and beam shape within a certain distance range. The optical surfaces of the lens group are coated with anti-reflection film to minimize surface reflection. The relative position of the lens and fiber is precisely adjusted to ensure that the deviation angle of the emitted light is within 0.3°, and standardized manufacturing processes ensure stable consistency of the product.

Achromatic Collimators FC/APC Connector 405nm-1650nm

Specifications

Center Wavelength: 520 nm
Bandwidth: 60 nm
Numerical Aperture: 0.37
Effective Focal Length (EFL): 10.09 mm
Wavelength Options (model Dependent): 400 - 1654 nm
Bandwidth (model Dependent): ±10 nm
Beam Waist (model Dependent): 0.87 - 3.95 mm
Divergence Angle (model Dependent): 0.014+0.01°~0.062+0.01°
EFL (model Dependent): 4.06 - 20.12 mm
Package Dia.: φ11mm
Max. Power: 2W @ Beam Size
Transmittance: >95%
Manufacturer Part Number (MPN): YSX-XXX-XXX-FC/APC
FindLight SKU: FL-23784

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Three  Connector  Options: FC/PC, FCAPC, SMA905
  • Compatible with Narrow and Wide Key Connectors
  • Compact structure
  • Convenient for installation
  • The focal length has little influence on the wavelength, thus facilitating  the  handling of adjacent wave- lengths
  • It is recommended to use it together with YSenser's  standard patch cords to   achieve better interchange- ability and repeatability

Applications

  • Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
  • Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
  • Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
  • Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
  • Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
  • Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices
