Description

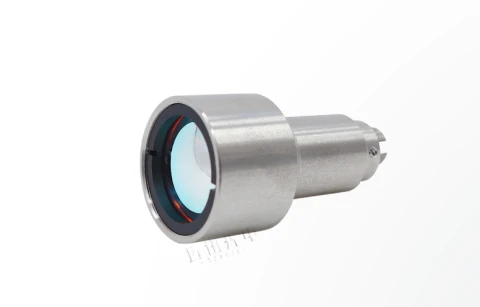

Large Beam Collimators for SM Fibers with SMA Connector
By using an air gap bonded lens, it can provide better beam quality than aspherical lenses and achromatic lenses in terms of collimation performance. The design of a low aberration lens group can achieve a beam closer to a Gaussian beam, with smaller divergence angles and smaller wavefront errors.
NOTE: Price does not include the destination country's customs duties and value-added tax (VAT).
Large Beam Collimators for SM Fibers SMA Connector
Specifications
| Wavelength: | 405 - 1654 nm |
|---|---|
| Bandwidth: | ±30 nm |
| Lens NA: | 0.24 - 0.27 (model dependent) |
| EFL: | 33.2 - 37.2 mm (model dependent) |
| Divergence Angle: | 0.10 - 0.30 mrad (model dependent) |
| Output Beam Size: | 5.0 - 8.6 mm ±10% (model dependent) |
| Transmittance: | ≥92% |
| Fiber Type: | 405HP, 460HP, 630HP, 780HP, Hi1060, Smf-28e |
| Connectors: | FC/PC, FC/APC, SMA905 |
| Manufacturer Part Number (MPN): | |
| FindLight SKU: |
Download Data Sheet
Features
- Three Connector Options: FC/PC, FC/APC, MA905
- Compatible with Narrow and Wide Key Connectors
- Compact structure
- Convenient for installation
- Custom options including wavelengths
- It is recommended to select Ysenser's standard patch cords to improve the repeatability and consistency of the parameters
Applications
- Free-Space Optical Systems
- Laser Delivery Systems
- Spectroscopy
- LIDAR and Remote Sensing
- Optical Metrology
- Biomedical and Imaging Systems
- Optical Testing and Characterization
- Machine Vision and Illumination
Frequently Asked Questions
What types of connectors are available for these products?
The products are available with FC/APC and FC/PC connectors.
What is the beam size range for these products?
The beam size ranges from 5.0 mm to 8.6 mm, with a tolerance of ±10%.
What is the wavelength range of these products?
The products cover a wavelength range from 405 nm to 1654 nm.
What is the typical transmittance of these products?
The typical transmittance is ≥92%.
What is the divergence angle range for these products?
The divergence angle ranges from 0.10 mrad to 0.30 mrad.
What input fiber types are used in these products?
The products use various Nufern fiber types, including 405HP, 460HP, 630HP, 780HP, Hi1060, and Smf-28e.
Where is the company located?
The company is located at Yifeng Chuangzhi Technology Valley, No. 1515 Fengxin Road, Fengxi New Town, Xixian New Area, Shaanxi Province, China.
Are customs duties, tariffs, value added tax (VAT) included in the price?
No, the listed price does not include any customs duties, tariffs, or the VAT.
