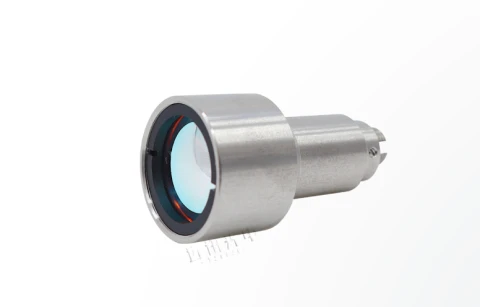

Large Beam Collimators for SM Fibers FC/APC Connector 405nm-1650nm

By using an air gap bonded lens, it can provide better beam quality than aspherical lenses and achromatic lenses in terms of collimation performance. The design of a low aberration lens group can achieve a beam closer to a Gaussian beam, with smaller divergence angles and smaller wavefront errors.

Large Beam Collimators for SM Fibers FC/APC Connector 405nm-1650nm

Visit the YSenser Store

Specifications

Center Wavelength: 980 nm
Bandwidth: 60 nm
Numerical Aperture: 0.25
Effective Focal Length (EFL): 36.4 mm
Wavelength Options (model Dependent): 405 - 1654 nm
Bandwidth (model Dependent): ±30 nm
Lens NA (model Dependent): 0.24 - 0.27
EFL (model Dependent): 33.2 - 37.2 mm
Divergence Angle (model Dependent): 0.10 - 0.30 mrad
Output Beam Size (model Dependent): 5.0 - 8.6 mm ±10%
Transmittance: ≥92%
Fiber Type: 405HP, 460HP, 630HP, 780HP, Hi1060, Smf-28e
Connectors: FC/PC, FC/APC, SMA905
Manufacturer Part Number (MPN): YSD-XXXX-XXXX-FC/APC
FindLight SKU: FL-23764

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Three Connector Options: FC/PC, FC/APC, MA905
  • Compatible with Narrow and Wide Key Connectors
  • Compact structure
  • Convenient for installation
  • Custom options including wavelengths
  • It is recommended to select YSenser's standard patch cords to improve the repeatability and consistency of the parameters

Applications

  • Free-Space Optical Systems
  • Laser Delivery Systems
  • Spectroscopy
  • LIDAR and Remote Sensing
  • Optical Metrology
  • Biomedical and Imaging Systems
  • Optical Testing and Characterization
  • Machine Vision and Illumination

Export & Trade Information

ECCN: EAR99
HTS Code: 9002.90.9500
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What types of connectors are available for these products?
The products are available with two types of connectors: FC/APC and FC/PC.
What is the wavelength range available for these products?
The products are available in wavelengths ranging from 405nm to 1654nm.
What is the typical beam size for these products?
The beam size varies by model, ranging from 5.0 mm to 8.6 mm, with a tolerance of ±10%.
What is the transmittance level of these products?
The transmittance level is typically greater than or equal to 92%.
What input fiber types are used in these products?
The input fiber types include Nufern 405HP, 460HP, 630HP, 780HP, Hi1060, and Smf-28e.
What is the divergence angle range for these products?
The divergence angle ranges from 0.10 mrad to 0.30 mrad, depending on the model.
Are customs duties, tariffs, value added tax (VAT) included in the price?
No, the listed price does not include any customs duties, tariffs, or the VAT.

Got more questions? Use the inquiry form to ask the supplier directly.
