Description

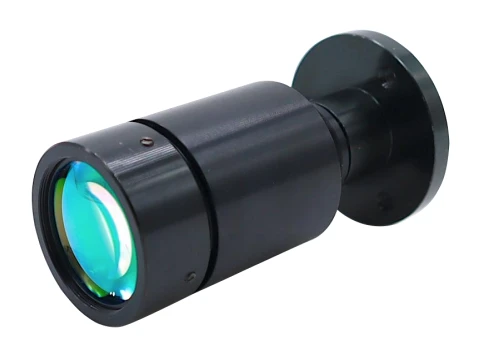

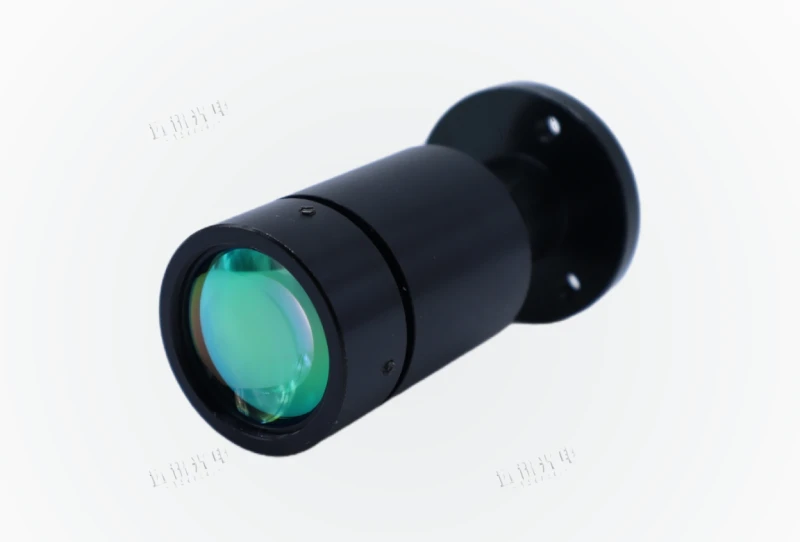

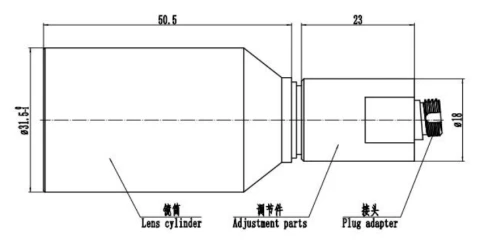

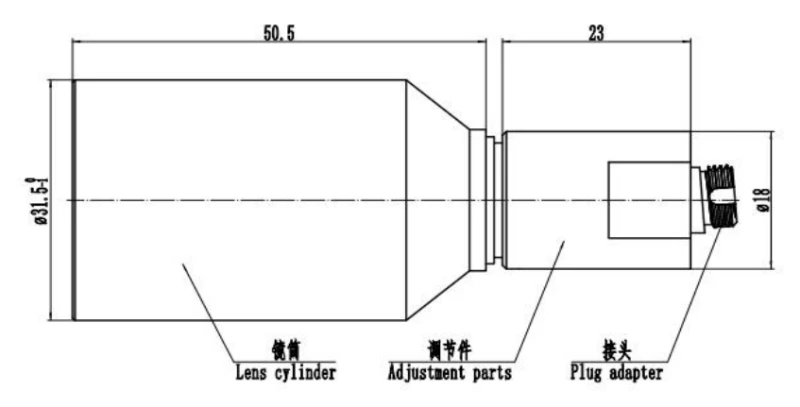

Long Distance Collimators For 100M FC/APC Connector 1200nm-1700nm
The fiber optic beam can be collimated and shaped for different lasers output through fiber optic connections, providing diffraction-limited performance at the design wavelength, with a collimation distance of up to 200 meters. The structure of this series of collimators is compact. Aberration correction is performed during design by selecting an air-spaced doublet lens series, which has excellent collimation effect and ability to couple space light. The effective focal length of the doublet lens depends on the wavelength. Therefore, this series of collimators should be used at the design wavelength for optimal performance.
Long Distance Collimators For 100M FC/APC Connector 1200nm-1700nm
Specifications
| Wavelength: | 400 - 1650 nm |
|---|---|
| Bandwidth: | ±30 nm |
| Waist Beam: | 10.2 - 15.2 mm |
| Divergence Angle: | 0.06 - 0.14 mrad |
| EFL: | 66.5 - 76.0 mm |
| Fiber Type: | 405HP, 460HP, 630HP, 780HP, 980HP, Smf-28e |
| Connectors: | FC/PC FC/APC |
| Transmittance: | ＞92% |
| Manufacturer Part Number (MPN): | YSD-XXXX-XXXX-FC/APC |
| FindLight SKU: | FL-23781 |
Download Data Sheet
Features
- Three Connector Options: FC/PC, FCAPC, SMA905
- Maintain good collimation characteristics within a range of 200 meters
- Compact structure
- Convenient for installation
- Custom Options including wavelengths
- It is recommended to select YSenser's standard patch cords to improve the repeatability and consistency of the parameters
Applications
- Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
- Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
- Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
- Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
- Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
- Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9002.90.9500 |
| Estimated US Tariff: | 25% |
Frequently Asked Questions
What types of connectors are available for these products?
The products are available with two types of connectors: FC/APC and FC/PC.
What is the wavelength range for these products?
The products cover a range of wavelengths including 405nm, 450nm, 520nm, 635nm, 780nm, 850nm, 905nm, 980nm, 1064nm, 1310nm, 1550nm, and 1650nm, each with a bandwidth of ±30nm.
What is the transmittance rate of these products?
The transmittance rate is ≥92% for the specified products.
What is the beam divergence angle for these products?
The beam divergence angle varies between 0.06mrad and 0.14mrad, depending on the specific product model.
What is the beam size specification for these products?
The beam size is specified as 10.2mm to 15.2mm with a tolerance of ±10%, depending on the model.
What fiber types are used in these products?
The products use different fiber types including Nufen 405HP, Nufen 460HP, Nufen 630HP, Nufen 780HP, Corning Hi1060, and Corning Smf-28e.
