Description

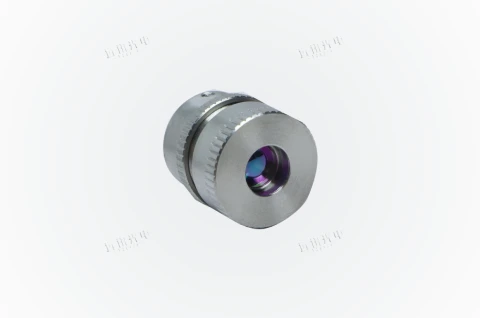

Adjustable Aspheric Collimators FC/APC Connector 4.5mm, 7.5mm, 11mm EFL
It is engineered with a spring-fitted optical lens housed within its mechanical structure. It serves to collimate the fiber-emitted light beam and can also be utilized for coupling spatial light into the fiber. By rotating the outer sleeve off the collimator, the internal optical lens can be precisely translated along the vertical axis direction. This translation enables the adjustment of the distance between the lens and the fiber end face, thereby achieving different light spot sizes. Once the optimal position is attained, the housing knurled locking ring can be employed to fix the regulator firmly.
Adjustable Aspheric Collimators FC/APC Connector 4.5mm, 7.5mm, 11mm EFL
Specifications
| Connectors: | FC/APC |
|---|---|
| Transmittance: | ≥95% |
| Max. Power: | 1W/mm^2 |
| Wavelength: | 400 - 1700nm |
| EFL: | 4.5 - 11 mm |
| Manufacturer Part Number (MPN): | YSA-XXX-XXX-FC/APC |
| FindLight SKU: | FL-23783 |
Download Data Sheet
Features
- Connecting fiber collimated output or coupling free space collimated light into fiber
- Three Focal Length Options: 4.5 mm, 7.5 mm, 11 mm
- Adjustment alignment error: <15 mrad
- Three Connector Options: FC/PC, FC/APC, SMA905
- Three AR-Coated Aspheric Lens Options: 400-700nm, 650-1050nm, 1050-1650nm
- When used in combination with YSenser's standard jumpers, it can improve coupling efficiency and ensure good repeatability
Applications
- Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
- Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
- Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
- Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
- Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
- Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9002.90.9500 |
| Estimated US Tariff: | 25% |
Frequently Asked Questions
What are the available connector types for these lenses?
The available connector types are FC/APC and FC/PC.
What is the typical wavelength range for the YSA-VIS series?
The typical wavelength range for the YSA-VIS series is 400~700nm.
What is the maximum power handling capability of these lenses?
The maximum power handling capability is 1W/mm².
What is the far-field divergence angle for the YSA-SWIR-F4.5 series?
The far-field divergence angle for the YSA-SWIR-F4.5 series is 2.30 mrad.
What is the typical transmittance of these lenses?
The typical transmittance is ≥95%.
What is the input fiber mode field diameter (MFD) for the YSA-NIR-F7.5 series?
The input fiber MFD for the YSA-NIR-F7.5 series is 5 um.
What are the dimensions of the lens package?

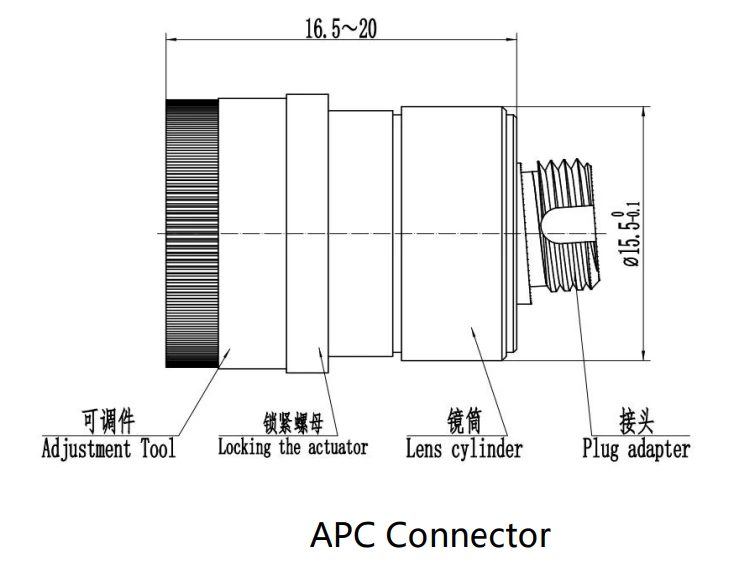

The dimensions of the lens package are φ15.5mm*L20 (Max. Length).
