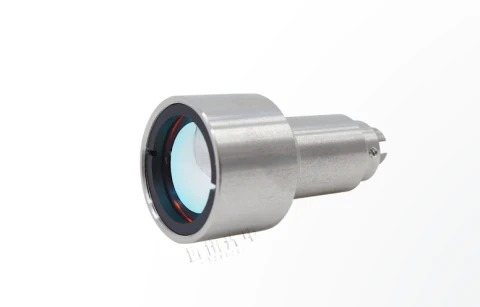

Large Beam Collimators for MM Fibers SMA Connector 450nm-1550nm
By using an air gap bonded lens, this collimator can provide better beam quality than aspherical lenses and achromatic lenses in terms of collimation performance. The design of a low aberration lens group can achieve a beam closer to a Gaussian beam, with smaller divergence angles and smaller wavefront errors.
Large Beam Collimators for MM Fibers SMA Connector 450nm-1550nm
Specifications
| Wavelength: | 450 - 1550 nm |
|---|---|
| Bandwidth: | ±30 nm |
| Beam Waist Diameter: | 14.6 - 19.4 mm |
| Divergence Angle: | 2.3 - 12.5 mrad |
| EFL: | 33.5 - 37.1 mm |
| NA (Lens): | 0.25, 0.26, 0.27 |
| Fiber Type:: | 62.5/125; 200/220; 400/440; 105/125; 200/220; 400/440 |
| Connectors:: | FC/PC SMA 905 |
| Transmittance: | ＞92% |
| Manufacturer Part Number (MPN): | YSD-XXX-XXXX-SMA |
| FindLight SKU: | FL-23763 |
Download Data Sheet
Features
- Three Connector Options: FC/PC, FC/APC, SMA905
- Compatible with Narrow and Wide Key Connectors
- Compact structure
- Convenient for installation
- Custom options including wavelengths
- It is recommended to select YSenser's standard patch cords to improve the repeatability and consistency of the parameters
Applications
- Free-Space Optical Systems
- Laser Delivery Systems
- Spectroscopy
- LIDAR and Remote Sensing
- Optical Metrology
- Biomedical and Imaging Systems
- Optical Testing and Characterization
- Machine Vision and Illumination
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9002.90.9500 |
| Estimated US Tariff: | 25% |
Frequently Asked Questions
What wavelengths are available for the YSD series products?
The YSD series products are available in the following wavelengths: 450nm, 488nm, 520nm, 633nm, 780nm, 850nm, and 1064nm.
What is the transmittance of the YSD series products?
The transmittance of the YSD series products is ≥92% for certain models, ensuring high efficiency in light transmission.
What are the divergence angles of the YSD series?
The divergence angles of the YSD series range from 2.2mrad to 12.8mrad, depending on the specific model.
What is the input fiber type for YSD series products?
The input fiber types vary among models, including 62.5/125, 105/125, 200/220, and 400/440.
What is the beam size range for the YSD series?
The beam size for the YSD series ranges from approximately 14.6mm to 19.4mm, with a tolerance of ±10%.
What lens numerical aperture (NA) values are available in the YSD series?
The lens numerical aperture (NA) values for the YSD series are either 0.27 or 0.22, depending on the model.
What is the typical package size for the YSD series products?
The typical package size for YSD series products is around Φ24*L39mm to Φ24*L42mm, depending on the model.
Are customs duties, tariffs, value added tax (VAT) included in the price?
No, the listed price does not include any customs duties, tariffs, or the VAT.
