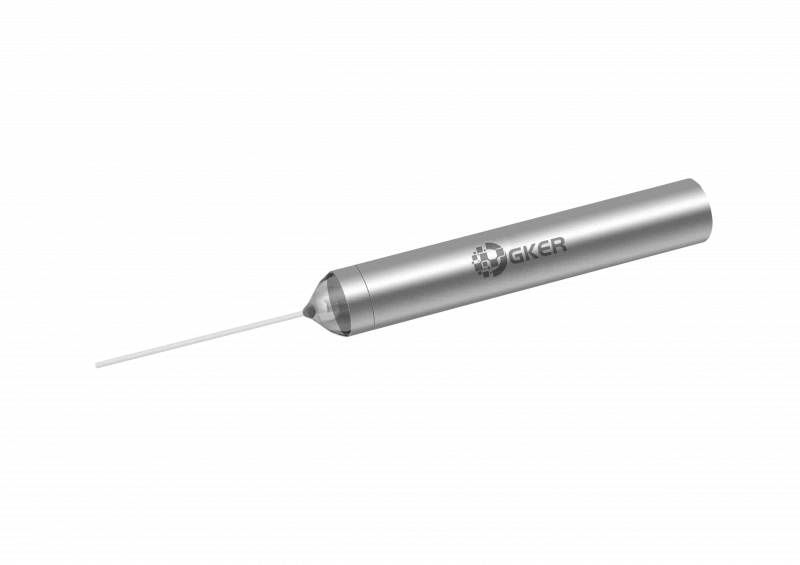

The GKER Photonics Multimode Dual Fiber Collimator (GK-MMC Series) is an essential component in fiber optic systems, designed to efficiently align and focus light into multimode fibers. It serves as the fundamental building block for in-line fiber optic components such as isolators and FWDMs, where precise light collimation is critical for optimal system performance. This collimator is engineered to deliver low insertion loss and high return loss, ensuring minimal signal degradation and maximum reflection efficiency.
The GK-MMC Series features a robust design that can handle high optical power levels, thanks to its advanced processing techniques and high-quality anti-reflective (AR) coating. The collimator is compatible with various multimode fiber types, including 105/125, 62.5/125, and 50/125 µm fibers, making it versatile for a wide range of applications. It is available with customizable options for lens diameter, working distance, connector type, and fiber core, allowing for tailored solutions to meet specific requirements.
Multimode Dual Fiber Collimator
Specifications |
|
|---|---|
| Center Wavelength (λc): | 1310, 1550, or, specified nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Working Distance: | 0 or 5 mm |
| Typ. Insertion Loss: | 0.20 dB |
| Max. Insertion Loss: | 0.25 dB |
| Min. Return Loss: | 35 dB |
| Max. Tensile Load: | 5 N |
| Fiber Type: | Multimode Fiber 105/125, 62.5/125, 50/125 µm, or specified - |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Low Insertion Loss: Ensures efficient light transmission with a typical loss of only 0.20 dB
- High Return Loss: Provides excellent signal reflection with a minimum return loss of 35 dB
- High Power Handling: Capable of managing high optical power levels, suitable for demanding applications
- Customizable Design: Offers flexibility with various options for lens diameter, working distance, and fiber core size
- Durable Construction: Built to withstand environmental variations, with an operating temperature range of -5°C to +70°C
Applications
- Optical Communication Systems: Ideal for integrating into multimode optical networks for efficient signal transmission
- Fiber Optic Sensing: Suitable for use in sensing applications requiring precise light collimation and alignment
- Laser Systems: Compatible with high-power laser applications where low insertion loss and high return loss are critical
Frequently Asked Questions
The typical insertion loss for the GK-MMC Series is 0.20 dB, ensuring efficient light transmission.
The minimum return loss is 35 dB, providing excellent signal reflection and minimizing back reflections.
The collimator is compatible with multimode fibers such as 105/125, 62.5/125, and 50/125 µm fibers.
The working distance options for the GK-MMC Series are 0 mm and 5 mm, depending on the lens type used.
Yes, the GK-MMC Series is designed to handle high optical power levels, making it suitable for demanding applications.
Customization options include lens diameter, working distance, connector type, and fiber core size.
The operating temperature range is from -5°C to +70°C, ensuring reliable performance in various environments.
Yes, it is compatible with high-power laser applications where low insertion loss and high return loss are critical.
The high-quality AR coating enhances the collimator's ability to handle high power and reduces reflections.
The GK-MMC Series can withstand a maximum tensile load of 5 N, ensuring durability and stability in operation.
