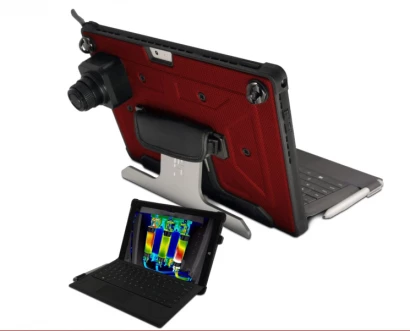

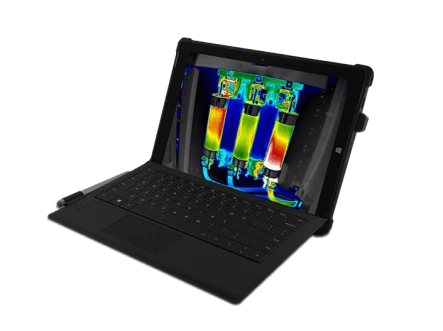

IR-Pad 320 Electrical Infrared Camera

Specifications

Camera Type: Scientific, Security
Array Type: Not Specified
Spectral Band: 7 – 14 um
# Pixels (Height): 320
# Pixels (Width): 240
Pixel Pitch: 17 um
Array Cooling: Uncooled
Document icon Download Data Sheet Download icon

Features


  • High-Resolution Thermal Imaging: 320x240 pixel UFPA (VOx) detector for clear and accurate visuals

  • All-in-One IR Tablet System: Combines imaging, analysis, and reporting in a single device

  • Dual Temperature Range: Enhanced flexibility for varied electrical applications

  • IR Flash Pro Software: Built-in analysis and reporting with user-friendly touch interface

  • Multiple Color Palettes: 8 customizable palettes including B&W and Iron

  • Widescreen Display: 12" multi-touch screen with 2160x1440 resolution

  • Ruggedized for Field Use: Shock- and vibration-resistant casing with protective tablet case

  • Connectivity Options: Wi-Fi, Bluetooth 4.0, USB, HD video out, and Micro HDMI

  • High Storage Capacity: 128 GB solid-state drive for image and video storage

  • Optional Lens Selection: Wide FOV and telephoto lens options for diverse inspection needs

Applications


  • Electrical Inspections: Detect overheating components and loose connections

  • Predictive Maintenance: Monitor systems to prevent failures before they occur

  • Substation & Pole Monitoring: Evaluate equipment health in power distribution systems

  • Transformer Analysis: Identify dry transformer degradation or failure risk

  • Underground Electrical Diagnostics: Locate cable faults and assess insulation integrity

  • HVAC & Cold Storage Systems: Ensure operational efficiency and detect thermal anomalies

  • Scientific Research: Analyze thermal behavior in experimental settings

  • Home & Contractor Inspections: Ideal for residential electrical assessments
