Bobcat 320 Gated Series
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Belgium
-
Sold by:
-
On FindLight:
since 2020
Description

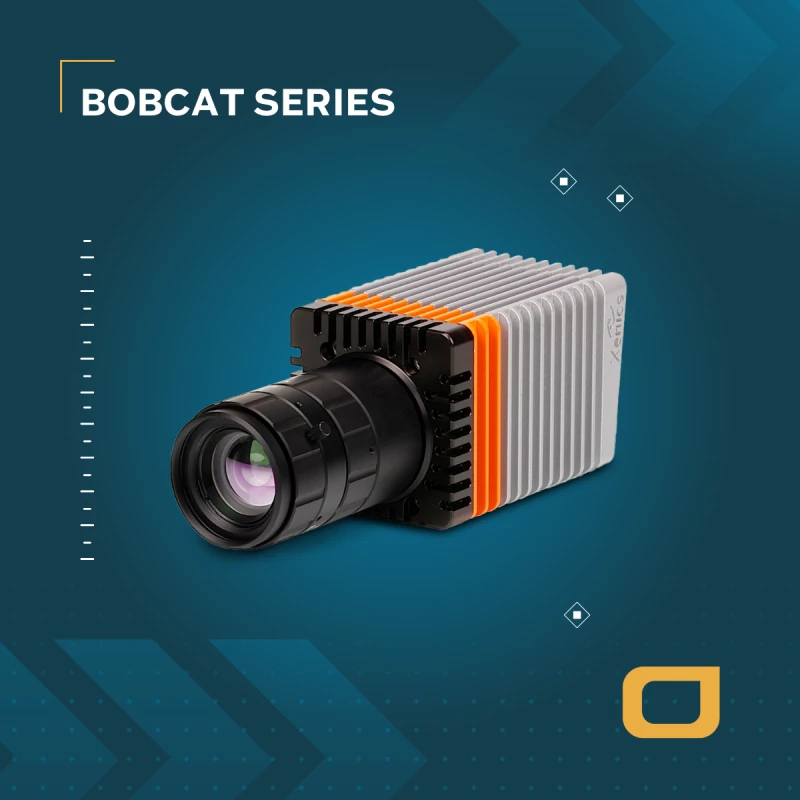

The Bobcat 320 Gated Series is an innovative solution for those seeking a compact and efficient imaging device. This small InGaAs camera is specifically designed for short exposures, making it ideal for applications that require high-speed data acquisition and processing. With a maximum frame rate of up to 400 Hz, the Bobcat 320 Gated Series ensures that you capture every detail with precision and clarity.
At the heart of the Bobcat 320 Gated Series is a temperature-stabilized InGaAs detector featuring a 320 x 256 pixel resolution. This advanced detector technology allows for configurable exposure times ranging from 100 ns to 1 ms in 100 ns increments, or from 1 ms to 40 ms. This flexibility ensures that users can tailor the camera's performance to their specific needs, whether they are capturing fast-moving objects or conducting detailed analysis.
Designed with ease of use in mind, the Bobcat 320 Gated Series offers both CameraLink and GigE Vision interfaces, providing versatility in connectivity options. Its compact and lightweight design, with dimensions of 55 mm x 55 mm x 72 mm or 82 mm, and a weight of 285 gr or 334 gr, makes it easy to integrate into various setups. The camera's robust construction and advanced features make it a reliable choice for professionals seeking high-performance imaging solutions.
Bobcat 320 Gated Series
Specifications |
|
|---|---|
| Camera Type: | Scientific, Security, Industrial |
| Array Type: | InGaAs |
| Spectral Band: | 0.9 – 1.7 um |
| # Pixels (Height): | 320 |
| # Pixels (Width): | 256 |
| Pixel Pitch: | 20 um |
| Array Cooling: | Uncooled |
Features
- Compact and Lightweight: Designed for easy integration, the camera measures 55 mm x 55 mm x 72 mm or 55 mm x 55 mm x 82 mm and weighs 285 gr or 334 gr.
- High Frame Rate: Capable of delivering up to 400 Hz, providing excellent performance for fast imaging applications.
- Flexible Exposure Times: Configurable exposure times from 100 ns to 1 ms in 100 ns steps, or from 1 ms to 40 ms, allowing for versatile imaging solutions.
- Advanced InGaAs Detector: Features a temperature-stabilized InGaAs detector with a 320 x 256 pixel resolution for high-quality imaging.
- Multiple Interface Options: Available with CameraLink or GigE Vision interfaces for seamless connectivity.
- Optical Interface: Compatible with C-mount or M42 lenses, offering flexibility in optical configurations.
- Low Power Consumption: Operates efficiently with a power consumption of 2.8 W (without TE cooler) or 4 W (with TE cooler), powered by a DC 12 V supply.
- Wide Spectral Range: Covers a spectral range of 900 - 1700 nm, suitable for a variety of applications.
- Snapshot - Global Shutter: Utilizes a snapshot - global shutter integration type for capturing fast-moving scenes without motion blur.
Applications
- Industrial Inspection: Utilize the high frame rate and spectral range for non-destructive testing and quality assurance in manufacturing processes.
- Scientific Research: Ideal for capturing fast events in scientific experiments due to its configurable exposure time and high sensitivity.
- Surveillance and Security: Use the camera's compact size and high-speed capabilities for advanced surveillance applications.
- Medical Imaging: Suitable for specialized imaging applications in the medical field, thanks to its precise sensor and spectral sensitivity.
- Astronomy: Capture short exposure images of celestial events with high accuracy using the camera's global shutter and temperature stabilization.
- Machine Vision: Enhance automated visual inspection systems with the camera's high-resolution and fast processing capabilities.
Frequently Asked Questions
The camera is designed for use in machine vision, scientific and advanced research, safety and security, and process monitoring.
The exposure time of the sensor is configurable from 100 ns up to 1 ms in steps of 100 ns, or from 1 ms to 40 ms.
The camera is able to provide maximum frame rates up to 400 Hz.
The camera has a resolution of 320 x 256 pixels.
The camera comes with either CameraLink or GigE Vision interface.
