SenS 1920

Name: SenS 1920
Brand: New Imaging Technologies (NIT)
Availability: InStock

Description

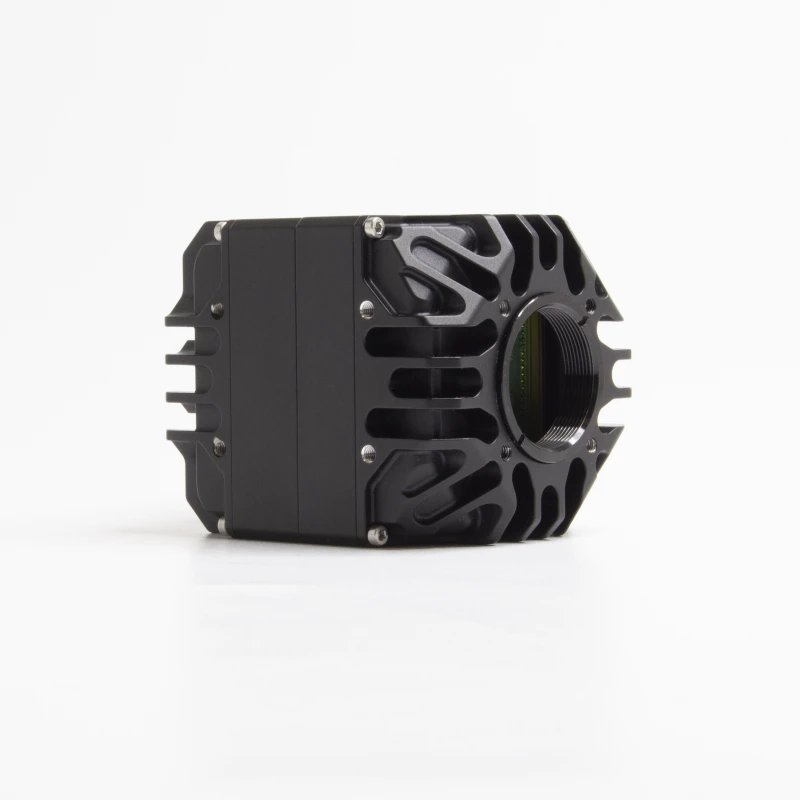

This SWIR camera features ultra-low-noise performance at 25e- with Full HD resolution, designed to meet various industries’ rigorous demands and offer unparalleled imaging quality and precision.

Specifications

Camera Type:	Scientific, Other, Military, Security, Industrial
Array Type:	InGaAs
Spectral Band:	0.9 – 1.7 um
# Pixels (Height):	1920
# Pixels (Width):	1080
Pixel Pitch:	8 um
Array Cooling:	Uncooled
Resolution:	1920x1080 pixels
Pixel Size:	8 µm x 8 µm
Spectral Response:	0.9 to 1.7 µm
Sensor Material:	InGaAs
Frame Rate:	up to 60Hz full frame
Sensor Noise:	typ. 25e-
Output:	USB3.0, CameraLink
Dimensions:	58 x 58 x 70 mm
Weight:	<400g
QE:	>80% LG

Download Data Sheet

Features

High Sensitivity Full HD SWIR camera

NIT’s NSC2101 low-noise focal plane array, designed and manufactured by NIT

Full HD resolution – 1920x1080px @8µm pixel pitch

Linear response mode: High sensitivity

Read-out noise 25e-

USB 3.0, CameraLink

Applications

Intelligence, Surveillance, and Reconnaissance (ISR)

Semiconductor, Wafer, and Solar Panel Inspection

Add to Watchlist (My Watchlist)

Ships from:

France

Sold by:

New Imaging Technologies (NIT)

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the resolution of the SenS 1920 camera?

The SenS 1920 camera has a resolution of 1920x1080 pixels, which is equivalent to 2 megapixels.

What is the spectral range of the SenS 1920 camera?

The SenS 1920 camera has a spectral response range from 900nm to 1700nm, covering the short-wave infrared (SWIR) spectrum.

What are the output interfaces available for the SenS 1920 camera?

The SenS 1920 camera supports USB 3.0 and CameraLink as output interfaces.

What is the frame rate capability of the SenS 1920 camera?

The SenS 1920 camera can achieve a frame rate of up to 60Hz in full frame mode.

What is the sensor material used in the SenS 1920 camera?

The sensor material used in the SenS 1920 camera is InGaAs (Indium Gallium Arsenide).

What is the typical read-out noise for the SenS 1920 camera?

The typical read-out noise for the SenS 1920 camera is 25 electrons (25e-).

What software and development kits are compatible with the SenS 1920 camera?

The SenS 1920 camera is compatible with NITVision GUI and SDKs for x86-64 & Arm64 architectures, supporting C++, C#, and Python programming languages.
