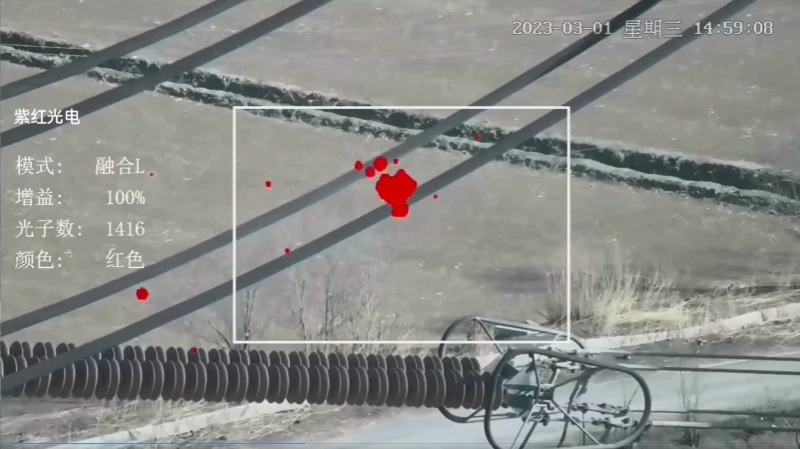

**Visualizing Discharge Viewing Temperature with UVIRSYS** The ZH580-UAV-S is a cutting-edge multi-spectral imaging system designed to revolutionize the way we visualize discharge and monitor temperature anomalies. This advanced system is integrated with ultraviolet (UV), infrared (IR), visible light, and laser technologies, offering a comprehensive solution for precise diagnostics. Its lightweight and compact design make it an ideal choice for drone applications, ensuring quick deployment and efficient operation in various environments.

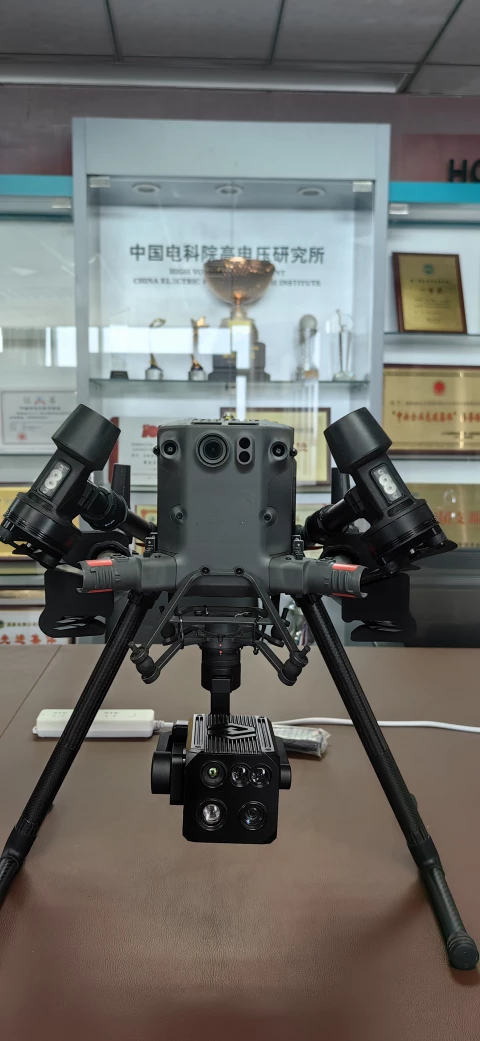

Developed on the PSDK platform, the ZH580-UAV-S seamlessly integrates with mainstream drones like the M300RTK. This integration allows for high-precision image registration, enabling the system to accurately detect and locate corona discharges, temperature anomalies, and other defects. The fusion of images from multiple spectral channels enhances diagnostic accuracy, reduces false alarms, and improves detection efficiency. The ZH580-UAV-S is particularly well-suited for industries such as power transmission and distribution, railway line monitoring, substation inspections, and forest fire prevention. Its robust design ensures excellent shock resistance and stability, making it reliable even in challenging conditions.

With its advanced multi-spectral imaging capabilities, the ZH580-UAV-S sets a new standard in aerial inspection and monitoring, providing unparalleled insights into the health and safety of critical infrastructure.

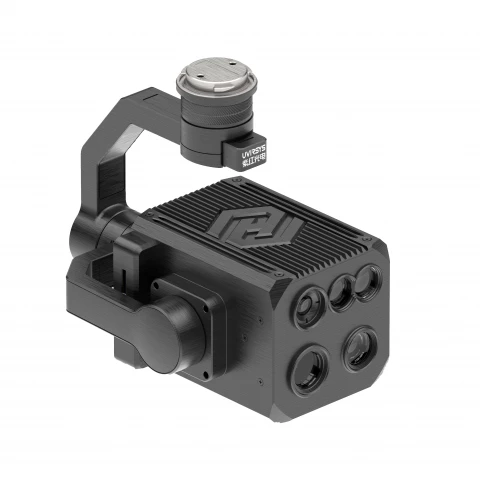

ZH580-UAV-S 3-in-1 Camera for Drones UV+IR+VIS

Specifications

Camera Type: Industrial
Array Type: Vanadium Oxide (VOx) Microbolometer
Spectral Band: 0.24 – 14 um
# Pixels (Height): 720
# Pixels (Width): 1280
Pixel Pitch: 12 um
Array Cooling: Uncooled
UV Wavelength Range: 240~280 nm
Discharge Sensitivity: 1Pc @10 m
RIV Sensitivity: 3.6 dBμV(RIV) @ 1 MHz@10 m
UV Sensitivity: 2.0Ɨ10^-18 watt/cm^2
Focus: Auto focus 1.5m- āˆž
Sensitivity: 0.1 Lux
Optical Zoom: 28x
Digital Zoom: 12x
Overlay Accuracy: ≤ 1mrad
IR Wavelength Band: 8-14µm
Temperature Range: -20 ā„ƒā€” +400 ā„ƒ
Temperature Accuracy: ±2 ā„ƒ /±2 %
Dimensions (Main Unit): 141Ɨ144Ɨ127 mm
Weight (Main Unit): 1.5 kg
Protection Level: IP54
Drone Dimensions (Unfolded): 810Ɨ670Ɨ430 mm
Drone Dimensions (Folded): 430Ɨ420Ɨ430 mm
Flight Altitude: 5000 m
Wind Resistance: 15 m/s
Flight Time: 55 min

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 4-in-1 Multi-Spectral Integration: Combines UV, IR, VIS, and laser ranging in one compact system.
  • High Sensitivity Detection: Detects corona discharges, temperature anomalies, and structural defects with precision.
  • Advanced Pan-Tilt System: Excellent shock resistance, fast docking, and stable aerial operation.
  • Lightweight & Portable: Weighs only 900 g with pan-tilt for easy UAV integration.
  • High Imaging Accuracy: Fused multi-spectral imaging with ≤1 mrad overlay precision.
  • Flexible Display Modes: Supports UV, IR, VIS, and combined imaging options for diagnosis.
  • Durable Design: IP54-rated protection ensures reliable performance in harsh environments.
  • Comprehensive Data Capture: Supports photo/video formats, temperature alarms, GPS data, and real-time UAV control.

Applications

  • Power Transmission & Distribution Lines: Detect corona discharges and hot spots for predictive maintenance.
  • Railway Inspection: Identify equipment anomalies to ensure safe and efficient railway operations.
  • Substation Monitoring: Enhance detection of temperature and discharge issues in high-voltage equipment.
  • Forest Fire Prevention: Monitor hotspots and early fire indicators using IR and VIS fusion imaging.
  • UAV-Based Maintenance Services: Expand operational efficiency for aerial asset monitoring across industries.

Frequently Asked Questions

What is the ZH580-UAV-S?
The ZH580-UAV-S is a drone-carried multi-spectral imaging system with high integration of UV, IR, visible, and laser technologies. It is designed for applications such as UAV transmission and distribution lines, railway lines, substations, forest fire prevention, and operation and maintenance services.
What are the key features of the ZH580-UAV-S?
Key features include a standard pan-tilt with excellent shock-resistance, high integration of UV, IR, visible, and laser technologies, individual operation, multi-spectral joint diagnosis, secured equipment, and good after-sale service. It also offers a drone pilot and UV photography certificate.
What is the purpose of the multi-spectral joint diagnosis?
The multi-spectral joint diagnosis combines different imaging technologies to improve diagnostic accuracy and detection efficiency, reducing false alarm rates and missed detections.
What are the specifications of the UV channel?
The UV channel has a wavelength range of 240-280 nm, discharge sensitivity of 1Pc @10 m, RIV sensitivity of 3.6 dBμV(RIV) @ 1 MHz@10 m, UV sensitivity of 2.0Ɨ10^-18 watt/cm², and a field of view of 12.6° Ɨ7.2°.
What imaging modes are supported by the ZH580-UAV-S?
The ZH580-UAV-S supports six imaging modes: UV, IR, visible light, and fusion images. It also supports image overlay with an accuracy of ≤ 1mrad.
What are the physical characteristics of the ZH580-UAV-S?
The main unit dimensions are 141Ɨ144Ɨ127 mm, and it weighs 1.5 kg. It has an IP54 protection rating and comes with a standard configuration of a pan-tilt, main unit, 64G storage card, card reader, manual, and a portable case.
What are the drone specifications when equipped with the ZH580-UAV-S?
The drone has dimensions of 810Ɨ670Ɨ430 mm when expanded and 430Ɨ420Ɨ430 mm when folded. It weighs 3.6 kg without the battery and 6.3 kg with the battery. It can carry a payload of 2.7 kg, fly at an altitude of 5000 m, withstand wind speeds of 15 m/s, and has a flight time of 55 minutes.
