X-Ray and EUV Cameras

Photonic Science X-ray Laue Back-Scattered Camera
Photonic Science and Engineering
Add to watch list
Photonic Science X-ray Laue Back-Scattered Camera
Compare
The high resolution Laue X-ray camera allows a digital Laue diffraction pattern to be recorded with a resolution of 2774 x 1843 pixels and 14-bit digitization. The X-ray passes through the camera and is collimated down < 1mm diameter. The active area input dimension is similar to that of Polaroid ...

Specifications
Sensor Type: CCD
Detection Method: Indirect Detection
# Pixels (Width): 2774
# Pixels (Height): 1843
Pixel Size (Square): 64 um
...
Data Sheet

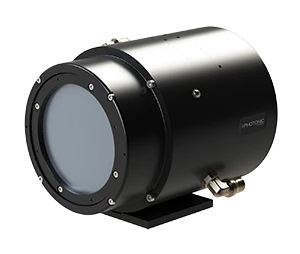

Photonic Science X-ray sCMOS 37.7MP 1:1 Detector
Photonic Science and Engineering
Add to watch list
Photonic Science X-ray sCMOS 37.7MP 1:1 Detector
Compare
The detector offers a 61.44mm x 61.44mm square active area, with straight 1:1 fiber optic coupling to a 37.7 megapixel resolution sCMOS sensor. A custom scintillator is deposited onto the camera in order to allow 1keV up to 100keV. The X-ray sCMOS detector delivers up to 11 fps full resolution allowing real time ...

Specifications
Sensor Type: CMOS
Detection Method: Indirect Detection
# Pixels (Width): 6144
# Pixels (Height): 6144
Pixel Size (Square): 10 um
...
Data Sheet
X-Ray sCMOS 16MP Detector
Photonic Science and Engineering
Add to watch list
X-Ray sCMOS 16MP Detector
Compare
The sCMOS 16MP Detector offers up to 95.5mm x 95.5mm active area and 16 megapixel resolution. A custom scintillator is deposited onto the camera in order to allow 1keV up to 300keV. Array versions with multiple modules are also available, delivering up to 64 megapixel resolution. The X-ray sCMOS detector delivers up to 4.5 fps full ...

Specifications
Sensor Type: Phosphor Coated CMOS
Detection Method: Direct Detection
# Pixels (Width): 4096
# Pixels (Height): 4096
Pixel Size (Square): 9 um
...
Data Sheet
X-Ray FDS Detector 1.41MP
Photonic Science and Engineering
Add to watch list
X-Ray FDS Detector 1.41MP
Compare
The X-ray FDS is a high resolution (1392×1040 pixels), X-ray digital detector with direct coupled (micro) fiber-optic input that protects the sensor against radiation damage. The detector offers up to 50mm x 40mm active area and 6 megapixel resolution. A custom scintillator is deposited onto the camera in order to allow 12keV up to ...

Specifications
Sensor Type: Phosphor Coated CMOS
Detection Method: Direct Detection
# Pixels (Width): 1360
# Pixels (Height): 1040
Pixel Size (Square): 6.45 um
...
Data Sheet

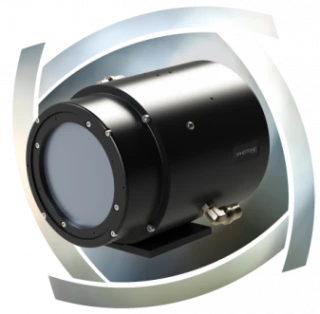

X-Ray sCMOS 4MP Detector
Photonic Science and Engineering
Add to watch list
X-Ray sCMOS 4MP Detector
Compare
The sCMOS 4MP Detector offers up to 67mm x 67mm active area and 4 megapixel resolution. A custom scintillator is deposited onto the camera in order to allow 1keV up to 55keV operation. Array versions with multiple modules are also available, delivering up to 16 megapixel resolution. The X-ray sCMOS detector delivers up to 18 fps ...

Specifications
Sensor Type: Phosphor Coated CMOS
Detection Method: Direct Detection
# Pixels (Width): 2048
# Pixels (Height): 2048
Pixel Size (Square): 11 um
...
Data Sheet
Sydor Spectro CCD
Sydor Instruments LLC
Add to watch list
Sydor Spectro CCD
Compare
In RIXS, it is critical that every photon capable of being detected, is detected with the highest spectral discrimination possible. Sydor offers the smallest resolution, provided by a 5 um pixel mated to the lowest noise and highest QE, for direct x-ray detection - even for the ultra soft x-ray regime. In RIXS experiments the ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 1920
# Pixels (Height): 960
Pixel Size (Square): 5 um
...
Data Sheet
Sydor Fast CCD
Sydor Instruments LLC
Add to watch list
Sydor Fast CCD
Compare
The Sydor Fast CCD is a revolutionary high speed, ultra-high QE, low noise camera used to detect soft x-rays. Direct detection eliminates the risk of signal loss, often encountered when converting x-ray into signals detectable by visible cameras. Sydor’s Fast CCD offers these benefits, along with ~100x faster image acquisition than ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 1920
# Pixels (Height): 960
Pixel Size (Square): 30 um
...
Data Sheet
iKon-L HF - Revolutionary 4 megapixel, High-Sensitivity CCD Platform
SnowHouse Solutions Inc
Add to watch list
iKon-L HF - Revolutionary 4 megapixel, High-Sensitivity CCD Platform
Compare
Andor’s iKon-L HF outstanding design is built for scientific imaging! The outstanding design brings together the key elements in a single optimized format; the highest QE (95%) Back-illuminated sensor, a single directly bonded FOP and a unique spring-loaded “Soft Dock” interface. This design delivers the highest ...

Specifications
Sensor Type: CCD
Detection Method: Indirect Detection
# Pixels (Width): 2048
# Pixels (Height): 2048
Pixel Size (Square): 13.5 um
...
Data Sheet
iKon-M SO High Energy Detection
SnowHouse Solutions Inc
Add to watch list
iKon-M SO High Energy Detection
Compare
Andor’s iKon series offers outstanding sensitivity performance through a combination of > 95% QE back-illuminated sensors, low noise readout electronics and industry-leading, maintenance-free deep TE-cooling down to -100°C. It features high resolution 1 and 4.2 Megapixel large area sensor options (with 13 and 13.5 ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 1024
# Pixels (Height): 1024
Pixel Size (Square): 13 um
...
Zyla Fiber Optic sCMOS High Energy Detection At 100 fps
SnowHouse Solutions Inc
Add to watch list
Zyla Fiber Optic sCMOS High Energy Detection At 100 fps
Compare
Andor’s Zyla-HF outstanding design delivers the highest transmission and spatial resolution performance associated with state-of-the-art single fibre optic plate bonding, while also taking advantage of the very fast frame rate, ultra-low noise performance and exceptional field of view of the Zyla-HF. Its compact format, ...

Specifications
Sensor Type: CMOS
Detection Method: Indirect Detection
# Pixels (Width): 2560
# Pixels (Height): 2160
Pixel Size (Square): 6.5 um
...
Stripline Imagers For X-rays Introduction
Kentech Instruments
Add to watch list
Stripline Imagers For X-rays Introduction
Compare
These imagers use MCP gating to provide shuttering contrast. The phosphor is maintained at a constant potential behind the MCP. This technique offers very high speed operation (below 30ps has been achieved by some users), a high extinction ratio and good sensitivity, sometimes augmented by a second continuously run MCP behind the ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): --
# Pixels (Height): --
Pixel Size (Square): -- um
...
Data Sheet
X-Scan Imaging L-Shaped X-Ray LDA Camera XL8804-16-12-1×4
X-Scan Imaging Corp
Add to watch list
X-Scan Imaging L-Shaped X-Ray LDA Camera XL8804-16-12-1×4
Compare
The X-Scan Imaging XL8800 series of x-ray L-shape line-scan cameras offer high performance for xray scanning applications using panoramic x-ray sources. At the heart of a XL8800 camera are X-Scan Imaging’s CMOS silicon imaging detector array chips providing wide dynamic range and solid-state reliability. A wide selection of ...

Specifications
Sensor Type: CMOS
Detection Method: Direct Detection
# Pixels (Width): 2000
# Pixels (Height): 1
Pixel Size (Square): 1 um
...
Data Sheet
X-ray Time Delay Integration CCD Camera XTI12848-004
X-Scan Imaging Corp
Add to watch list
X-ray Time Delay Integration CCD Camera XTI12848-004
Compare
Time Delay Integration (TDI) is a special image acquisition method that is used for in-line inspection application that requires highspeed, high sensitivity and high resolution. XTI12848 TDI camera is designed for long life with a Fiber Optic Plate that separates the sensor from the X-Ray path. X-Scan Imaging can help users select ...

Specifications
Sensor Type: CCD
Detection Method: Indirect Detection
# Pixels (Width): 2048
# Pixels (Height): 128
Pixel Size (Square): 48 um
...
Data Sheet
X-ray Time Delay Integration CMOS Camera
X-Scan Imaging Corp
Add to watch list
X-ray Time Delay Integration CMOS Camera
Compare
The Harrier XTI9080X series of time delayed integration (TDI) cameras provide high sensitivity and resolution compared to traditional linear diode arrays. The accumulation of signal by combining 8 rows of pixels increases signal, decreases signal to noise ratios, providing higher sensitivity that allows faster scan rates or reduction ...

Specifications
Sensor Type: CMOS
Detection Method: Direct Detection
# Pixels (Width): 2000
# Pixels (Height): 1
Pixel Size (Square): -- um
...
Data Sheet
HR25 X-Ray Camera
ProxiVision GmbH
Add to watch list
HR25 X-Ray Camera
Compare
A principle to detect high-energetic electromagnetic radiation (UV, X-rays) and particle radiation is the conversion to visible light in phosphor screens of different type and thickness. The emitted light is transmitted to the sensor of a camera. The use of fiber optical plates and tapers allows for high transmission efficiency and ...

Specifications
Sensor Type: Other
Detection Method: Direct Detection
# Pixels (Width): 782
# Pixels (Height): 582
Pixel Size (Square): -- um
...
Data Sheet
ALEX 2048 512 FI Full-Frame Deep Cooling Scientific CCD Camera
greateyes GmbH
Add to watch list
ALEX 2048 512 FI Full-Frame Deep Cooling Scientific CCD Camera
Compare
This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. Due to the large pixel size, very high signal to noise ratios are possible. The CCD detectors ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 2048
# Pixels (Height): 512
Pixel Size (Square): 13.5 um
...
Data Sheet
ALEX 1024 256 FI Full-Frame Deep Cooling Scientific CCD Camera
greateyes GmbH
Add to watch list
ALEX 1024 256 FI Full-Frame Deep Cooling Scientific CCD Camera
Compare
This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. Due to the large pixel size, very high signal to noise ratios are possible. The CCD detectors ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 1024
# Pixels (Height): 256
Pixel Size (Square): 26 um
...
Data Sheet
ALEX 2048 2048 FI Highly Sensitive Cooled Cameras
greateyes GmbH
Add to watch list
ALEX 2048 2048 FI Highly Sensitive Cooled Cameras
Compare
This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 2048
# Pixels (Height): 2048
Pixel Size (Square): 13.5 um
...
Data Sheet
CMOS X-Ray Camera Module
Kappa Optronics
Add to watch list
CMOS X-Ray Camera Module
Compare
At Kappa we have a longstanding expertise in developing cameras for industrial and medical X-ray applications. Our ultracompact CMOS X-ray camera modules are designed for perfect integration into the X-ray chain.  Variable electronics design for brilliant imagesHigh sensitivity, low noise and very high signal quality with ...

Specifications
Sensor Type: CMOS
Detection Method: Direct Detection
# Pixels (Width): 1936
# Pixels (Height): 1216
Pixel Size (Square): 5.86 um
...
Data Sheet
GE-VAC 1024 1024 BI DD Highly Sensitive Camera
Laserand
Add to watch list
GE-VAC 1024 1024 BI DD Highly Sensitive Camera
Compare
This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 1024
# Pixels (Height): 1024
Pixel Size (Square): 13 um
...
Data Sheet
GE-VAC 1024 1024 BI UV1 Highly Sensitive Camera
Laserand
Add to watch list
GE-VAC 1024 1024 BI UV1 Highly Sensitive Camera
Compare
This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 1024
# Pixels (Height): 1024
Pixel Size (Square): 13 um
...
Data Sheet
GE-VAC 1024 1024 BI Highly Sensitive Camera
Laserand
Add to watch list
GE-VAC 1024 1024 BI Highly Sensitive Camera
Compare
This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 1024
# Pixels (Height): 1024
Pixel Size (Square): 13 um
...
Data Sheet
GE-VUV 4096 4096 BI UV1 Highly Sensitive Camera
Laserand
Add to watch list
GE-VUV 4096 4096 BI UV1 Highly Sensitive Camera
Compare
This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 4096
# Pixels (Height): 4096
Pixel Size (Square): 15 um
...
Data Sheet
GE-VUV 4096 4096 BI Highly Sensitive Camera
Laserand
Add to watch list
GE-VUV 4096 4096 BI Highly Sensitive Camera
Compare
This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 4096
# Pixels (Height): 4096
Pixel Size (Square): 15 um
...
Data Sheet
GE-VUV 2048 2048 FI Highly Sensitive Camera
Laserand
Add to watch list
GE-VUV 2048 2048 FI Highly Sensitive Camera
Compare
This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best ...

Specifications
Sensor Type: CCD
Detection Method: Direct Detection
# Pixels (Width): 2048
# Pixels (Height): 2048
Pixel Size (Square): 13.5 um
...
Data Sheet
