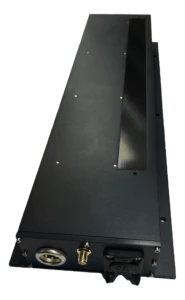

Hawk Dual Energy X-Ray Line Scan Detector

Name: Hawk Dual Energy X-Ray Line Scan Detector
Brand: X-Scan Imaging Corp

Description

The X-Scan XID8800 Series Line-Scan Camera Module Series offers dual-energy imaging capability to differentiate materials in a variety of inspection applications by simultaneously capturing high-energy and low-energy images.Specific features include: X-ray energy range options for low (25-100 KeV) and high (45-160 KeV) energy imaging, 16-bit A/D conversion, low noise, high sensitivity, variable scan speed with position synchronization.
Interfacing options include GigE, USB 3.0, and Camera Link. The XID8800 camera module includes a camera unit, software development kit, power adapter and cabling. An optional frame-grabber which can be installed in the computer is also available.

The X-Scan Imaging XID8800 series of dual-energy linear array x-ray cameras offers high performance and capability to differentiate materials in a variety of applications.

Specifications

Sensor Type:	CMOS
Detection Method:	Indirect Detection
# Pixels (Width):	5
# Pixels (Height):	5
Pixel Size (Square):	Not Specified
Bit Depth:	16 bit
Full Frame Rate:	Not Specified
X-Ray Energy Range:	25000 – 160000 eV

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Applications

Material discrimination in applications such as

Homeland security
Food
Recycle sorting

Request Quote

To: X-Scan Imaging Corp
Re: Hawk Dual Energy X-Ray Line Scan Detector

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: X-Scan Imaging Corp
On FindLight:: since 2020

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the X-Scan XID8800 Series Line-Scan Camera Module used for?

The X-Scan XID8800 Series Line-Scan Camera Module is used for differentiating materials in a variety of inspection applications by capturing high-energy and low-energy images simultaneously.

What are the energy range options for imaging with the XID8800 camera module?

The XID8800 camera module offers energy range options for low (25-100 KeV) and high (45-160 KeV) energy imaging.

What interfacing options are available for the XID8800 camera module?

The XID8800 camera module has interfacing options including GigE, USB 3.0, and Camera Link.

What is included in the XID8800 camera module package?

The XID8800 camera module package includes a camera unit, software development kit, power adapter, and cabling.

What are some applications of the X-Scan XID8800 Series Line-Scan Camera Module?

Some applications of the X-Scan XID8800 Series Line-Scan Camera Module include material discrimination in homeland security, food, recycle sorting, and other industries.

Got more questions? Use the inquiry form to ask the supplier directly.
