Eagle XO Open Front CCD High-Resolution Scientific Imaging Camera
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Description

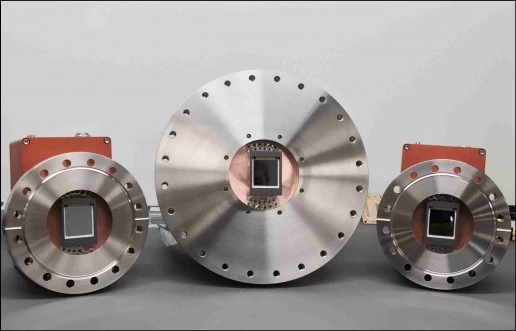

The Eagle XO is an advanced open front, direct detection CCD camera designed for high-resolution scientific imaging in soft X-ray applications. This cutting-edge device is available in two formats: 2048 x 2048 and 2048 x 512, catering to a range of imaging needs. With a readout speed of 75kHz and 2MHz, the Eagle XO is engineered to deliver exceptional image clarity and detail, making it an invaluable tool for researchers and professionals in the field.
One of the standout features of the Eagle XO is its ultimate sensitivity performance. The camera is equipped with an open front end and a CF152 (6”) flange, allowing for direct interfacing with vacuum chambers. This design choice enhances the camera's ability to capture high-quality images with minimal interference. Additionally, the Eagle XO employs a deep cooling mechanism using a Thermoelectric cooler (TEC), which significantly reduces dark current and enables longer exposure times without compromising image quality.
The Eagle XO's back-illuminated sensor, with no coating, optimizes sensitivity and provides a large field of view for imaging. The 13.5μm x 13.5μm pixel size ensures ultra-sharp image resolution and a high dynamic range, perfect for capturing intricate details in scientific research. With a peak quantum efficiency of over 90% and a spectral response range of 1.2eV to 20KeV, the Eagle XO is designed to meet the demanding requirements of advanced imaging applications.
Eagle XO Open Front CCD High-Resolution Scientific Imaging Camera
Specifications |
|
|---|---|
| Sensor Type: | CCD |
| Detection Method: | Direct Detection, Indirect Detection |
| # Pixels (Width): | 2048 |
| # Pixels (Height): | 2048 |
| Pixel Size (Square): | 13.5 um |
| Bit Depth: | 16 bit |
| Full Frame Rate: | 2 fps |
| X-Ray Energy Range: | 1.2 – 20000 eV |
| Dark Current @ -60°C: | 0.0004 e-/pixel/second |
| Binning: | Programmable, up to 64×64 Pixels |
Features
- Ultimate Sensitivity Performance: The Eagle XO features an open front end with a CF152 (6”) flange for direct interfacing to vacuum chambers, ensuring unmatched sensitivity in scientific imaging.
- Advanced Cooling Technology: Deep cooled using a Thermoelectric cooler (TEC) to minimize dark current and enable long exposure times, enhancing image quality.
- Back Illuminated Design: With no coating, the back illuminated sensor optimizes sensitivity and provides a large field of view for high-resolution imaging.
- High Resolution Imaging: Equipped with 13.5μm x 13.5μm pixels, the Eagle XO ensures ultra-sharp image resolution and a high dynamic range.
- Flexible Sensor Options: Available in 2048 x 2048 and 2048 x 512 formats, allowing for versatility in scientific applications.
- Low Dark Current: Achieves a dark current of 0.0004 e/p/s, ensuring minimal noise in long exposure images.
- Efficient Readout: Offers a readout noise of 2.3 e/p RMS at 75kHz and 9.0 e- rms at 2MHz, providing high-quality data output.
- High Quantum Efficiency: With a peak quantum efficiency of over 90%, the Eagle XO is ideal for a wide range of spectral responses from 1.2eV to 20KeV.
- Advanced Synchronization: Features trigger IN and OUT that are TTL compatible for seamless integration into existing systems.
- Robust Design: Operates in a wide temperature range from -20°C to +55°C and is designed for durability with a weight of 5.0kg.
- Comprehensive Connectivity: Equipped with a 16-bit digital output and CameraLink data interface for easy integration and data management.
Applications
- Soft X-Ray Imaging: Ideal for high-resolution direct X-ray detection in synchrotron experiments.
- Spectroscopy: Supports detailed spectral analysis requiring high sensitivity and stability.
- Materials Science: Enables precise structural imaging and defect analysis.
- Scientific Research: Suitable for vacuum-based experiments needing ultimate detection efficiency.
Frequently Asked Questions
The Eagle XO X-Ray Camera is a high energy version of one of the most sensitive CCD cameras in the world, designed for X-ray imaging, X-ray microscopy, thin films and nanofibers, X-ray plasma diagnostics, holography, and lithography.
The Eagle XO camera features an open front end, deep cooling using Thermoelectric cooler (TEC), back-illuminated 4MP no coating, 13.5um x 13.5um pixel, and enables ultra-sharp image resolution and high dynamic range.
The Eagle XO camera is cooled using air or liquid, with a delta of greater than -110°C.
The Eagle XO camera has a resolution of 2048 x 2048 and 2048 x 512 formats.
The weight of the Eagle XO camera (excluding lens) is 5.0kg [11lb].
