Description
Time Delay Integration (TDI) is a special image acquisition method that is used for in-line inspection application that requires highspeed, high sensitivity and high resolution. XTI12848 TDI camera is designed for long life with a Fiber Optic Plate that separates the sensor from the X-Ray path. X-Scan Imaging can help users select the scintillator for specific applications. Pixels are 48 µm × 48 µm. Binning modes 2×2, 4×4, 8×8, etc. allow for imaging at higher speed with lower resolutions.

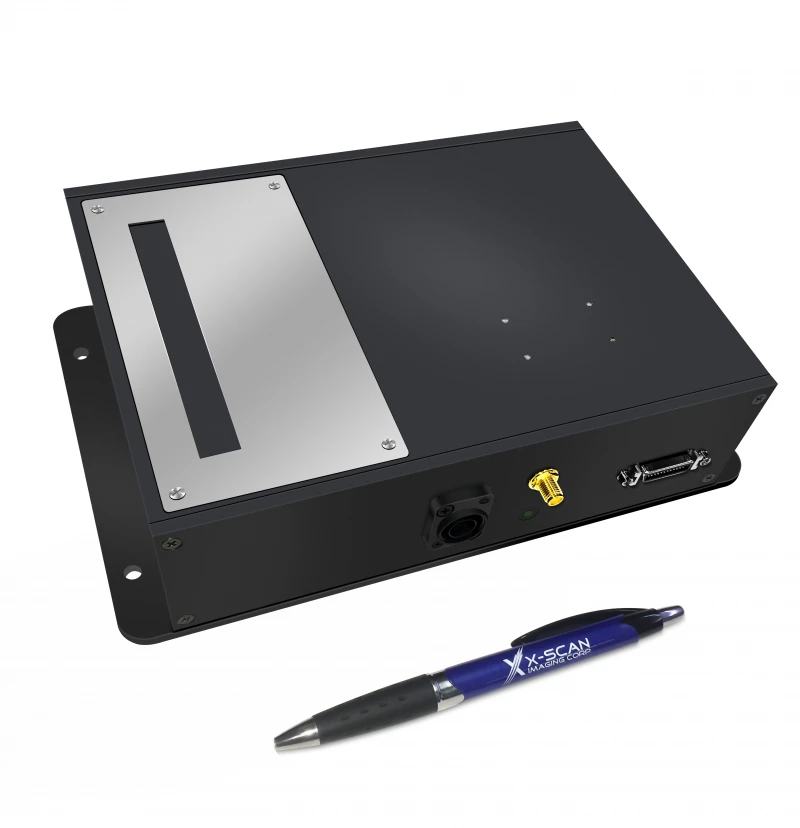

X-ray Time Delay Integration CCD Camera XTI12848-004
Specifications
| Sensor Type: | CCD |
|---|---|
| Detection Method: | Indirect Detection |
| # Pixels (Width): | 2048 |
| # Pixels (Height): | 128 |
| Pixel Size (Square): | 48 um |
| Bit Depth: | 16 bit |
| Full Frame Rate: | Not Specified |
| X-Ray Energy Range: | 40000 – 15000000 eV |
Download Data Sheet
Features
- High speed, resolution & sensitivity
- Imaging with off-axis, fiber-optic design
- User-select X-ray scintillating material GOS, CsI(Tl),CdWO4, etc.
- A selection of lengths: 4inches (2048 pixels), 9 inches (4608 pixels), 12 inches (6144 pixels)
- Highly extended lifetimes
- Camera Link (Base configuration) and GigE
- Vision interfaces
- 16-bit digitization and data output
- 100-240-V, 50-60-Hz power
- Software development kit (SDK) with application programming interface (API)
Applications
- PCB/SMT inspection
- In-line Non-Destructive Testing (NDT)
- High-energy x-ray, gamma-ray, betatron and neutron im
Frequently Asked Questions
What are the applications of the XTI12848 TDI camera?
The applications of the XTI12848 TDI camera include PCB/SMT inspection, In-line Non-Destructive Testing (NDT), and High-energy x-ray, gamma-ray, betatron and neutron imaging.
What are the available binning modes for the XTI12848 TDI camera?
The available binning modes for the XTI12848 TDI camera are 2×2, 4×4, 8×8, etc. which allow for imaging at higher speed with lower resolutions.
What is the pixel size of the XTI12848 TDI camera?
The pixel size of the XTI12848 TDI camera is 48 µm × 48 µm.
What is the XTI12848 TDI camera designed for?
The XTI12848 TDI camera is designed for long life with a Fiber Optic Plate that separates the sensor from the X-Ray path.
What is Time Delay Integration (TDI)?
Time Delay Integration (TDI) is a special image acquisition method that is used for in-line inspection application that requires high-speed, high sensitivity and high resolution.
