Photonic Science X-ray Laue Back-Scattered Camera
Description
The high resolution Laue X-ray camera allows a digital Laue diffraction pattern to be recorded with a resolution of 2774 x 1843 pixels and 14-bit digitization.
The X-ray passes through the camera and is collimated down < 1mm diameter. The active area input dimension is similar to that of Polaroid film i.e. 156 mm x 104.4 mm. Exposures from a few seconds up to >30 minutes can be adjusted during manual or automatic crystal orientations before being cut.
Twinned structures occurring during crystal growth can be unveiled using a high resolution mode. Upgrades from existing X-ray sources are made using high precision mechanics allowing accuracy down to 0.05 degrees. A micro-diffraction set-up for both laboratory and or synchrotron sources can be provided on demand.
Please use the "Request Quote" button to contact us directly.
Photonic Science X-ray Laue Back-Scattered Camera
Specifications |
|
|---|---|
| Sensor Type: | CCD |
| Detection Method: | Indirect Detection |
| # Pixels (Width): | 2774 |
| # Pixels (Height): | 1843 |
| Pixel Size (Square): | 64 um |
| Bit Depth: | 18 bit |
| Full Frame Rate: | 7.5 fps |
| X-Ray Energy Range: | 1000-5500eV |
Features
- Active input area of approx. 155(h) x 105(v) 155(h) x 105(v) mm imaged on the sensor
- Minimum input sizes 57μ square, 2,774 x 1,843 pixels
- Selectable exposure from 1ms to 35 minutes
- On chip pixel addition allowing increased sensitivity at the expense of resolution
- 18-bit high precision acquisition mode
- 14-bit fast preview mode
- Automatic background subtraction mode
- PSEL acquisition Laue image processing software
Applications
- Realtime crystal orientation down to 0.1 degrees accuracy
- Misalignment measurements down to 0.5 degrees using PSEL software

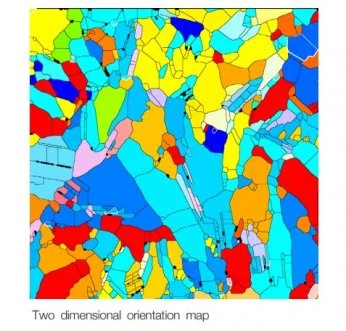

- Two dimensional orientation mapping of polycrystalline silicon wafers
- High throughput sapphire sample screening. Heavy duty sample screening up tp 20kg
