Photonic Science X-ray sCMOS 37.7MP 1:1 Detector
Description

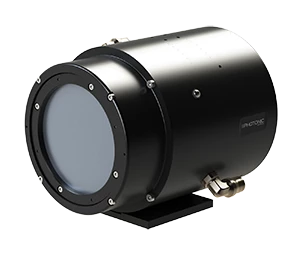

The detector offers a 61.44mm x 61.44mm square active area, with straight 1:1 fiber optic coupling to a 37.7 megapixel resolution sCMOS sensor. A custom scintillator is deposited onto the camera in order to allow 1keV up to 100keV.
The X-ray sCMOS detector delivers up to 11 fps full resolution allowing real time acquisition routine.
A built in electronic shutter allows smear free, shutterless acquisition even with exposure time down to millisecond range. Frame rate of >100 fps can be achieved when used in local sub-area mode or line scan mode.
A device server driver control allows remote acquisition through the existing GUI interface. The detectors have a native 16-bit acquisition mode.
Please use the "Request Quote" button to contact us directly.
Photonic Science X-ray sCMOS 37.7MP 1:1 Detector
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| Detection Method: | Indirect Detection |
| # Pixels (Width): | 6144 |
| # Pixels (Height): | 6144 |
| Pixel Size (Square): | 10 um |
| Bit Depth: | 16 bit |
| Full Frame Rate: | 11 fps |
| X-Ray Energy Range: | 1000-5500eV |
| Energy Range: | 1keV-55keV with Gadox:Tb/20keV-300keV with CsI |
| Detector Interface: | 10 Gigabit Ethernet / Genicam compliant |
| Spatial Resolution (µm): | <30µm FWHM with GdOS:Tb & <70µm FWHM with CsI:Tl |
| Exposure: | 80 microseconds up to 600 seconds |
| Peak QE: | 72% at scintillator emission wavelength (without microlens) |
| Sensor Temperature (ºC): | Operating at -40°C with water cooling |
| Dark Current: | <0.1 electron/pixel/second |
| Quantum Gain: | 21 electron/8keV X-ray photon |
| Read Out Noise: | <4 electrons in binning 1x1 |
| Full Well Capacity: | >120,000 electrons in binning 1x1 |
| Dynamic Range: | 30,000:1 in binning 1x1 |
| Input: | 10µm |
| Input Size: | 87mm diameter (61.44mm x 61.44mm) |
Features
- Input sizes: single 61.4 x 61.4mm straight rad hard fiber optic plate imaged on to a square large area sCMOS sensor
- Fast readout

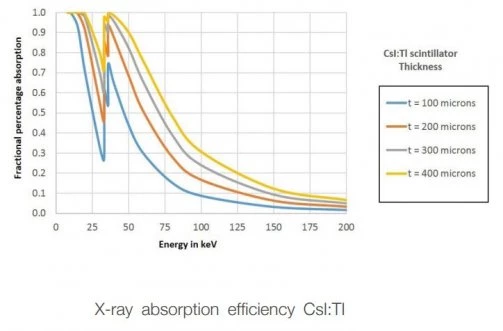

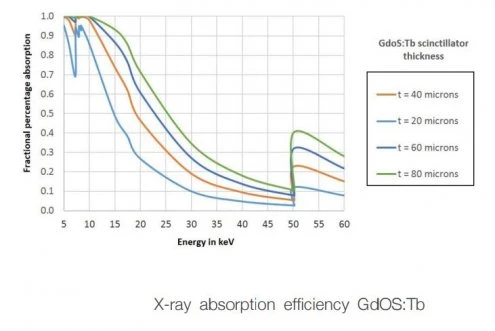

- Scintillator: Gadox:Tb for operation from 1-55 keV, structured CsI scintillator from 20-300 keV
- Simultaneous integration (readout enabling): 100% duty cycle acquisition
- Ultra-low noise
- Very low dark current
Applications
- Ultra Small Angle X-ray Scattering
- Single Crystal Diffraction
- Phase contrast imaging
- X-ray Microscopy
- High resolution MicroCT
- X-ray Coherent Diffraction Imaging
