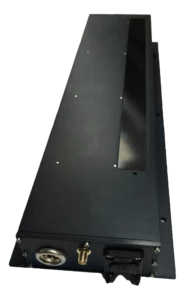

Falcon Single Energy X-Ray Line Scan Detector

Name: Falcon Single Energy X-Ray Line Scan Detector
Brand: X-Scan Imaging Corp

Description

The XI8800 Linear Diode Array (LDA) Camera Module Series incorporates X-Scan’s buttable detector array chips and an integrated computer interface module. Multiple chips can be tiled together in a virtually seamless fashion for imaging applications requiring longer active detector lengths. A variety of resolutions and selection of lengths ranging from 6 – 72 inches are available as standard sizes. Other custom lengths can be provided as required. The close proximity of the analog-to-digital converters (ADC) to the detector chips helps minimize noise and maximize bandwidth. Interfacing options include GigE, USB 3.0, and Camera Link.

The XI8800 camera module includes a camera unit, software development kit, power adapter and cabling. An optional frame-grabber which can be installed in the computer is also available.

Specifications

Sensor Type:	CMOS
Detection Method:	Indirect Detection
# Pixels (Width):	5
# Pixels (Height):	5
Pixel Size (Square):	Not Specified
Bit Depth:	16 bit
Full Frame Rate:	Not Specified
X-Ray Energy Range:	25000 – 160000 eV

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Pixel sizes available include 0.05, 0.1, 0.2, 0.4, 0.8 and 1.6mm.
External triggering input included.

Applications

Inspection of food, electronics, wood, tires, and a variety of other objects.

Request Quote

To: X-Scan Imaging Corp
Re: Falcon Single Energy X-Ray Line Scan Detector

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: X-Scan Imaging Corp
On FindLight:: since 2020

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the XI8800 Linear Diode Array (LDA) Camera Module Series used for?

The XI8800 series is used for imaging applications that require longer active detector lengths, such as inspection of food, electronics, wood, tires, and other objects.

What are the available resolutions for the XI8800 camera module?

The available pixel sizes for the XI8800 camera module include 0.05, 0.1, 0.2, 0.4, 0.8, and 1.6mm.

What interfacing options are available for the XI8800 camera module?

The XI8800 camera module offers interfacing options including GigE, USB 3.0, and Camera Link.

What is included in the package when purchasing the XI8800 camera module?

The package includes a camera unit, software development kit, power adapter, cabling, and an optional frame-grabber that can be installed in the computer.

What are the applications of the Falcon Single Energy X-Ray Line Scan Detector?

The Falcon Single Energy X-Ray Line Scan Detector is used for food and industrial inspection, package content inspection, security and cargo screening, and industrial non-destructive testing (NDT).
