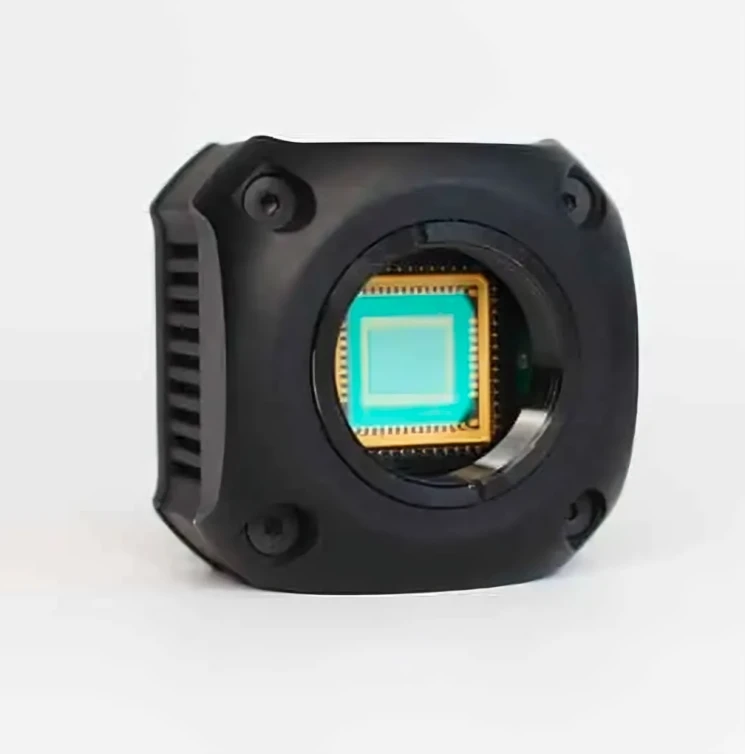

WiDy SenS 320M-S – High-Speed SWIR Camera

Specifications

Camera Type: Industrial, Scientific, Security, Military
Array Type: InGaAs
Spectral Band: 0.9 – 1.7 um
# Pixels (Height): 320
# Pixels (Width): 256
Pixel Pitch: 25 um
Array Cooling: Uncooled
Operating Temperature: -40°C to +65 °C
Frame Rate: Up to 1kHz (full-frame), 10kHz (ROI)
Operating Mode: TEC on/off
Triggering: IN/OUT (LVTTL), Selectable delay
Power Supply: 5V to 12V (Nominal 12V)
Dimensions: 46 × 46 × 53 mm
Mount: C-Mount native
Weight: < 215 g
ADC: 14 bits
Output Interfaces: USB 3.0, CameraLink
Dual Response: Linear (CTIA) Low & High Gain, Logarithmic
Exposure Time: 10µs (standard), 1µs (high-speed model)
Document icon Download Data Sheet Download icon

Features


  • High-Speed Imaging: Supports up to 1kHz full-frame and 10kHz (ROI) for dynamic applications

  • Dual-Response Sensor: Offers Linear (CTIA) Low & High Gain and Logarithmic modes for flexible imaging

  • QVGA Resolution: 320 × 256 pixels with a 15µm pixel pitch for detailed SWIR imaging

  • Versatile Connectivity: USB 3.0 and CameraLink interfaces for seamless integration

  • Compact & Lightweight: Small form factor (46 × 46 × 53 mm) with a weight of < 215g

  • Advanced Triggering: IN/OUT (LVTTL) with selectable delay for precise synchronization

  • Wide Operating Temperature Range: Functions efficiently between -40°C to +65°C

  • Partial Reading Mode: Down to 16 × 16 for optimized performance

  • C-Mount Compatibility: Native C-Mount for flexible optical configurations

Applications


  • Industrial Process Monitoring: Enables precise imaging for real-time production analysis

  • Laser Beam Profiling & Tracking: Ideal for evaluating laser beam characteristics and dynamic

  • Laser Alignment: Ensures accurate positioning and measurement in optical applications

  • Scientific Research & Development: Supports advanced optical and material studies

  • High-Speed Imaging Applications: Suitable for fast dynamic processes requiring detailed SWIR imaging
