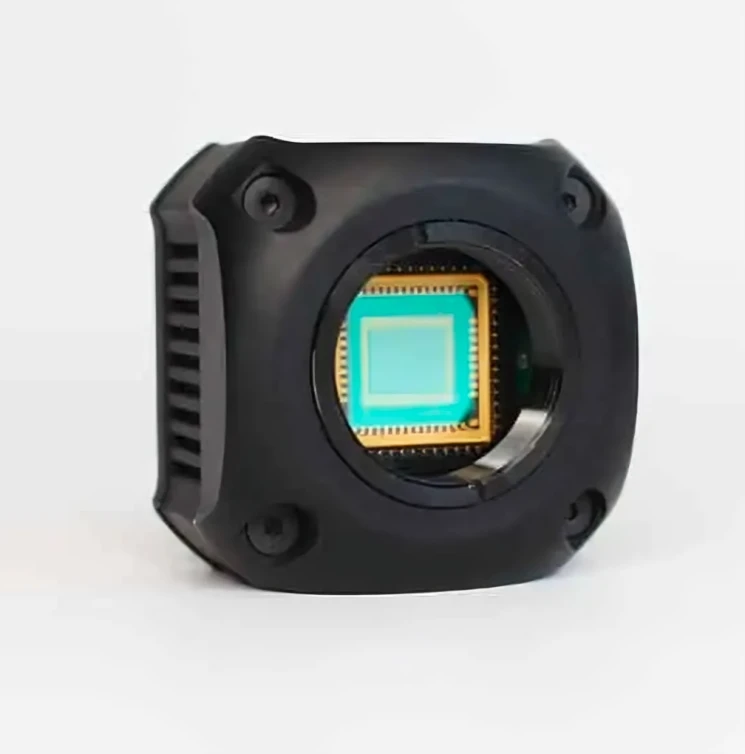

Thumbnail of WiDy SenS 320-S – High-Speed SWIR Camera photo 1

Description

The WiDy SenS 320 is a high-speed, cost-effective SWIR camera equipped with a unique dual-response InGaAs sensor, offering both Linear (CTIA) and Logarithmic modes. Featuring a QVGA resolution (320 × 256 pixels) with a 15µm pixel pitch, this compact camera delivers exceptional imaging performance across the 0.9 to 1.7µm spectral range.

With a frame rate of up to 1kHz in full-frame mode and an advanced high-speed model reaching 10kHz (ROI), it is ideal for high-speed industrial applications, laser profiling, and scientific research.

Compatible with USB 3.0 and CameraLink interfaces, the WiDy SenS 320 ensures seamless integration with existing systems. Its small 46 × 46 × 53 mm form factor and lightweight design (< 215g) make it highly adaptable for various applications. Featuring a C-Mount for easy lens attachment, selectable TEC operation, and advanced triggering capabilities, the WiDy SenS 320 is a powerful solution for precise and dynamic imaging in demanding environments.

WiDy SenS 320-S – High-Speed SWIR Camera

Visit the New Imaging Technologies (NIT) Store

Specifications

Camera Type: Industrial, Scientific, Security, Military
Array Type: InGaAs
Spectral Band: 0.9 – 1.7 um
# Pixels (Height): 320
# Pixels (Width): 256
Pixel Pitch: 25 um
Array Cooling: Uncooled
Exposure Time: 10µs (standard), 1µs (high-speed model)
Dual Response: Linear (CTIA) Low & High Gain, Logarithmic
Output Interfaces: USB 3.0, CameraLink
Frame Rate: Up to 1kHz (full-frame), 10kHz (ROI)
Operating Mode: TEC on/off
Triggering: IN/OUT (LVTTL), Selectable delay
Power Supply: 5V to 12V (Nominal 12V)
Dimensions: 46 × 46 × 53 mm
Mount: C-Mount native
Weight: < 215 g
ADC: 14 bits
Operating Temperature: -40°C to +65 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-Speed Imaging: Supports up to 1kHz full-frame and 10kHz (ROI) for dynamic applications
  • Dual-Response Sensor: Offers Linear (CTIA) Low & High Gain and Logarithmic modes for flexible imaging
  • QVGA Resolution: 320 × 256 pixels with a 15µm pixel pitch for detailed SWIR imaging
  • Versatile Connectivity: USB 3.0 and CameraLink interfaces for seamless integration
  • Compact & Lightweight: Small form factor (46 × 46 × 53 mm) with a weight of < 215g
  • Advanced Triggering: IN/OUT (LVTTL) with selectable delay for precise synchronization
  • Wide Operating Temperature Range: Functions efficiently between -40°C to +65°C
  • Partial Reading Mode: Down to 16 × 16 for optimized performance
  • C-Mount Compatibility: Native C-Mount for flexible optical configurations

Applications

  • Industrial Process Monitoring: Enables precise imaging for real-time production analysis
  • Laser Beam Profiling & Tracking: Ideal for evaluating laser beam characteristics and dynamic
  • Laser Alignment: Ensures accurate positioning and measurement in optical applications
  • Scientific Research & Development: Supports advanced optical and material studies
  • High-Speed Imaging Applications: Suitable for fast dynamic processes requiring detailed SWIR imaging

Frequently Asked Questions

What is the main advantage of the WiDy SenS 320 compared to other SWIR cameras?
The WiDy SenS 320 features a unique dual-response InGaAs sensor with both Linear (CTIA) and Logarithmic modes, allowing it to adapt to a wide range of lighting conditions. It also offers high-speed imaging up to 10kHz (ROI) at a cost-effective price.
What are the available output interfaces for this camera?
The WiDy SenS 320 supports USB 3.0 and CameraLink interfaces, providing flexible connectivity for various imaging applications.
Can the camera operate in high-speed environments?
Yes, the WiDy SenS 320 is designed for high-speed imaging applications, offering up to 1kHz full-frame and 10kHz (ROI) frame rates, making it ideal for dynamic industrial and research environments.
What is the spectral response range of the WiDy SenS 320?
The camera operates in the 0.9 to 1.7µm wavelength range, making it suitable for a wide range of SWIR imaging applications, including laser profiling and industrial process monitoring.
Does the camera support partial reading modes?
Yes, the WiDy SenS 320 supports Region of Interest (ROI) mode, allowing partial frame readout down to 16 × 16 pixels, optimizing performance for specific applications.
What is the minimum exposure time supported by the WiDy SenS 320?
The standard model supports a minimum exposure time of 10µs, while the high-speed model offers an even faster 1µs minimum exposure.
What type of lens mount does the WiDy SenS 320 use?
The camera features a native C-Mount, making it compatible with a wide range of optical lenses for different imaging requirements.
What is the operating temperature range for this camera?
The WiDy SenS 320 is built for reliability in extreme conditions, operating between -40°C to +65°C.
Does the camera include software for control and image processing?
Yes, the WiDy SenS 320 is compatible with NITVision GUI and SDK, providing intuitive camera control and image processing capabilities for both USB 3.0 and CameraLink models.
What applications are best suited for the WiDy SenS 320?
The camera is ideal for industrial process monitoring, laser beam profiling, laser alignment, scientific R&D, and high-speed imaging applications where SWIR detection is essential.
