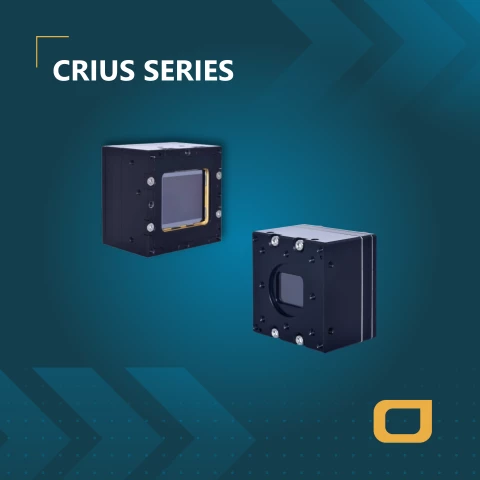

Crius 1280 Series Thermal Imaging Camera Core
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
Belgium
-
Sold by:
-
On FindLight:
since 2020
Description
Introducing the Crius 1280 Series, a high-resolution uncooled thermal core designed to elevate the performance of electro-optical systems. With its remarkable compactness and advanced resolution, this thermal core is engineered to significantly enhance Detection, Recognition, and Identification (DRI) capabilities. These features are crucial for long-range observation platforms, making the Crius series an ideal choice for search and rescue operations or surveillance of sensitive areas such as borders and critical infrastructure.
The Crius 1280 Series boasts a generic design that ensures seamless integration and retrofitting into existing defense and security electro-optical systems. This adaptability allows users to upgrade their current systems effortlessly, maximizing efficiency and performance without the need for extensive modifications. The compact size and lightweight nature of the core further contribute to its versatility, enabling its use in a wide range of applications where space and power consumption are critical considerations.
At the heart of the Crius 1280 Series is its micro-bolometer technology, delivering a resolution of 1280 x 1024 pixels with a 12 µm pixel pitch. This high-resolution capability, combined with a spectral range of 8-14 μm, ensures superior image clarity and detail. The core operates efficiently within a temperature range of -20°C to +60°C, with a power consumption of less than 2.8 W, making it suitable for various environmental conditions. Whether used in industrial or standard-grade applications, the Crius 1280 Series sets a new benchmark in thermal imaging technology.
Crius 1280 Series Thermal Imaging Camera Core
Specifications |
|
---|---|
Camera Type: | Other, Military, Security, Industrial |
Array Type: | Microbolometer |
Spectral Band: | 8 – 14 um |
# Pixels (Height): | 1280 |
# Pixels (Width): | 1024 |
Pixel Pitch: | 12 um |
Array Cooling: | Uncooled |
Features
- High-Resolution Uncooled Thermal Core: The Crius 1280 Series features a 1.3 megapixel resolution in a very compact LWIR core, ensuring exceptional clarity and detail.
- Very High Resolution - 12µm: Provides superior DRI (Detection, Recognition, Identification) ranges, essential for long-range observation platforms in search and rescue or surveillance.
- Compact and Lightweight Design: Small, light, and low power consumption, making it ideal for easy integration and retrofitting into existing systems.
- Frame Rate: Offers a frame rate of up to 60 FPS, ensuring smooth and detailed thermal imaging.
- Advanced Image Processing: Features BPC (Bad Pixel Correction), NUC (Non-Uniformity Correction), and AGC (Automatic Gain Control) for optimal image quality.
- Flexible Output Options: Includes CL, SDI, DF40, and MIPI CSI-2 interfaces for versatile connectivity.
- Compact Dimensions: Measures just 35 x 35 x 27 mm and weighs less than 90 grams, making it highly portable.
- Sensor Technology: Utilizes micro-bolometer technology with a resolution of 1280 x 1024 pixels and a pixel pitch of 12 µm.
- Spectral Range: Operates within an 8 – 14 μm spectral range.
- Max NETD: Less than 50 mK (F/1; 300K; 30 Hz) for outstanding sensitivity.
- Operating Temperature Range: Can function effectively from -20°C to +60°C.
- Low Power Consumption: Consumes less than 2.8 W, enhancing efficiency and reducing operational costs.
- Industrial Grade Qualification: Meets the standards for industrial applications, ensuring reliability and durability.
Applications
- Border Surveillance: Enhances detection and tracking at long distances under harsh conditions
- Search and Rescue (SAR): Assists in locating individuals across large or obscured areas
- Security & Defense Systems: Provides detailed thermal awareness for perimeter and facility monitoring
- Industrial Inspection: Supports monitoring of sensitive infrastructure with thermal analysis
- Electro-Optical System Integration: Ideal for upgrading or retrofitting existing surveillance platforms
