Description
Allied Vision’s Alvium SWIR cameras are the smallest industrial-grade short-wave infrared (SWIR) imaging devices on the market ideally suitable to build extremely compact OEM systems for embedded and machine vision applications. The Avium SWIR models incorporate innovative 2nd generation Sony SenSWIR InGaAs sensors supporting a high resolutions up to 5 MP and fast frame rates.
Their wide spectral range from 400 nm to 1700 nm allows you to image in the visible and SWIR spectrum with a single camera at lower overall system costs. No matter which interface you choose, industrial-grade Alvium SWIR cameras provide you a plug & play feeling whenever setting up your machine vision applications beyond the visible - independent if it’s based on a PC or embedded system.

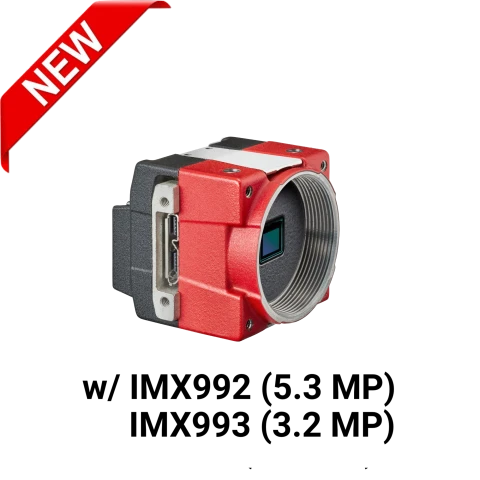

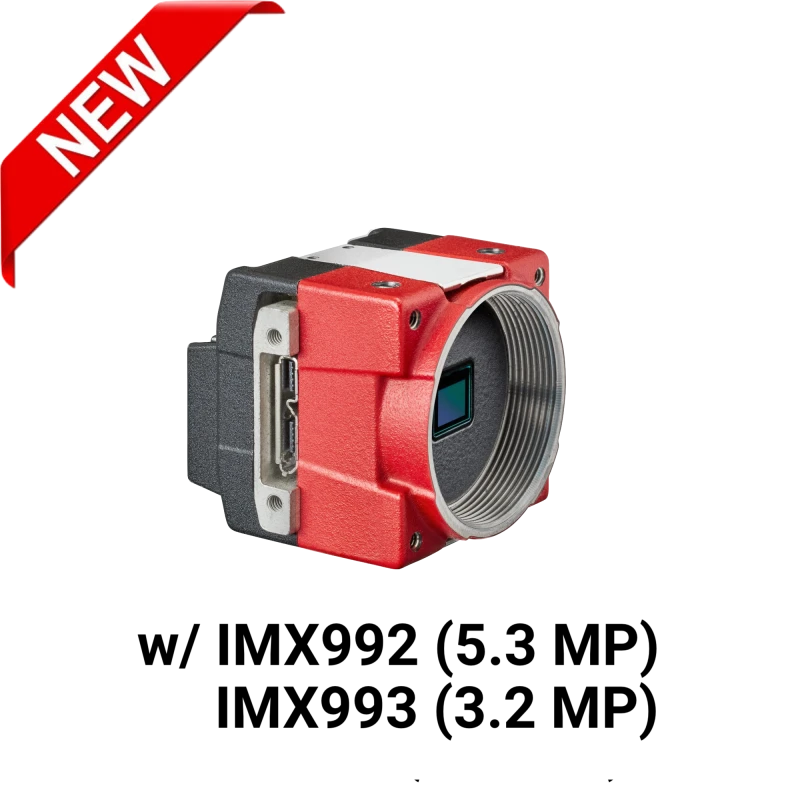

Alvium VSWIR | Modular Design TEC-less Cameras with Sony IMX sensors
Specifications
| Camera Type: | Industrial, Security |
|---|---|
| Array Type: | InGaAs |
| Spectral Band: | 400 – 1700 um |
| # Pixels (Height): | 5.32 |
| # Pixels (Width): | 3.21 |
| Pixel Pitch: | 5 um |
| Array Cooling: | Cooled |
Download Data Sheet
Features
- Resolution: up to 1.3 megapixels
- Sensor: Innovative Sony SenSWIR InGaAs sensors supporting a wide spectral range from 400 nm to 1700 nm
- Frame rates: up to 223 frames per second

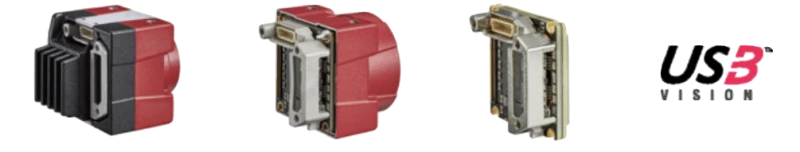

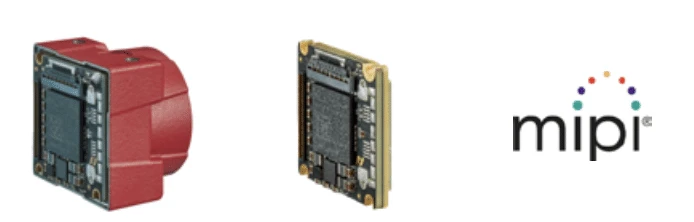

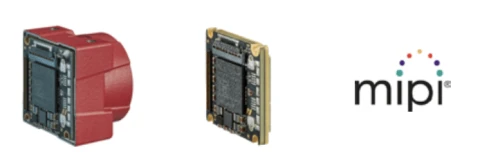

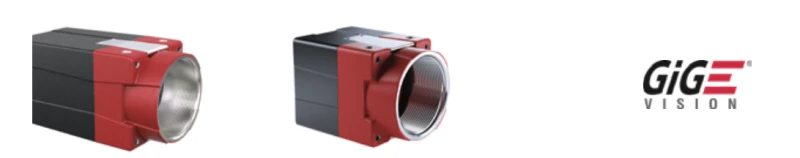

- Housing options: Bare Board, Open Housing, or Closed Housing
- Lens mount options: C-Mount, CS-Mount, or S-Mount
- Power consumption: <2W
- Operating temperature: -20°C to +65°C (case temperature)
Applications
- Semiconductor industry: Solar cell and chip inspection
- Recycling industry: Plastic sorting
- Medical imaging, sciences: Hyper- and multi-spectral imaging
- Glass industry: Defect detection through hot glass
- Agriculture industry: Airborne remote sensing
- Printing industry: Seeing hidden features
- Surveillance: Vision enhancement (for example, seeing through fog or haze)
- Security: Counterfeit detection (such as for money, faked hair, or skin)
Frequently Asked Questions
What makes Alvium SWIR cameras unique?
They are the smallest industrial-grade short-wave infrared cameras with innovative 2nd generation Sony SenSWIR InGaAs sensors, high resolutions, and wide spectral range.
What is the spectral range of the Alvium SWIR cameras?
The spectral range is 400 nm to 1700 nm, covering both visible and SWIR spectrums.
What are the common applications of Alvium SWIR cameras?
Applications include semiconductor inspection, agriculture remote sensing, recycling material sorting, medical imaging, food quality inspection, and security.
What are the available housing options for Alvium SWIR cameras?
Options include bare board (26 mm x 26 mm), open housing, and closed housing (29 mm x 29 mm).
What are the sensor models and their resolutions?
IMX992 (5.3 MP, 2592x2056) and IMX993 (3.2 MP, 2080x1544).
How does the camera handle challenging environments?
Features like on-board Automatic Gain Control (AGC), Contrast Control, and a wide operating temperature range (-20°C to +65°C) ensure reliability.
What are the benefits of the modular design?
Flexibility with C-, CS-, and S-Mount options, various housing types, and sensors without cover glass.
How do Alvium SWIR cameras enhance image quality?
Industry's smallest precisely aligned pixels, high frame rates, and on-board image enhancement features improve accuracy and vision quality.
What are the power requirements for these cameras?
Power over USB 3.1, PoE, or MIPI CSI-2 interface; external power via 5/12 VDC.
What industries benefit most from using these cameras?
Industries like semiconductor, agriculture, recycling, medical, food, beverages, glass, printing, surveillance, and security.
