Description
HIGH SPEED & HIGH DYNAMIC RANGE & HIGH SENSITIVITY, COST-EFFECTIVE SWIR CAMERA

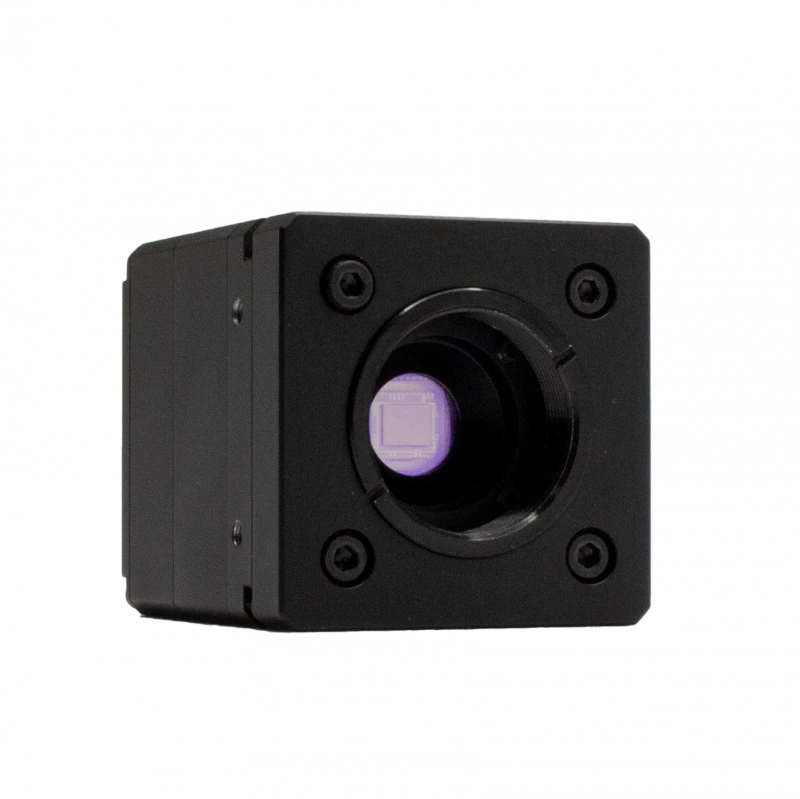

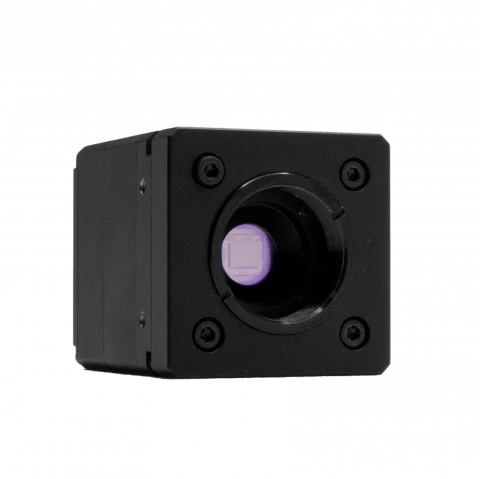

WiDy SenS 320 SWIR Camera
Specifications
| Camera Type: | Scientific, Other, Military, Security, Industrial |
|---|---|
| Array Type: | InGaAs |
| Spectral Band: | 0.9 – 1.7 um |
| # Pixels (Height): | 320 |
| # Pixels (Width): | 256 |
| Pixel Pitch: | 15 um |
| Array Cooling: | Uncooled |
| Dynamic Range: | 120dB |
| QE: | >70% |
| Frame Rate: | Up to 1K fps full frame 10K Hz (ROI) |
| Partial Reading Mode: | Down to 16x16 |
| Exposure Time: | 10μs to 1s |
| Operating Temp: | -40°C to +65°C |
| Interfaces: | USB3.0, CameraLink, GigE |
Features
HIGH SPEED & COST-EFFECTIVE SWIR CAMERA
- The low-price point SWIR camera – Unique dual-response InGaAs sensor (Lin & Log)
- QVGA resolution@15µm pixel pitch
- Deliver up to 1kHz full-frame
- Various interfaces: USB 3.0, CameraLink & GigE
- 30mm cage system compatible
- NEW High-speed model: Frame rate 10kHz (ROI), Exposure time 10µs mini, USB3.0 interface
Applications
- Industrial process monitoring
- Laser Beam Profiling & Tracking
- Laser alignment
- R&D purposes
