Description
The NS-101L2 line scan short-wave infrared (SWIR) camera features a high-resolution InGaAs linear detector and built-in adaptive image processing algorithms. It supports high line rate operation and is equipped with a GigE vision data interface. The camera provides a user-friendly SDK, facilitating secondary development. The product has the main characteristics of low noise, high line rate and low power consumption, and can be widely used in the fields of agricultural by product sorting, resource recovery, industrial sorting, photovoltaic detection, machine vision, etc.

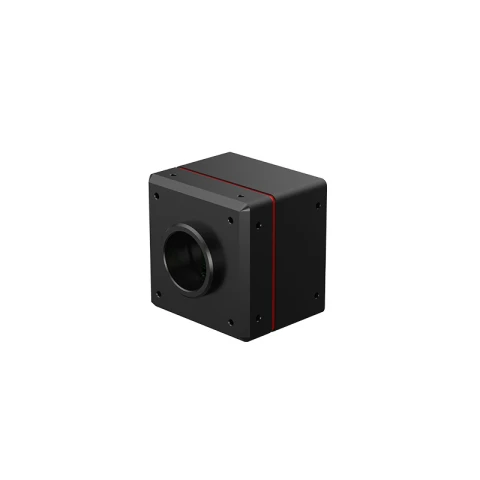

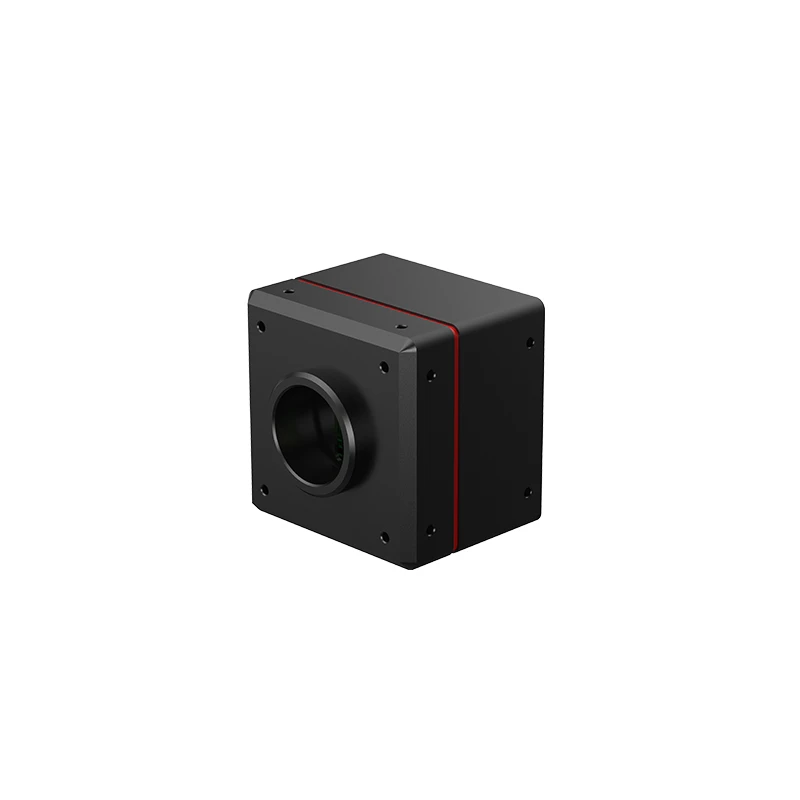

SWIR Line Scan Camera NS-101L2
Raytron Microelectronics
Specifications
| Camera Type: | Industrial |
|---|---|
| Array Type: | InGaAs |
| Spectral Band: | 0.9 – 1.7 um |
| # Pixels (Height): | 1024 |
| # Pixels (Width): | 1 |
| Pixel Pitch: | 12.5 um |
| Array Cooling: | Cooled |
| Maximum Line Rate: | 36kHz |
| Power Consumptton: | ＜2.5W |
| QE: | >70% (1.0μm~1.6μm) |
| Camera Core Size: | 53*60*60mm |
| Camera Core Weight: | 230±10g |
Download Data Sheet
Features
- Built-in Image Processing Algorithms
- GigE Interface
- Low Noise and Low Power Consumption
- High line Rate up to 36kHz
- User-Friendly SDK
Applications
- Resource Recovery
- Agricultural Byproduct Sorting
- Photovoltaic Inspection
- Machine Vision
