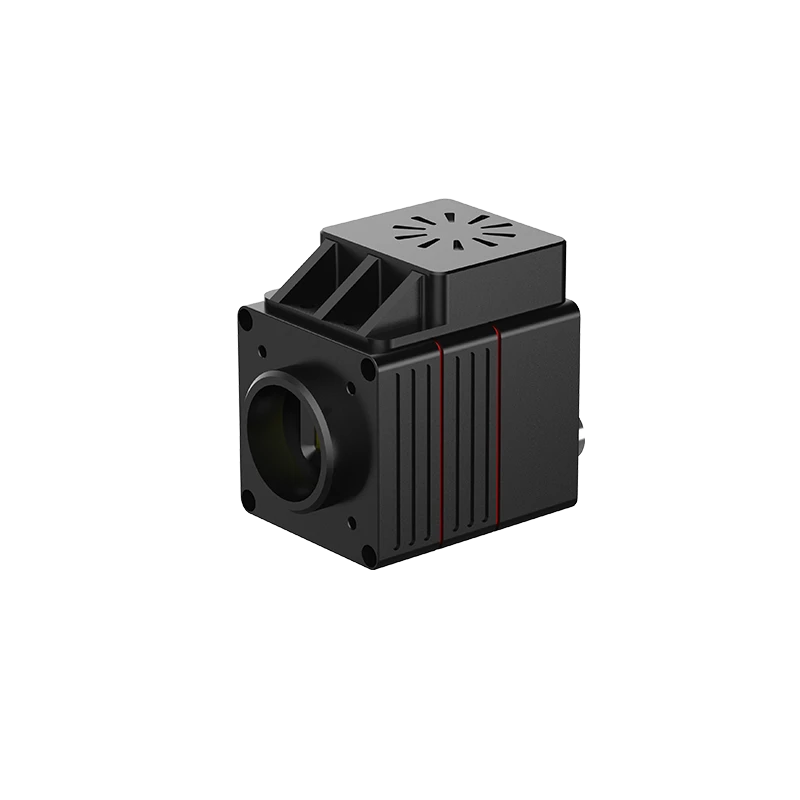

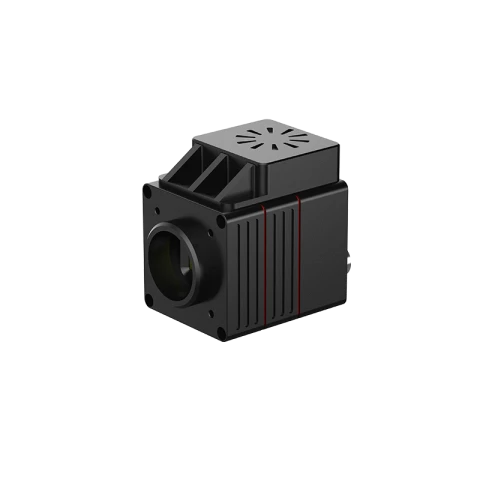

Name: SWIR Area Scan Camera NS-615A
Brand: Raytron Microelectronics
Availability: InStock

Description

To: Raytron Microelectronics
Re: SWIR Area Scan Camera NS-615A

NS-615A-GE SWIR area scan camera adopts high-resolution InGaAs detector. With built-in image correction and smart processing algorithm. Supports GigE imaging interface. Provide friendly SDK, support secondary development and product customization. Features low noise, digital output, and low power consumption. Suitable for broad application in semiconductor and sorting fields.

Specifications

Camera Type:	Industrial
Array Type:	InGaAs
Spectral Band:	0.9 – 1.7 um
# Pixels (Height):	640
# Pixels (Width):	512
Pixel Pitch:	15 um
Array Cooling:	Cooled
Maximum Line Rate:	180Hz（Full resolution）
Power Consumptton:	<2.5W (Tec Off)
QE:	>70% (1.0μm~1.6μm)
Camera Core Size::	46x46x61mm
Camera Core Weight:	150±5g

Download Data Sheet

Features

Focus on hyperspectral sorting.
Supports 4900 Hz for 16 freelines from 512 lines.
640*512@15um InGaAs sensor.
180 Hz full resolution.
GigE interface for easy industrial integration.
Compact size: 46mm × 46mm × 61mm (dimensions based on the drawing), easy for integration.
