Description
C-RED 2 is the most versatile SWIR InGaAs scientific camera on the market allowing:
- Fast framing (600Hz full frame) with high sensitivity (<30 e- of readout noise)
- Long exposures (several minutes) with low dark current (<2000 e-/sec/pix)
C-RED 2 integrates a top of the art InGaAs sensor, able to detect wavelength ranges between 0.9 and 1.7 μm with more than 70% Quantum Efficiency (reaches 90% at -40C). It integrates a VGA (640X512) 15μm pixel pitch and 9.60 X 7.68 mm array with 3 levels of gain.

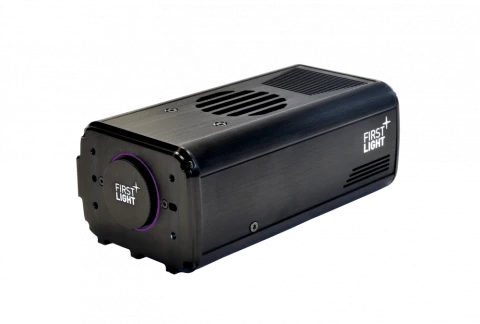

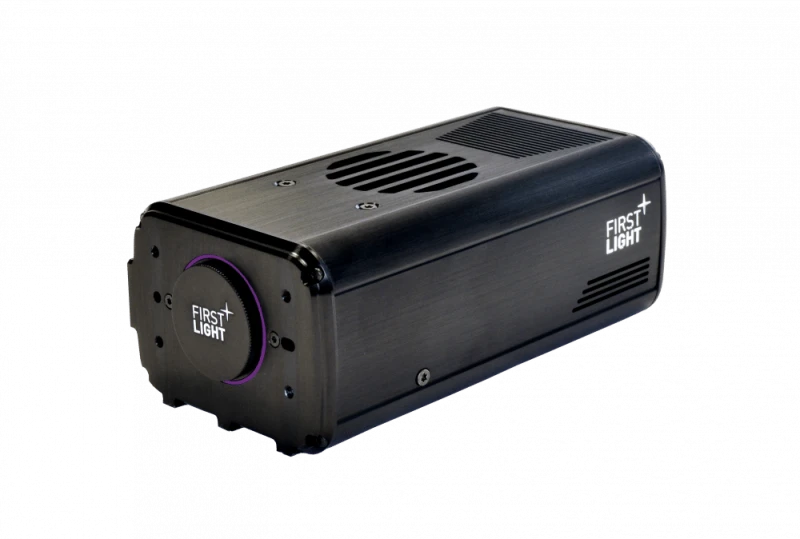

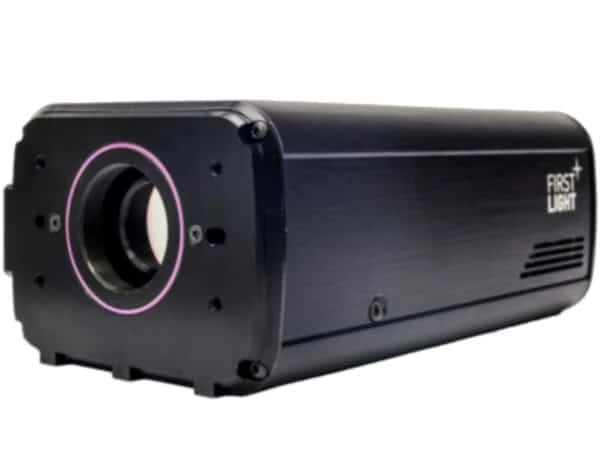

C-RED 2 | High-Speed Cooled SWIR camera
Specifications
| Camera Type: | Security, Military |
|---|---|
| Array Type: | InGaAs |
| Spectral Band: | 900 – 1700 um |
| # Pixels (Height): | 640 |
| # Pixels (Width): | 512 |
| Pixel Pitch: | 15 um |
| Array Cooling: | Cooled |
Download Data Sheet
Applications
Defense & Security
Adaptive Optics for Astronomy
Astronomical Observations
Hyper Spectral Imaging
Spectroscopy
Raman Spectroscopy
Laser Communications
Semiconductor Inspection
Solar Cells Inspection
OCT Imaging
Small animal imaging (fluorescence in the NIR-II & SWIR)
NIR-II Photodynamic Therapy
Bio Imagery
Fluorescence
