Description

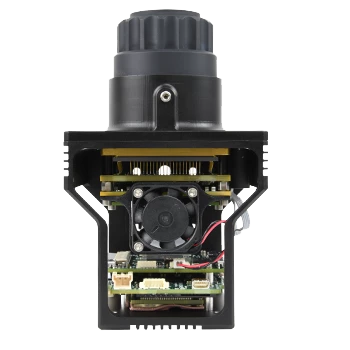

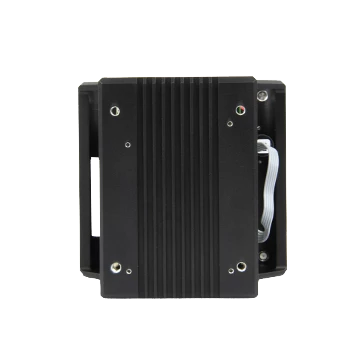

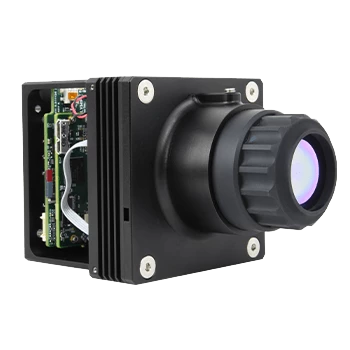

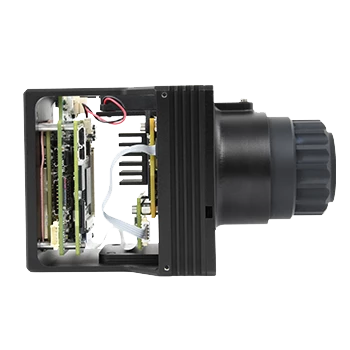

Vayu HD delivers superior HD image quality and situational awareness in a SWaP-optimized package. Available in 25 mm, 50 mm and 87 mm lens models, the Vayu HD is the highest-resolution uncooled LWIR camera on the market.
Specifications
| Camera Type: | Other |
|---|---|
| Array Type: | InSb |
| Spectral Band: | 8 – 14 um |
| # Pixels (Height): | 1200 |
| # Pixels (Width): | 1920 |
| Pixel Pitch: | 12 um |
| Array Cooling: | Uncooled |
| Detector Type: | Uncooled VOx Microbolometer |
| Array Format: | 1920 x 1200 |
| Pixel Pitch: | 12 um |
| Spectral Response: | LWIR |
| Frame Rate: | 60 Hz |
| Bit Depth: | 16 bit |
| NETD: | 50 mK |
| Digital Video Output: | HDMI (1080p), IP, USB3-UVC (6 bit) |
| IP Video: | Ethernet (H.264, H.265) |
| NUC: | 1-point with shutter or through lens |
| Image Enhancement: | Linear Histogram AGC, CLAHE, LAP, Sharpen, De-noise, Electronic image stabilization |
| Color Palette Options: | user color palettes/LUT |
| Digital Zoom / Pan: | 1x to 16x |
| Onboard Storage: | 32 GB std., Expandable to 512 GB |
| Input Voltage: | 11 to 14 VDC |
| Power Dissipation: | 12 W typical at room temperature, 13.5W maximum |
| Operating Temperature: | 0°C to +45C° |
| Lens Option One: | 25 mm |
| Weight: | 504 grams |
| Lens Option Two: | 50 mm |
| Weight: | 500 grams |
| Lens Option Three: | 87 mm |
| Weight: | 950 grams |
Download Data Sheet
Features
- 12 Micron Pixel Pitch
- 1920 x 1200 Array Format
- Low-SWaP
- 3 Lens Options Available
- USB 3 connection
Applications
- Wildlife Management
- Security & Surveillance
- Border Monitoring
- Situational Awareness
Frequently Asked Questions
Can this camera be integrated into aerial or ground systems?
Yes, this Low-SWaP camera is built for integration into mobile aerial or ground systems. It can also be fixed mounted.
