Introducing the World's Fastest InGaAs Area-Scan Camera – a pinnacle of advanced imaging technology that pushes the boundaries of speed and precision. Designed for high-performance applications, this camera is a part of the renowned Cheetah Series, known for its unparalleled speed and state-of-the-art SWIR performance. With a robust design and cutting-edge technology, this camera is engineered to deliver high-quality images at remarkable frame rates, offering professionals the tools they need to excel in demanding environments.

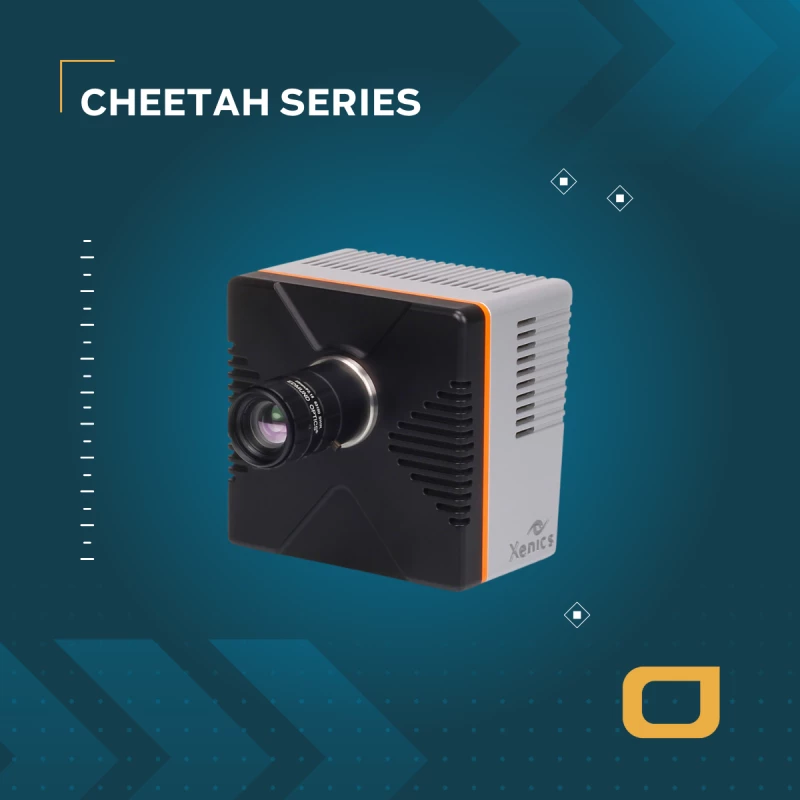

The Cheetah Series cameras are equipped with an in-house developed, temperature-stabilized InGaAs detector, boasting a resolution of 640 x 512 pixels. This precision-engineered detector is available in two versions: a single-stage TE-cooled detector capable of achieving frame rates of 400 Hz, 800 Hz, or an extraordinary 1700 Hz, and a three-stage TE-cooled detector that offers a frame rate of up to 110 Hz. This flexibility ensures that users can select the optimal configuration to meet their specific imaging requirements.
For those seeking to extend their imaging capabilities, a visible short-wave infrared (vSWIR) option is available, broadening the spectral range to include the visible wavelength band. This enhancement allows for greater versatility and adaptability across various applications. The camera's compact dimensions and lightweight design, coupled with its C-mount optical interface, make it a convenient choice for integration into existing systems. With its robust performance and innovative features, the Cheetah Series stands out as a leader in the field of high-speed, high-resolution imaging.
Cheetah/Cheetah+ Series (SWIR Camera)
Specifications |
|
|---|---|
| Camera Type: | Scientific, Other, Security |
| Array Type: | InGaAs |
| Spectral Band: | 0.5 – 1.7 um |
| # Pixels (Height): | 640 |
| # Pixels (Width): | 512 |
| Pixel Pitch: | 20 um |
| Array Cooling: | Cooled |
Features
- World's Fastest InGaAs Area-Scan Camera: Experience high-speed imaging with frame rates up to 1700 Hz.
- High Image Resolution: Equipped with a 640 x 512 pixel resolution for detailed imaging.
- State-of-the-Art SWIR Performance: Offers superior short-wave infrared imaging capabilities.
- Temperature Stabilized InGaAs Detector: Ensures consistent performance with TE-cooled options.
- vSWIR Option: Extend imaging into the visible wavelength band with the visible short-wave infrared option.
Applications
- Industrial Inspection: Utilize the high-speed imaging capabilities for quality control and inspection in manufacturing processes.
- Scientific Research: Ideal for applications in research labs where high-resolution and fast frame rates are essential for capturing dynamic processes.
- Surveillance and Security: Employ the camera's SWIR capabilities for enhanced surveillance in low-light or challenging conditions.
- Medical Imaging: Use in medical applications where precise imaging in the SWIR range can provide valuable insights.
- Remote Sensing: Perfect for environmental monitoring and geographical mapping, thanks to its broad spectral range.
- Hyperspectral Imaging: Benefit from the camera's ability to capture detailed spectral information for applications in agriculture and mineralogy.
- Astronomy: Use the camera for capturing high-quality images of celestial bodies with its high frame rate and sensitivity in the SWIR band.
- Laser Beam Profiling: Ideal for characterizing laser beams in the SWIR range due to its high-speed and high-resolution capabilities.
Frequently Asked Questions
The Cheetah/Cheetah+ cameras are designed for use in scientific and advanced research, safety and security, and medical applications.

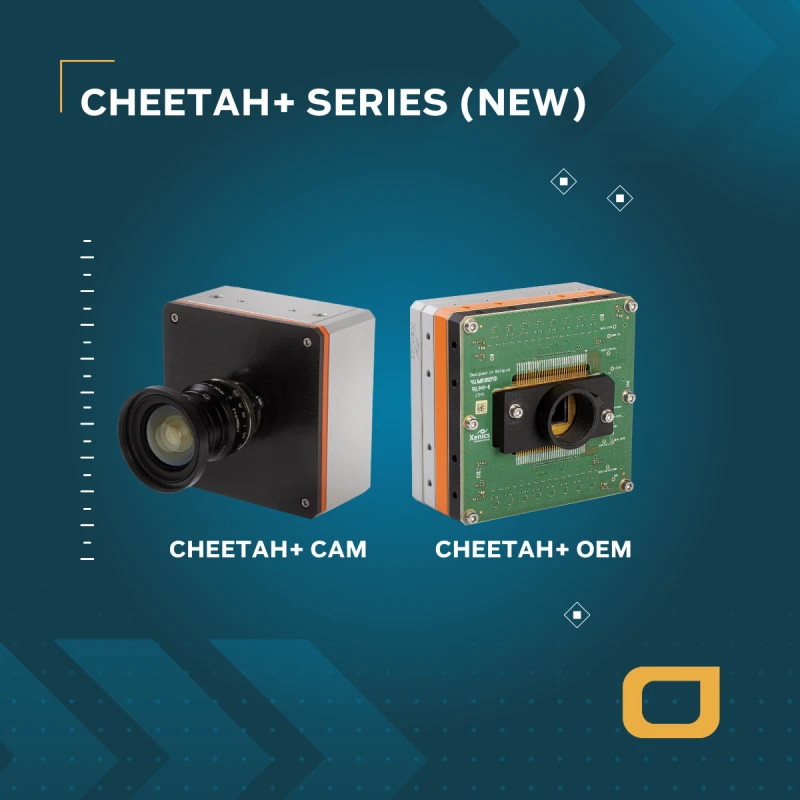

The Cheetah camera comes with a CameraLink interface while Cheetah+ series is offered in CoaXPress interface.
The Cheetah/Cheetah+ series cameras are offered in a resolution of 640 x 512 pixels.
