Description

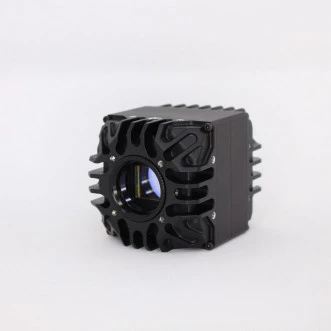

The SenS 1280 High Sensitivity SWIR Camera is a state-of-the-art imaging solution designed for high-performance applications requiring superior sensitivity and precision. With an impressive resolution of 1280x1024 pixels and a pixel pitch of 10µm, this camera delivers exceptional image clarity and detail. Its advanced near-infrared imaging capabilities, spanning from 900nm to 1700nm, make it ideal for capturing images in challenging lighting conditions where traditional cameras may falter.
Engineered with cutting-edge technology, the SenS 1280 is equipped with on-board smart image processing features that ensure optimal image quality. The camera's design integrates a low read-out noise of just 30e-, enhancing its ability to detect faint signals and produce clear images even in low-light environments. Additionally, the camera supports multiple output interfaces, including USB 3.0, CameraLink, HD-SDI, and CoaXPress, offering flexibility in connectivity and integration with various systems.
Compact and robust, the SenS 1280 is built to withstand demanding conditions. Its dimensions of 58 x 58 x 70 mm and weight of less than 400g make it a versatile choice for a wide range of applications. The camera's compatibility with C-Mount lenses further extends its adaptability, providing users with the option to utilize different lenses based on specific needs. Whether used in industrial, scientific, or surveillance settings, the SenS 1280 stands out as a reliable and powerful imaging tool.
Specifications |
|
|---|---|
| Camera Type: | Scientific, Military, Security, Industrial |
| Array Type: | InGaAs |
| Spectral Band: | 0.9 – 1.7 um |
| # Pixels (Height): | 1280 |
| # Pixels (Width): | 1024 |
| Pixel Pitch: | 10 um |
| Array Cooling: | Uncooled |
| Readout Noise: | 30e- |
| QE: | > 80% |
| Frame Rate: | up to 60Hz at full frame |
| Programmable Regions Of Interest: | Yes |
| ADC: | 14bits |
| Interfaces: | USB3.0, CameraLink, SDI, CoaXpress |
| On-Board Smart Image Processing Option: | Yes |
Features
- SXGA resolution – 1280x1024px @10µm pixel pitch
- Linear response mode: High sensitivity
- Read-out noise 30e-
- USB 3.0 & CameraLink & SDI interface
- TEC1
- Available in Compact & Smart
- GenICam compliant (Smart)
Applications
- Laser beam analysis
- Silicon, and solar wafer inspection
- Process control
- Medical
- Food analysis
Frequently Asked Questions
The SenS 1280 is an SXGA SWIR camera. (1280x1024px@10µm pixel pitch
The SenS 1280 has a readout noise of 30e-, QE > 80%, and a frame rate up to 60Hz at full frame. It also has programmable Regions of Interest and a 14-bit Digital ADC.
The SenS 1280 can be used for laser beam analysis, silicon and solar wafer inspection, process control, medical imaging, and food analysis.
Yes, the SenS 1280 has a quantum efficiency (QE) greater than 80%.
Yes, the SenS 1280 has a low readout noise of 30e-, making it suitable for low-light environments.
