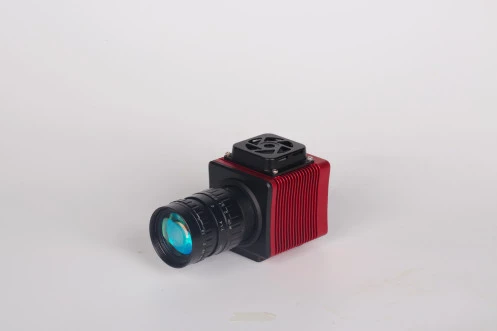

SWIR cameras+SWIR lenses, 1.1" 5MP, 12mm,16mm,25,35,50mm

Name: SWIR cameras+SWIR lenses, 1.1" 5MP, 12mm,16mm,25,35,50mm
Brand: Lumens Photonics
Availability: InStock

Description

S5128 adopts the latest SXGA InGaAs detector, 1280 × 1024 high resolutions, 5 μm
pixel spacing ，It has high sensitivity ，at the 0.4μm~1.7μm band. The camera has low
dark-current and high dynamic range, and accurate TEC temperature control further narrows the readout noise. The whole machine has compact structure, stable performance, small volume, low power consumption and strong environmental adaptability. It can be commonly used in photoelectric mission load, scientific research, security monitoring, machine vision, industrial detection, system integration and other fields.

Notice: we can use Sony, USA, Europe, Taiwan, or China sensor based on your requirements.

Specifications

Camera Type:	Industrial, Scientific, Security, Military, Other
Array Type:	InGaAs, QWIP, Colloidal Quantum Dot (CQD), InSb, Vanadium Oxide (VOx) Microbolometer, Pyroelectric, Si, Ge, Microbolometer, Mercury Cadmium Telluride (MCT, HgCdTe), Amorphous Silicon, Not Specified, Other
Spectral Band:	5 – 30 um
# Pixels (Height):	1280
# Pixels (Width):	1024
Pixel Pitch:	5 um
Array Cooling:	Cooled, Uncooled
SWIR Camera S5128, Sony Sensor:	2
High Resolution Visible SWIR Camera:	2
Standard Linear Array SWIR Camera:	2

Download Data Sheet

Features

Resolution: 1280 ×1024

Small pixel spacing, only 5um

Wide spectral response, 400nm - 1700 nm

Frame Rates: 25Hz/50Hz/100Hz/130Hz. Window mode, frame rate can be further improved.

During the day: low illumination imaging, through fog, haze, dust imaging

Global exposure mode, AGC, auto exposure, real-timeimage correction and enhancement

Window mode, frame rate can be further improved Digital video output and analog video output are optional

USB / SDI / GigE / CameraLink multiple interface modes

Applications

Bioluminescence imaging

Semiconductor/solar cell detection

Electronic circuit failure analysis

Photoelectric load of firefighting uav

Machine vision; 300~3000℃ high temperature measurement

Telecom optical fiber transmission quality inspection

All day imaging

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Lumens Photonics

On FindLight:

since 2021

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the spectral range of the SWIR camera?

The spectral range of the SWIR camera is 400~1700nm.

What is the resolution of the SWIR camera?

The resolution of the SWIR camera is 1280*1024 pixels.

What is the frame frequency of the SWIR camera?

The frame frequency of the SWIR camera is 25Hz/50Hz.

What are the available digital output options for the SWIR camera?

The SWIR camera offers USB and CL (CameraLink) digital output options.

What are some applications of the SWIR camera?

The SWIR camera can be used for bioluminescence imaging, semiconductor/solar cell detection, electronic circuit failure analysis, photoelectric load of firefighting UAV, machine vision, high temperature measurement, and telecom optical fiber transmission quality inspection.
