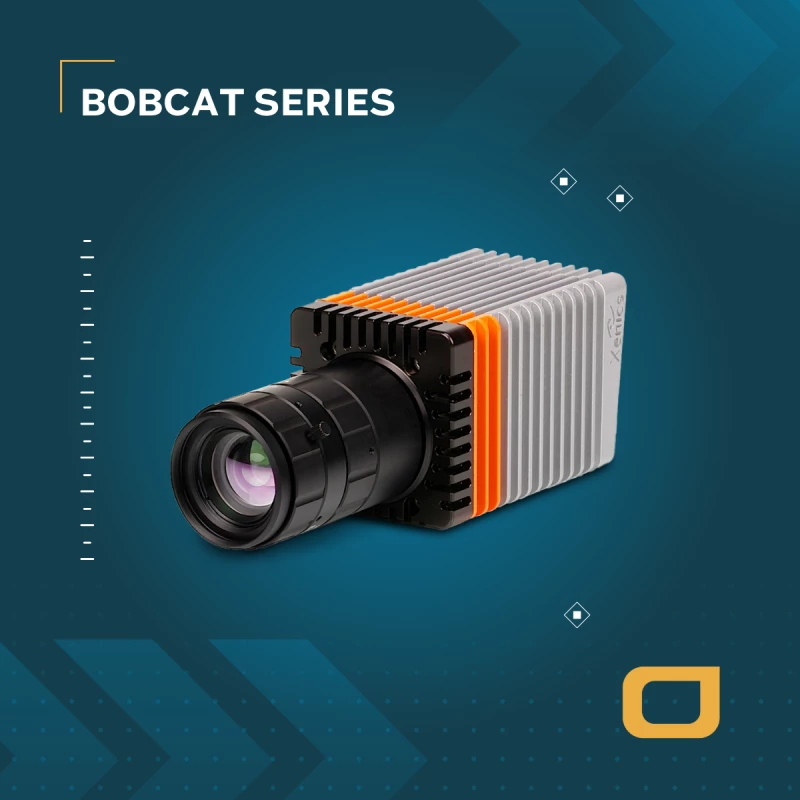

Bobcat 640 Series High-Performance InGaAs Camera
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Belgium
-
Sold by:
-
On FindLight:
since 2020
Description
The Bobcat 640 Series represents a breakthrough in compact imaging technology, offering a high-performance solution for those in need of superior image resolution. This series is built around a state-of-the-art, temperature-stabilized InGaAs detector, boasting a pixel resolution of 640 x 512. Designed with flexibility and ease of use in mind, the Bobcat 640 Series is equipped with either a CameraLink or GigE Vision interface, ensuring seamless integration into various systems.
Engineered for portability, the Bobcat 640 Series features a remarkably compact and lightweight design, making it ideal for applications where space and weight are at a premium. Despite its small stature, the camera doesn’t compromise on performance, delivering a high frame rate of up to 100 Hz. This ensures that users can capture fast-moving scenes with clarity and precision.
The Bobcat 640 Series is equipped with advanced on-board image correction features, including non-uniformity correction (NUC), bad pixel replacement (BPR), and automatic gain control (AGC). These enhancements ensure that the images produced are of the highest quality, with minimal noise and distortion. For those seeking additional image enhancement options, further information is available through our sales department.
With a spectral range spanning 900 - 1700 nm for SWIR and 500 - 1700 nm for vSWIR, the Bobcat 640 Series offers versatility in a variety of imaging scenarios. The camera's power consumption is optimized to be as low as 2.8 W, making it energy-efficient without sacrificing performance. This series is a testament to innovation in imaging technology, providing reliable performance in a compact package.
Bobcat 640 Series High-Performance InGaAs Camera
Specifications |
|
|---|---|
| Camera Type: | Scientific, Security, Industrial |
| Array Type: | InGaAs |
| Spectral Band: | 0.5 – 1.7 um |
| # Pixels (Height): | 640 |
| # Pixels (Width): | 512 |
| Pixel Pitch: | 20 um |
| Array Cooling: | Uncooled |
Features
- High Image Resolution: The Bobcat 640 series features a temperature-stabilized InGaAs detector with a resolution of 640 x 512 pixels, ensuring high-quality imaging.
- Compact and Lightweight: Designed for portability, the camera measures 55 mm x 55 mm x 72 mm (or 82 mm) and weighs only 285 gr or 334 gr.
- Flexible and Easy to Use: Offers both CameraLink and GigE Vision interfaces for versatile connectivity options.
- High Frame Rate: Capable of capturing images at up to 100 Hz, ideal for high-speed applications.
- Advanced Image Correction: Equipped with non-uniformity correction (NUC), bad pixel replacement (BPR), and automatic gain control (AGC) for enhanced image quality.
- Multiple Optical Interfaces: Compatible with C-mount or M42 optical interfaces.
- Wide Spectral Range: Operates effectively within a spectral range of 900 - 1700 nm (SWIR) and 500 - 1700 nm (vSWIR).
- Low Power Consumption: Efficient power usage with consumption levels of 2.8 W (no TE cooler) or 4 W (with TE cooler).
- Stable Performance: Features a sensor temperature stabilization TE cooler for consistent operation.
- Integration Type: Utilizes a snapshot-global shutter for capturing fast-moving subjects without motion blur.
Applications
- Industrial Inspection: Ideal for semiconductor and solar cell defect analysis using SWIR imaging
- Medical and Biological Imaging: Enables tissue differentiation and fluid analysis in NIR spectrum
- Defense and Security: Supports low-light surveillance and target detection in covert conditions
- Laser Beam Profiling: Accurate visualization of laser output in SWIR wavelengths
- Research and Development: Suitable for scientific studies requiring precise NIR/SWIR measurement
Frequently Asked Questions
Yes, the Bobcat 640 series camera has standard on-board image correction featuring non-uniformity correction (NUC), bad pixel replacement (BPR) and automatic gain control (AGC). For more info on other image enhancement features, contact our sales department.
The Bobcat 640 series camera is suitable for machine vision inspection, scientific and advanced research, safety and security, and process monitoring.
The Bobcat 640 series camera has a high frame rate of 100 Hz.
The Bobcat 640 series camera has a resolution of 640 x 512 pixels.
The Bobcat 640 series camera comes with either a CameraLink or GigE Vision interface.
