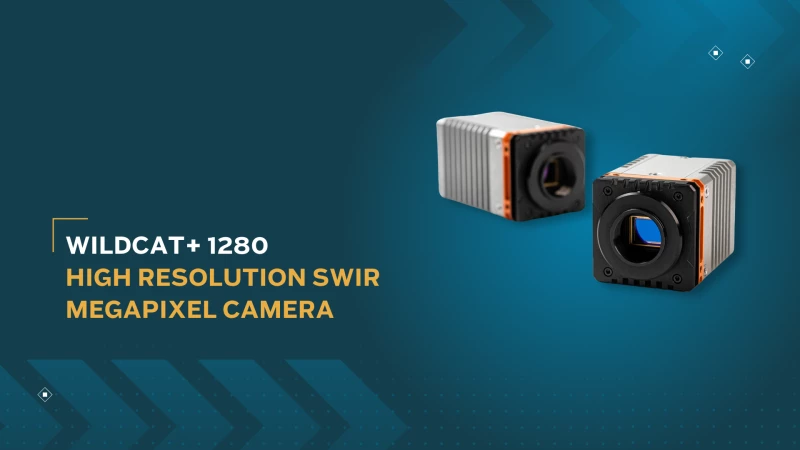

Wildcat+ 1280 Series SWIR Camera (1280 x 1024 px)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Belgium
-
Sold by:
-
On FindLight:
since 2020
Description
Introducing the Wildcat+ 1280 Series, a pinnacle of innovation in the realm of high-resolution SWIR (Short-Wave Infrared) megapixel cameras. Designed with cutting-edge technology, this camera series is built around a sophisticated InGaAs photodiode array, featuring an impressive 1280 x 1024 pixel resolution with a 5 μm pixel pitch. This ensures unparalleled clarity and precision in SWIR imaging, making it an ideal choice for professionals seeking superior image quality.
The Wildcat+ 1280 series is renowned for its industry-proven design, encapsulated in the versatile Wildcat camera package that adheres to GenICam standards. This ensures seamless integration into existing systems and workflows. With advanced onboard image processing capabilities, the Wildcat+ 1280 sets a new benchmark in image fidelity and performance.
Engineered for versatility, the camera offers flexible optical mount and lens options, accommodating a range of C-mount or M42 lenses to suit diverse application needs. Whether you choose the CameraLink or USB3 Vision interface, the Wildcat+ 1280 delivers full-frame images at a remarkable 120 Hz, ensuring swift and efficient data capture. Compact yet robust, the camera measures 55 mm x 55 mm x 72 mm and weighs approximately 345 grams, making it both portable and easy to integrate into various setups.
Experience the next level of imaging with the Wildcat+ 1280 Series, where precision meets performance. This series not only exemplifies high-resolution SWIR imaging but also embodies reliability and adaptability, making it a trusted choice for professionals in the field.
Wildcat+ 1280 Series SWIR Camera (1280 x 1024 px)
Specifications |
|
|---|---|
| Camera Type: | Scientific, Security, Industrial |
| Array Type: | InGaAs |
| Spectral Band: | 0.4 – 1.7 um |
| # Pixels (Height): | 1280 |
| # Pixels (Width): | 1024 |
| Pixel Pitch: | 5 um |
| Array Cooling: | Cooled |
Features
- High-Resolution SWIR Imaging: The Wildcat+ 1280 series delivers superior SWIR imaging with a resolution of 1280 x 1024 pixels and a 5 μm pixel pitch.
- Industry-Proven Camera Design: Built on a state-of-the-art InGaAs photodiode array, the camera is housed in a versatile, GenICam-compliant Wildcat package.
- Flexible Optical Mount & Lens Options: Offers compatibility with C-mount or M42 optical interfaces for versatile lens configurations.
- Advanced Onboard Image Processing: Equipped with advanced image processing capabilities for enhanced imaging performance.
- High Frame Rate: Outputs full-frame images at a maximum rate of 120 Hz through CameraLink or USB3 Vision interfaces.
- Compact and Lightweight Design: Dimensions of 55 mm x 55 mm x 72 mm (CameraLink) or 91.5 mm (USB3 Vision) and weights of 345 gr (CL) or 385 gr (U3V).
- Low Power Consumption: Operates efficiently with a power consumption of less than 7 W and a power supply voltage of DC 12 V.
- Wide Spectral Range: Capable of capturing images across a spectral range of 400 - 1700 nm.
- Snapshot - Global Shutter Integration: Features a snapshot global shutter for precise image capture.
Applications
- Surveillance and Security: Utilize high-resolution SWIR imaging for enhanced surveillance and security applications, especially in low-light conditions.
- Industrial Inspection: Perform precise inspections in manufacturing processes, detecting defects and ensuring quality control with advanced SWIR imaging.
- Scientific Research: Support scientific research with detailed imaging capabilities across a broad spectral range, from 400 to 1700 nm.
- Agriculture: Monitor crop health and optimize agricultural practices through detailed SWIR imaging.
- Medical Imaging: Enhance medical diagnostics with high-resolution imaging, suitable for various medical applications.
- Remote Sensing: Conduct remote sensing applications with high frame rates and superior image quality.
- Art Restoration: Assist in art restoration by revealing underlying layers and compositions with SWIR imaging.
Frequently Asked Questions
The Wildcat+ 1280 series has a compact and industry-proven camera design, high-resolution SWIR imaging, advanced on-board image processing performance, GenICam compliance, and flexible optical mount and lens options.
The Wildcat+ 1280 series is suitable for semiconductor inspection, display inspection (mobile phone and TV), microscopy, and laser beam analysis.
The Wildcat+ 1280 series has an image format of 1280x1024 pixels with a pixel pitch of 5 μm, and a spectral range of 400 - 1700 nm. It also has a quantum efficiency of ~77% (typical peak value), single gain modes, and a read noise of 200 electrons.
The Wildcat+ 1280 camera outputs full frame images at 120 Hz via either a CameraLink or USB3 Vision interface.
The Wildcat+ 1280 series is a high-resolution SWIR imaging camera based on a state-of-the-art InGaAs photodiode array with 1280x1024 pixels and 5 μm pixel pitch.
