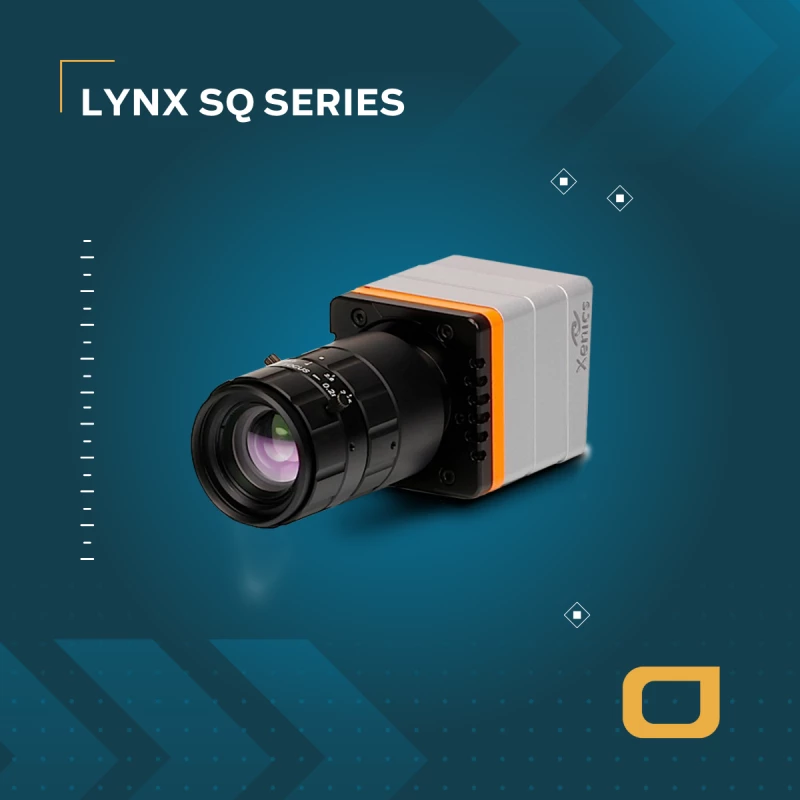

Lynx SQ Series Short-Wave Infrared (SWIR) Linescan Imager
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Belgium
-
Sold by:
-
On FindLight:
since 2020
Description
The Lynx SQ Series from Xenics represents a cutting-edge advancement in line-scan SWIR imaging technology. Designed with an in-house developed linear InGaAs detector, these cameras provide a cost-effective solution for high-speed imaging applications. With three distinct resolution options of 512, 1024, or 2048 square pixels, the Lynx SQ Series caters to diverse imaging needs, ensuring precise and reliable performance across various applications. The series incorporates standard on-board image correction features, including non-uniformity correction (NUC), bad pixel replacement (BPR), and gain control, which together enhance image quality and consistency.
Engineered for efficiency and versatility, the Lynx SQ Series delivers high-speed line-scan imaging capabilities of up to 40 kHz. This makes it an ideal choice for applications requiring rapid data acquisition and processing. The cameras are equipped with industry-standard interfaces, ensuring seamless integration into existing systems. Users can choose between CameraLink Base or GigE Vision for command and control, providing flexibility and ease of use in various operational environments.
Compact and lightweight, the Lynx SQ Series cameras are designed for easy installation and integration. The camera dimensions are 49 mm x 49 mm x 53 mm for the CameraLink model and 49 mm x 49 mm x 71 mm for the GigE model, with respective weights of 153 grams and 208 grams. The optical interface options include C-mount or M42, with an optional M42 to F-mount adapter available, offering additional adaptability to different optical setups.
Overall, the Lynx SQ Series provides a robust and adaptable solution for those seeking high-performance SWIR imaging capabilities. With its advanced technology, compact design, and flexible interface options, it stands as a reliable choice for professionals in need of precise and efficient imaging tools.
Lynx SQ Series Short-Wave Infrared (SWIR) Linescan Imager
Specifications |
|
|---|---|
| Camera Type: | Other, Industrial |
| Array Type: | InGaAs |
| Spectral Band: | 0.9 – 1.7 um |
| # Pixels (Height): | 25 |
| Pixel Pitch: | 25 um |
| Array Cooling: | Uncooled |
Features
- Small, Uncooled InGaAs Line-Scan Camera with Square Pixels: Designed for compact and efficient SWIR imaging.
- High Speed Line-Scan Imaging: Capable of imaging up to 40 kHz for fast data acquisition.
- High Resolution Options: Available in 512, 1024, or 2048 square pixels to suit diverse imaging needs.
- Industry Standard Interfaces: Features CameraLink Base or GigE Vision for command and control.
- Flexible Optical Interface: Compatible with C-mount or M42, with an optional M42 to F-mount adapter.
- Compact and Lightweight Design: Camera dimensions are 49 mm x 49 mm x 53 mm (CL) and 49 mm x 49 mm x 71 mm (GigE), with a weight of 153 gr (CL) and 208 gr (GigE).
- Advanced Image Correction: Standard on-board image correction includes non-uniformity correction (NUC), bad pixel replacement (BPR), and gain control.
- Power Efficient: Consumes 3.9 W (CL) and 6.3 W (GigE) with a power supply voltage of DC 12 V.
- Wide Spectral Range: Operates within a spectral range of 900 - 1700 nm, ideal for various SWIR applications.
- Versatile Detector Type: Utilizes an InGaAs photodiode array with CTIA ROIC for high-performance imaging.
- Snapshot - Global Shutter Integration: Ensures precise and clear image capture without motion blur.
Applications
- Industrial Process Monitoring: Use the camera for real-time monitoring and control of manufacturing processes, ensuring quality and efficiency.
- Food and Agricultural Inspection: Detect foreign objects, contaminants, or quality variations in food products and agricultural produce.
- Pharmaceutical Inspection: Ensure the integrity and quality of pharmaceutical products by detecting defects or inconsistencies.
- Semiconductor Inspection: Perform detailed inspections of semiconductor wafers and components to identify defects or impurities.
- Recycling and Waste Sorting: Enhance the sorting process by identifying and separating different materials based on their spectral characteristics.
- Biomedical Imaging: Utilize the SWIR camera for non-invasive imaging applications in medical and research settings.
- Art and Historical Document Analysis: Analyze and authenticate artworks and historical documents by revealing underlying features not visible to the naked eye.
- Remote Sensing and Environmental Monitoring: Monitor vegetation, water bodies, and other environmental parameters using SWIR imaging.
- Security and Surveillance: Enhance surveillance capabilities by detecting objects and activities in low-light or obscured conditions.
- Scientific Research: Support various research applications requiring high-speed, high-resolution SWIR imaging.
Frequently Asked Questions
The cameras have standard on-board image correction featuring non-uniformity correction (NUC), bad pixel replacement (BPR), and gain control. For more info on other image enhancement features, contact our sales department.
The cameras come with an industry-standard CameraLink or GigE Vision interface.
The Lynx SQ series is a line of affordable short-wave infrared (SWIR) linescan imagers based on an in-house developed linear InGaAs detector.
The Lynx SQ cameras are able to image line rates up to 40 kHz for demanding machine vision applications.
Depending on your imaging requirements, three resolutions of 512, 1024, or 2048 pixels are offered.
