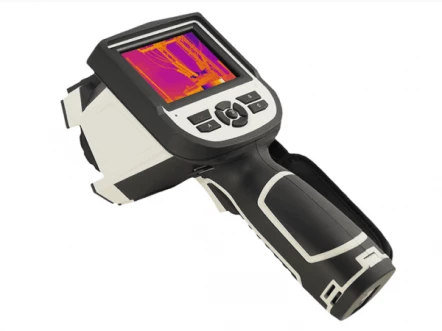

DuraCam XT Series 384x288 Uncooled Infrared Camera with Bluetooth

Specifications

Camera Type: Scientific, Security, Industrial
Array Type: Not Specified
Spectral Band: 7 – 14 um
# Pixels (Height): 384
# Pixels (Width): 288
Pixel Pitch: 17 um
Array Cooling: Uncooled
Document icon Download Data Sheet Download icon

Features


  • Optional High Temp Calibration: Enhance the camera's capabilities for extreme temperature measurements.

  • 60 sec Voice Annotation: Record voice notes with each thermal image for detailed analysis.

  • JPG Image Format: Save images in a widely compatible format for easy sharing and reporting.

  • 5 Movable Spots and Areas: Customize your focus with adjustable spots and areas for precise thermal readings.

  • 2 Movable Lines: Use movable lines for specific linear thermal analysis.

  • 11 Color Palettes: Choose from a variety of color schemes to best highlight thermal differences.

  • Rugged Enclosure: Built to withstand tough environments, ensuring durability and reliability.

  • Small Size and Light Weight: Designed for portability without compromising on features.

  • Low Power Consumption: Efficient energy use for extended field operations.

  • UFPA Microbolometer Detector Array: Advanced sensor technology for high-quality thermal imaging.

  • Pixel Pitch: 17 µm for fine thermal resolution.

  • Pixel Resolution: 384x288 for detailed thermal images.

  • Spectral Band: 7 µm to 14 µm for broad thermal detection capabilities.

  • Thermal Sensitivity (NETD): Less than 0.03 °C at 30 °C (30 mK) for detecting subtle temperature variations.

  • Frame Rate: 50 Hz for P-Series or 9 Hz for S-Series to suit different application needs.

  • Dynamic Range: 14-bit for capturing a wide range of temperatures.

Applications


  • Electrical Inspections: Identify overheating components and circuit failures

  • Oil & Gas Industry: Monitor equipment and pipelines for thermal anomalies

  • Steel & Coal Industries: Inspect high-temperature machinery and processes

  • HVAC/R Diagnostics: Evaluate system performance and airflow integrity

  • Building Inspection: Detect insulation loss, moisture, and structural issues

  • Scientific Research: Capture high-resolution thermal data for experimental analysis

  • Home & Contractor Use: Ideal for energy audits and diagnostics in residential settings
