Description

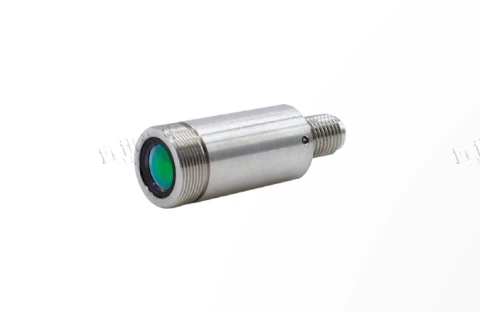

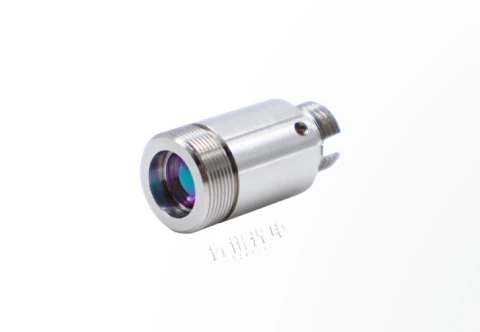

Aspheric Lens Collimators FC/APC Connector 405nm-1650nm
The aspherical lens collimator's unique aberration-correction design empowers it to execute highly efficient and accurate collimation of light beams. As a result, the energy of the output light beam assumes a Gaussian distribution. Both surfaces of the lens are coated with anti-reflection films, that significantly decrease surface reflection losses and substantially improve the light transmittance. Nevertheless, the aspherical lens possesses certain inherent characteristics. Specifically, it exhibits a chromatic aberration phenomenon, with a strong correlation existing between its effective focal length (EFL) and the wavelength.
During the manufacturing, the relative positioning of the lens and the optical fiber has undergone extremely precise adjustments. This ensures that the deflection angle of the emitted light beam is maintained within an exceedingly narrow range of 0.5 degree. Consequently, it is better equipped to adapt to diverse application scenarios and system requirements.
Aspheric Lens Collimators FC/APC Connector 405nm-1650nm
Specifications
| Center Wavelength: | 1550 nm |
|---|---|
| Bandwidth: | 10 nm |
| Numerical Aperture: | 0.24 |
| Effective Focal Length (EFL): | 4.74 mm |
| Connectors: | FC/APC |
| Max. Power (model Dependent): | 1W/mm2 |
| Transmittance: | ≥95% |
| Wavelength Options (model Dependent): | 405, 450, 520, 633, 780, 850, 980, 1064, 1310, 1550, 1650 |
| Bandwidth (nm): | ±5 |
| EFL (model Dependent): | 4.45 - 24.42 mm |
| NA (model Dependent): | 0.15 - 0.51 |
| Manufacturer Part Number (MPN): | YSF-XXX-XXX-FC/APC |
| FindLight SKU: | FL-23758 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Three Connector Options: FC/PC, FC/APC, SMA905
- Compatible with Narrow and Wide Key Connectors
- Compact structure, Convenient for installation
- Custom Options including wavelengths
Applications
- Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
- Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
- Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
- Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
- Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
- Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9002.90.9500 |
| Estimated US Tariff: | 25% |
Frequently Asked Questions
What is the wavelength range of the YSF series products?
What connector type is used for the YSF series?
What is the maximum power rating for the YSF series?
What is the transmittance percentage of the YSF series products?
How does the output beam size vary among the YSF series models?
What is the divergence angle for the YSF series?
Where is Yifeng Chuangzhi Technology located?
Are customs duties, tariffs, value added tax (VAT) included in the price?
Got more questions? Use the inquiry form to ask the supplier directly.
