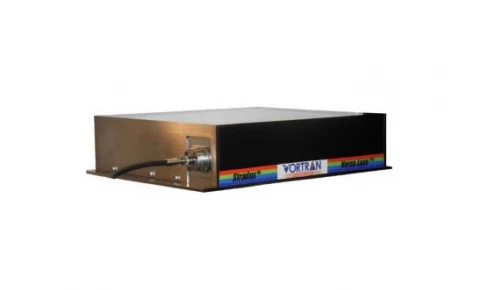

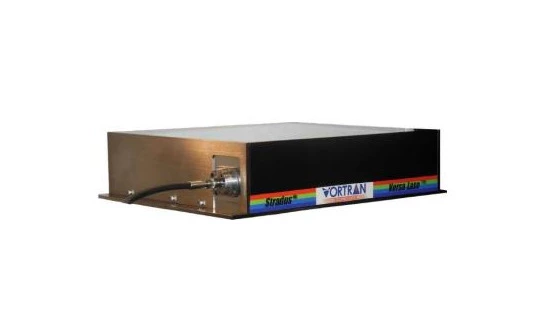

VersaLase Multi-Wavelength Laser Module

Specifications

Center Wavelength: 0.405 um
Output Power: 250 mW
Beam Diameter: ~0.8-1.3 mm
Beam Divergence: <1.0 mrad
Beam Spatial Mode: TEM 00
M² (typical): < 1.25
Pointing Stability: < 5 µrad/°C
Power Stability: < 2% from Fiber
Polarization Orientation: Vertical ±2°
Polarization Extinction Ratio: >100:1
Communication: Mini-USB and RS-232
CDRH Class: Class IIIb
ESD Protection: Class 4
RoHS Compliance: EU and China
Document icon Download Data Sheet Download icon

Features


  • Wavelength Range: Stradus wavelengths from 405nm to 785nm.

  • Power Output: Up to 250mW per wavelength.

  • Beam Output Options: Free Space, Single Mode (SM), Polarization Maintaining (PM), and Multi-Mode (MM) fiber options.

  • Beam Diameter: Approximately 0.8-1.3 mm (1/e²).

  • Beam Divergence: Less than 1.0 mrad.

  • Beam Spatial Mode: TEM00.

  • M² (Typical): Less than 1.25.

  • Beam Circularity: Greater than 90%.

  • Beam Centration: Less than 0.5 mm.

  • Beam Alignment: Less than 5 mrad.

  • Pointing Stability: Less than 5 µrad/°C.

  • Power Stability: Less than 2% over 24 hours from fiber.

  • Polarization Orientation: Vertical ±2°.

  • Polarization Extinction Ratio: Greater than 100:1.

Applications


  • Medical & Biomedical Research: Provides stable multi-wavelength outputs for imaging, diagnostics, and spectroscopy.

  • Industrial Inspection & Processing: Ideal for precision alignment, metrology, and material processing applications.

  • OEM Integration: Easily integrated into end-user systems requiring compact, reliable multi-wavelength laser sources.

  • Scientific Instrumentation: Supports optical experiments demanding high stability and low noise performance.
