High Power Pulsed Laser Diodes 1550-Series.
  • Output Power (avg): 5 W
  • Wavelength: 1580 um
  • Pulse Duration: 150 - 200 ns
  • Tuning Range Around Center Wavelength: Not Applicable
Data Sheet
High end/Low cost Pulsed Laser Diodes 905D1SxxUA-Series.
  • Output Power (avg): 110 W
  • Wavelength: 0.915 um
  • Pulse Duration: 500 - 1000 ns
  • Tuning Range Around Center Wavelength: Not Applicable
Data Sheet
Laser package contains a 905 pulsed laser diode (CVD 46) and a 650nm laser diode mounted side by side(distance between the centers of emission = 720um) on a common platform (+, case, positive). Theemission pattern of the two laser die will be centered on the package axis to within +/- 0.010 in.
  • Output Power (avg): 3 W
  • Wavelength: 0.905 um
  • Pulse Duration: 100 - 100 ns
  • Tuning Range Around Center Wavelength: <= 200nm
  • Optical Pulse Width (650 Red): 5 uS
  • ...
Data Sheet
OSI Laser Diode Inc. provides an extremely high brightness CVLL 1550nm pulsed laser diode capable of up to 75 Wattsoutput power. The CVLL devices are well suited to most range finding applications requiring “eye safe” operation.
  • Output Power (avg): 125 W
  • Wavelength: 1.550 um
  • Pulse Duration: 150 - 150 ns
  • Tuning Range Around Center Wavelength: <= 200nm
  • Emitting Area (typ): 95 x 1 - 350 x 720 um
  • ...
Data Sheet
The LHCVN series incorporates a pulsed laser firing circuit into the same package as the laser diode. The hybridization of the driver permits much narrower pulse widths and faster rise times at lower voltage requirements than discretelaser drivers. The LHCVN series is compatible with all OSI LaserDiode, Inc standard MOCVD laser ...
  • Output Power (avg): 200 W
  • Wavelength: 0.905 um
  • Pulse Duration: 10 - 10 ns
  • Tuning Range Around Center Wavelength: <= 200nm
  • Operating Voltage (Typical): 40 - 100 V
  • ...
Data Sheet
Stable Output from -40°C to +85°CSingle & Stacked Devices up to 375WFiber Coupled Devices up to 188WHigh Reliability / High Efficiency
  • Output Power (avg): 375 W
  • Wavelength: 0.915 um
  • Pulse Duration: 100 - 100 ns
  • Tuning Range Around Center Wavelength: <= 200nm
  • Beam Spread: 9 x 25 Degrees
  • ...
Data Sheet
• High Eciency / High Reliability• Stable Output from -40°C to +85°C• Single and Stacked Devices up to 100Watts• 850nm and 905nm Wavelengths• Hermetic Package
  • Output Power (avg): 100 W
  • Wavelength: 0.915 um
  • Pulse Duration: 100 - 100 ns
  • Tuning Range Around Center Wavelength: <= 200nm
  • Beam Spread: 10 x35 degrees
  • ...
Data Sheet
OSI Laser Diode, Inc.’s 850nm laser modules are designed for use in fiber optic instruments where high optical power and low powerconsumption are required. All packages contain LDI’s high reliability laser chips. The low profile style package is designed for use withnarrow high current pulses. Devices can be custom tailored to meet ...
  • Output Power (avg): 1 W
  • Wavelength: 0.85 um
  • Pulse Duration: 50 - 50 ns
  • Tuning Range Around Center Wavelength: <= 200nm
  • Spectral Width (FWHM): 10 nm
  • ...
Data Sheet
“Eye Safe”• High Efficiency• 90μm and 350μm Emitter Widths• Stable Output from -40°C to +85°C• Single and Stacked Devices up to 60Watts• Hermetic Package• RoHS Compliant
  • Output Power (avg): 75 W
  • Wavelength: 1.55 um
  • Pulse Duration: 150 - 150 ns
  • Tuning Range Around Center Wavelength: <= 200nm
  • Peak Power (Fiber): 4.5-37 W
  • ...
Data Sheet

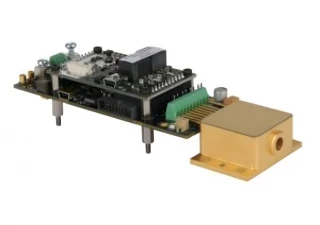

Pranalytica\'s Model 1101-XX-QCW-YYYY-EGC-UC-PF quantum cascade laser (QCL) system is a high average power, wavelength stabilized pulsed QCL platform of infrared radiation for OEM applications. Wavelength stabilization is achieved by incorporating a wavelength dispersive element inside the QCL butterfly package, which is hermetically ...
  • Output Power (avg): 1.5 W
  • Wavelength: 4.6 um
  • Pulse Duration: 20 - 200 ns
  • Tuning Range Around Center Wavelength: Not Applicable
  • Output Power Range: 1 - 1.5 W
  • ...
Data Sheet
Pranalytica\'s Model 1101-XX-QCW-YYYY-UC-MicroPF quantum cascade laser (QCL) system is a high average power, pulsed source platform of infrared radiation for OEM applications in a miniature butterfly package and ultra small electronics driver board. At a wavelength of 4.6 µm, the system produces in excess of 2 W of average power and ...
  • Output Power (avg): 3 W
  • Wavelength: 4.6 um
  • Pulse Duration: 200 - 500 ns
  • Tuning Range Around Center Wavelength: Not Applicable
  • Wavelength Range: 3.8 - 12 um
  • ...
Data Sheet
Pranalytica’s BeckonIR® -XX-YYYY quantum cascade laser (QCL) system is a handheld, autonomous beacon (IFF) of our high average power, pulsed sources of infrared radiation. At the wavelength of 4.6 µm, the system can produce in excess of 2.0 W of average power and at a wavelength of 8.5 µm the system can generate as much as 1.5 W of ...
  • Output Power (avg): 2 W
  • Wavelength: 4.6 um
  • Pulse Duration: 100 - 200 ns
  • Tuning Range Around Center Wavelength: Not Applicable
  • Output Power Range: 1.5 - 2 W
  • ...
Data Sheet
Pranalytica’s PoyntIR® -XX-YYYY quantum cascade laser (QCL) system is a handheld, autonomous demonstrator of our high average power, pulsed sources of infrared radiation. At the wavelength of 4.6 µm, the system can produce in excess of 2 W of average power. Other wavelengths between 3.8 and 12 µm are also available, with varying ...
  • Output Power (avg): 2 W
  • Wavelength: 4.6 um
  • Pulse Duration: 100 - 200 ns
  • Tuning Range Around Center Wavelength: Not Applicable
  • Wavelength Range: 3.8 - 12 um
Data Sheet
High duty cycle pulsed quantum cascade laser (QCL) system by Pranalytica. Model 1101-XX-QCW-YYYY-TT-EXT quantum cascade laser system is a high duty cycle pulsed QCL system that produces quasi-CW power output and is designed for bench top use. Pulse shaping and power conditioning electronics are enclosed inside along with the ...
  • Output Power (avg): 2.5 W
  • Wavelength: 3.6 um
  • Pulse Duration: 50 - 500 ns
  • Tuning Range Around Center Wavelength: Not Applicable
  • Rep Rate Range: Up to 2 MHz
  • ...
Data Sheet
OmniLux tunable multiple quatum cascade laser (QCL) system by Pranalytica. OmniLux is a wavelength tunable external grating cavity multiple quantum cascade laser system. The system can accommodate up to four independent QCLs for providing broad wavelength coverage of about 3,000 nm. The four QCLs, their thermoelectric coolers and ...
  • Output Power (avg): 0.1 W
  • Wavelength: 3.8 um
  • Pulse Duration: 50 - 500 ns
  • Tuning Range Around Center Wavelength: >= 300nm
  • Available Central Wavelengths: 3.8, 4.1, 4.5, 4.8, 6.3, 6.8, 7.3, 8.5, 9.5, 10.2 um
  • ...
Data Sheet
Tunable Monolux QCL system by Pranalytica. Quantum Cascade Lasers (QCLs) represent a fundamentally new class of semiconductor lasers that are capable of generating light in the mid wave to longwave infrared portions of the spectrum, generally between 4 and 12 microns. MonoLux is a wavelength tunable external grating cavity quantum ...
  • Output Power (avg): 0.5 W
  • Wavelength: 10.2 um
  • Pulse Duration: 50 - 500 ns
  • Tuning Range Around Center Wavelength: >= 300nm
  • Rep Rate Range: 0.5 - 2 MHz
  • ...
Data Sheet
Tunable Monolux QCL system by Pranalytica. Quantum Cascade Lasers (QCLs) represent a fundamentally new class of semiconductor lasers that are capable of generating light in the mid wave to longwave infrared portions of the spectrum, generally between 4 and 12 microns. MonoLux is a wavelength tunable external grating cavity quantum ...
  • Output Power (avg): 0.5 W
  • Wavelength: 9.5 um
  • Pulse Duration: 50 - 500 ns
  • Tuning Range Around Center Wavelength: >= 300nm
  • Rep Rate Range: 0.5 - 2 MHz
  • ...
Data Sheet
Tunable Monolux QCL system by Pranalytica. Quantum Cascade Lasers (QCLs) represent a fundamentally new class of semiconductor lasers that are capable of generating light in the mid wave to longwave infrared portions of the spectrum, generally between 4 and 12 microns. MonoLux is a wavelength tunable external grating cavity quantum ...
  • Output Power (avg): 0.5 W
  • Wavelength: 8.5 um
  • Pulse Duration: 50 - 500 ns
  • Tuning Range Around Center Wavelength: >= 300nm
  • Rep Rate Range: 0.5 - 2 MHz
  • ...
Data Sheet
Tunable Monolux QCL system by Pranalytica. Quantum Cascade Lasers (QCLs) represent a fundamentally new class of semiconductor lasers that are capable of generating light in the mid wave to longwave infrared portions of the spectrum, generally between 4 and 12 microns. MonoLux is a wavelength tunable external grating cavity quantum ...
  • Output Power (avg): 0.5 W
  • Wavelength: 7.3 um
  • Pulse Duration: 50 - 500 ns
  • Tuning Range Around Center Wavelength: >= 300nm
  • Rep Rate Range: 0.5 - 2 MHz
  • ...
Data Sheet
Tunable Monolux QCL system by Pranalytica. Quantum Cascade Lasers (QCLs) represent a fundamentally new class of semiconductor lasers that are capable of generating light in the mid wave to longwave infrared portions of the spectrum, generally between 4 and 12 microns. MonoLux is a wavelength tunable external grating cavity quantum ...
  • Output Power (avg): 0.5 W
  • Wavelength: 6.8 um
  • Pulse Duration: 50 - 500 ns
  • Tuning Range Around Center Wavelength: >= 300nm
  • Rep Rate Range: 0.5 - 2 MHz
  • ...
Data Sheet

Did You know?

Nick Holonyak, Jr. demonstrated the first semiconductor laser with a visible (VIS) emission in 1962, the same year when R.N Hall demonstrated his laser diode in infrared (IR) region. This first semiconductor laser could only be used in pulsed-beam operation, and when cooled to liquid nitrogen temperatures (77 K). Pulsed Semiconductor lasers are particularly attractive in optical spectroscopy, optical sampling and telecommunications. Pulsed semiconductor lasers in the near IR (NIR) are commonly used for long distance time-of-flight or phase-shift range finding systems.
