Description
The PowerMir 4.8um High Power Pulsed Quantum Cascade Laser by mirSense offers cutting-edge performance and versatility for a wide range of applications. This advanced quantum cascade laser (QCL) system emits high-power pulsed output at approximately 4.8 microns, making it ideal for spectroscopic analysis, gas sensing, industrial processing, and more. Proudly manufactured in France, the PowerMir laser is ITAR-free and boasts outstanding power and wall-plug efficiency performances.

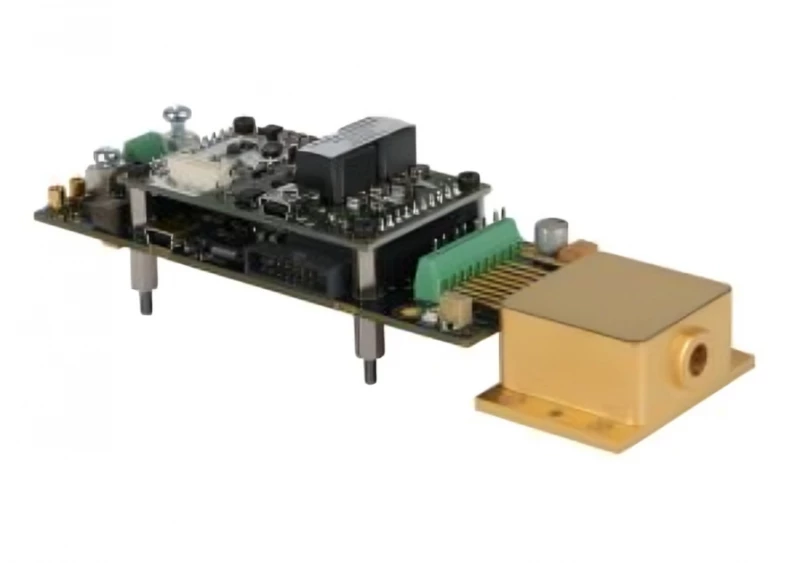

For clients seeking seamless integration into their products, mirSense provides an OEM module controllable by Modbus or Windows Software. This QCL module features a PCB driver connected to a HHL-packaged laser, ensuring precise temperature and current control, laser safety, and modulation capabilities.
PowerMir 4.8um 100mW High Power Pulsed Quantum Cascade Laser OEM module
Specifications
| Output Power (avg): | 0.1 W |
|---|---|
| Wavelength: | 4.8 um |
| Pulse Duration: | 1 – 1 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Mode Of Operation: | Quasi-CW, high duty cycled pulsed |
| Pulse Frequency: | > 500 kHz |
| Divergence (Standard Beam): | 3 to 6 mrad (horizontal), 2 to 4 mrad (vertical) |
| Beam Quality: | TM00 Gaussian beam, M² < 1.5 |
| Polarization: | Linear vertically polarized (>98%) |
| Reliability: | > 3500 hours |
| Operational Temperature Range: | -20 to +30 °C |
| Weight: | Varies by configuration |
| Control Interface: | Modbus or Windows Software |
Download Data Sheet
Features
- High-power pulsed output at approximately 4.8 microns wavelength
- ITAR-free status, proudly manufactured in France by mirSense
- Outstanding power and wall-plug efficiency performances
- OEM module available for seamless integration into products
- Controllable by Modbus or Windows Software
- PCB driver with temperature and current control
- Modulation capabilities with external TTL signal or Windows software
- Precision engineering for reliability and long-term performance
Applications
- Spectroscopic analysis and chemical sensing
- Gas detection and environmental monitoring
- Industrial material processing, welding, and laser marking
- Medical diagnostics and healthcare research
- Defense and security applications, including explosives detection and remote sensing
Frequently Asked Questions
What is the wavelength of the PowerMir 4.8µm High Power Pulsed Quantum Cascade Laser?
The PowerMir laser emits high-power pulsed output at approximately 4.8 microns wavelength, making it ideal for a variety of applications such as spectroscopic analysis, gas sensing, and industrial processing.
What is the mode of operation for this QCL laser?
The laser operates in a Quasi-CW mode with high duty cycled pulsed output, allowing for efficient power delivery and precise control over pulse frequency.
What are the available power options for the PowerMir quantum cascade laser?
The PowerMir laser offers two power options: greater than 1.5 watts or less than 500 milliwatts, providing flexibility to suit different application requirements.
How reliable is the PowerMir 4.8µm High Power Pulsed Quantum Cascade Laser?
The laser demonstrates high reliability, with a specified operational lifetime of over 3500 hours, ensuring consistent performance over extended periods of use.
Can the PowerMir laser be integrated into existing products?
Yes, mirSense offers an OEM module for seamless integration into products. This module includes a PCB driver connected to a HHL-packaged laser, allowing for precise temperature and current control.
What control options are available for the PowerMir QCL?
The laser can be controlled using either Modbus communication protocol or Windows Software, providing users with flexibility in operation and system integration.
What are the typical applications of the PowerMir 4.8µm High Power Pulsed Quantum Cascade Laser?
The laser finds applications in spectroscopic analysis, gas detection, industrial material processing, medical diagnostics, defense, and security, among others, owing to its high-power output and precise control features.
Is the PowerMir laser ITAR-free?
Yes, the PowerMir laser is proudly manufactured in France by mirSense and is ITAR-free, making it suitable for international use and export.
What are the environmental specifications for the PowerMir laser?
The laser is designed to operate within a temperature range of -20°C to +30°C, ensuring reliable performance in various environmental conditions.
