Description

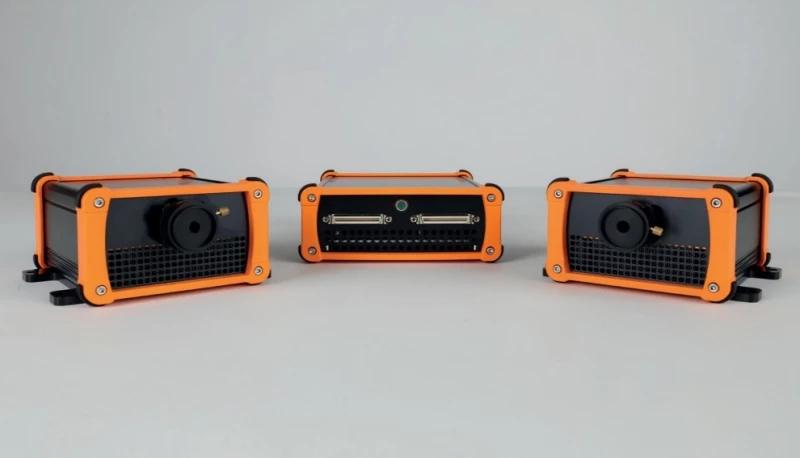

The PowerMir 4.0um High-Power Pulsed Quantum Cascade Laser System is a versatile and user-friendly air-cooled benchtop system designed for lab development purposes. It offers plug-and-play functionality, allowing customers to easily set up and operate the system. This QCL system is equipped with user-friendly Windows software that controls both temperature and current, ensuring optimal performance and preventing laser damage.
With software modulation or external TTL signal control, users can easily adjust the power output according to their requirements. Additionally, this QCL system's driver can be connected to one or two laser heads, accommodating different projects regardless of wavelength or power. CE-marked and featuring an interlock, this system prioritizes safety and compliance.
PW4001500HSTK1A: PowerMir 4.0um High Power Pulsed Quantum Cascade Turnkey System 1500mW Standard Beam
Specifications
| Output Power (avg): | 1 W |
|---|---|
| Wavelength: | 4 um |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Physical Interface: | USB interface for PC connexion (USB cable supplied); TTL trig IN connector for TTL external signal; TTL trig OUT connector for synchronization |
| Software: | A user friendly Windows software is supplied |
| Input Power: | 24V DC (an AC/DC power transformer is supplied) |
| Dimensions: | Laser head: 20cm x 15cm x 6cm / Driver: 25cm*15cm*6cm |
| Weigh: | 925 g |
| Operating Temperature: | +10 to +30 °C |
| Laser Head Cooling: | Air cooled |
| Pulse Frequency: | 500 kHz |
| Beam Quality: | TM00 Gaussian beam, M²<1.5 |
| Output Beam Dimension For The Standard Beam Option (window Output): | Typically 3 mm (vertical) x 2 mm (horizontal) |
| Polarization: | Linear vertically polarized (>98%) |
| Reliability: | > 3500 h |
| Mode Of Operation: | Quasi-CW, high duty cycled pulsed |
Got questions about specs? Use the inquiry form to ask.
Features
- High-Power 4 µm Quantum Cascade Laser System: MIR high-power Fabry-Pérot QCL emitting at a central wavelength of 4 µm ± 0.1 µm, optimized for demanding mid-infrared laser applications.
- ITAR-Free Mid-Infrared Laser Technology: Manufactured in France using proprietary QCL technology, providing an ITAR-free laser solution for simplified international procurement and integration.
- Quasi-CW Pulsed Operation: Operates in QCW high-duty-cycle pulsed mode, enabling improved wall-plug efficiency and reduced thermal dissipation compared to conventional pulsed MIR laser sources.
- High Average Optical Power Options: Available with maximum average optical power configurations of >1 W, <500 mW, or <100 mW across the 3.85 µm to 4.15 µm spectral band.
- Export-Control Friendly Power Versions: The <500 mW version is designed to fall below dual-use power thresholds, helping reduce export-control complexity for many commercial and research applications.
- High Pulse Repetition Frequency: Supports pulse frequencies of >500 kHz, making it suitable for high-speed MIR spectroscopy, sensing, and industrial measurement systems.
- Excellent Beam Quality: Delivers a TM00 Gaussian far-field beam for efficient optical coupling, beam delivery, and integration into precision mid-infrared optical systems.
- Low-Divergence Standard Beam: Standard beam configuration provides full-angle divergence of <6 mrad horizontal and <4 mrad vertical, supporting long working distances and efficient beam shaping.
- Optional Circular Beam Output: Available with a proprietary circular beam option that reduces the need for external beam-correction optics and simplifies system integration.
- Compact Output Beam Dimensions: Standard window-output beam size is typically 3 mm vertical x 2 mm horizontal; circular beam option provides a typical output beam diameter of <3 mm.
- Highly Linear Polarization: Provides >98% vertical linear polarization, ideal for polarization-sensitive spectroscopy, MIR imaging, and optical diagnostics.
- Reliable Long-Life Performance: Engineered for reproducible performance and long service life, with demonstrated reliability of >3500 hours.
- Efficient Thermal Management: QCW operation reduces heat load and improves system efficiency, supporting stable operation when the HHL package base plate is regulated at +20°C.
- Multiple Integration Formats: Available as a plug-and-play benchtop turnkey laser system, OEM driver and laser module, or HHL-packaged QCL for flexible research, industrial, and OEM deployment.
- Reproducible Manufacturing for Series Production: Designed for consistent specifications across production batches, making it suitable for OEM instruments and scalable commercial systems.
- Optimized for MIR Spectroscopy and Sensing: Ideal for mid-infrared spectroscopy, gas sensing, environmental monitoring, industrial process control, defense-free commercial applications, and molecular fingerprinting near 4 µm.
- High Wall-Plug Efficiency: Proprietary high-performance QCL design provides strong optical output with improved electrical-to-optical efficiency for compact MIR laser systems.
- Robust On-Chip Beam Engineering: The optional circular beam is generated through a specially manufactured QCL chip architecture, offering greater robustness than external beam circularization optics.
- Broad 3.85–4.15 µm Spectral Coverage: Output power is specified over the useful MIR band from 3.85 µm to 4.15 µm, supporting applications targeting molecular absorption features around 4 microns.
- Turnkey or OEM-Ready MIR Laser Platform: Designed to meet the needs of laboratories, system integrators, and instrument manufacturers requiring a reliable 4 µm QCW quantum cascade laser with high output power and flexible packaging.
Applications
Applications of 4 µm QCW Quantum Cascade Laser Systems
- Mid-Infrared Gas Sensing and Trace Gas Detection: Ideal for high-sensitivity detection of gases with absorption features near the 3.85 µm to 4.15 µm spectral region, including industrial, environmental, and laboratory gas monitoring applications.
- Photoacoustic Spectroscopy: High average optical power and quasi-CW operation make this 4 µm QCL well suited for photoacoustic gas analyzers requiring strong mid-infrared excitation sources.
- Tunable Diode Laser Absorption Spectroscopy: Suitable for TDLAS-based systems requiring a powerful mid-IR quantum cascade laser source for molecular absorption measurements and quantitative gas analysis.
- Environmental Monitoring: Enables monitoring of atmospheric pollutants, greenhouse gases, and trace chemical species in air quality research, emissions control, and climate-related measurement systems.
- Industrial Process Control: Can be integrated into inline and real-time gas analysis systems for chemical plants, petrochemical facilities, combustion processes, semiconductor manufacturing, and industrial exhaust monitoring.
- Combustion Diagnostics: Useful for studying combustion chemistry, flame dynamics, exhaust composition, and high-temperature gas species in engines, turbines, burners, and propulsion research.
- Stand-Off Chemical Detection: High-power mid-infrared output supports remote sensing and stand-off detection of chemical vapors, hazardous gases, and molecular signatures in security and safety applications.
- Defense and Security Sensing: ITAR-free mid-IR QCL technology is suitable for integration into security screening, threat detection, chemical agent detection, and field-deployable sensing platforms.
- Infrared Countermeasure and Directed Infrared Source Research: High-power 4 µm emission can be used in research and development of mid-infrared illumination, detector evaluation, and IR source characterization systems.
- Mid-Infrared LIDAR and DIAL Systems: Applicable to differential absorption LIDAR, remote gas mapping, and atmospheric propagation studies in the mid-infrared spectral range.
- Free-Space Optical Communication Research: The 3 µm to 5 µm atmospheric window makes this laser suitable for research into mid-infrared free-space optical links and high-power MIR transmission studies.
- IR Camera and Detector Testing: Provides a powerful and stable mid-infrared laser source for testing, calibration, alignment, and performance evaluation of MWIR cameras, photodetectors, focal plane arrays, and thermal imaging systems.
- Optical Bench and Laboratory MIR Source: Plug-and-play turnkey, OEM module, and HHL-packaged options make the system suitable as a reliable 4 µm laser source for spectroscopy labs and photonics research facilities.
- Mid-Infrared Spectroscopy: Supports molecular spectroscopy, absorption spectroscopy, transmission measurements, and material characterization in the molecular fingerprint region.
- Chemical Identification and Molecular Fingerprinting: Enables selective detection and identification of chemicals based on their mid-infrared absorption signatures around 4 µm.
- Pharmaceutical and Chemical Research: Useful for analytical chemistry, reaction monitoring, vapor-phase analysis, and quality control where high-brightness MIR laser excitation is required.
- Semiconductor and Microelectronics Manufacturing: Can be used for process gas monitoring, contamination detection, plasma diagnostics, and inline metrology in semiconductor fabrication environments.
- Petrochemical and Refinery Monitoring: Supports hydrocarbon process monitoring, emissions analysis, leak detection research, and quality control in oil, gas, and refinery applications.
- Automotive and Aerospace Emissions Testing: Applicable to exhaust gas diagnostics, combustion efficiency studies, and real-time emissions analysis for engines, turbines, and propulsion systems.
- Nonlinear Optics and Mid-IR Photonics Research: High-power QCW operation makes the laser suitable for pumping, seeding, beam propagation studies, and nonlinear optical experiments in the mid-infrared.
- Material Characterization: Useful for studying absorption, reflection, transmission, and thermal response of materials in the 4 µm wavelength range.
- Laser-Based Heating and Photothermal Studies: Provides controlled mid-infrared optical power for photothermal spectroscopy, localized heating, thermal response
