CW Semiconductor Lasers

The SMD Laser Diode LS65050001 is a compact and efficient solution for various applications, offering a peak wavelength of 650nm and an optical power output of 3.5mW. Measuring just 3.4x3.3mm, this laser diode is designed to be lighter and shorter, making it ideal for space-constrained environments. The surface mount element ...

Specifications

Center Wavelength: 0.65 um
Output Power: 3.5 mW
Threshold Current: 12 mW
Operating Voltage: 2.2 V
Slope Efficiency: 1 mW/mA

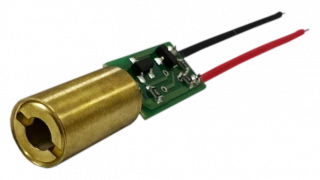

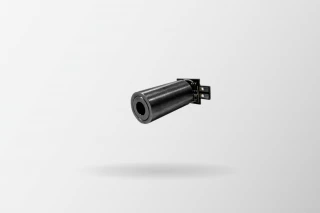

The EEL series from Dishen Electronics introduces a state-of-the-art diode laser module with a diameter of just 6mm. Standing out as the most compact in our standard public version modules, this semiconductor laser uniquely combines precision and miniaturization. Primarily designed for applications like signal processing, sensing, ...

Specifications

Center Wavelength: 0.655 um
Output Power: 2 mW
CW Optical Power: 2~4 mW
Operating Current: 40 mA
Operating Voltage: 2.3 V
The SMD Laser Diode LS80K00001 is a compact and efficient solution for various industrial applications. With its small dimensions of just 3.4x3.3mm, this laser diode is designed to be lightweight and shorter, making it an ideal choice for space-constrained environments. The surface mount device (SMD) construction allows for seamless ...

Specifications

Center Wavelength: 0.808 um
Output Power: 200 mW
Threshold Current: 55 mA
Operating Voltage: 1.8 V
Slope Efficiency: 1.1 mW/mA
Discover the unparalleled performance of our 650nm diode laser module, EEL M12. Renowned for its superior heat dissipation, this module is powered by an advanced APC circuit ensuring a consistently stable optical power output. With a sturdy structure crafted from a high-quality aluminum anode finish, this laser module not only boasts ...

Specifications

Center Wavelength: 0.655 um
Output Power: 0.4 mW
CW Optical Power: 0.7 mW
Operating Current: 100 mA
Operating Voltage: 5 5

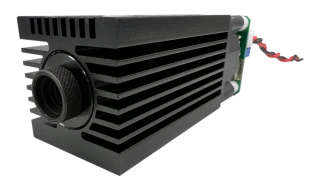

Discover the unparalleled performance of our Blue CW Diode Laser Module 450nm 3W. Renowned for its superior heat dissipation, this module is powered by an advanced APC circuit ensuring a consistently stable optical power output. With a sturdy structure crafted from a high-quality aluminum anode finish, this laser module not only ...

Specifications

Center Wavelength: 0.45 um
Output Power: 3000 mW
CW Optical Power: 3 W
Operating Current: 2000 mA
Operating Voltage: 12 V
Discover the unparalleled performance of our 650nm diode laser module, EEL M12. Renowned for its superior heat dissipation, this module is powered by an advanced APC circuit ensuring a consistently stable optical power output. With a sturdy structure crafted from a high-quality aluminum anode finish, this laser module not only boasts ...

Specifications

Center Wavelength: 0.658 um
Output Power: 25 mW
CW Optical Power: 25 mW
Operating Current: 140 mA
Operating Voltage: 5 V
The M15 EEL Laser Module (450nm | 0.75mW) is a state-of-the-art laser device designed for precision and versatility. It incorporates an APC circuit that ensures unwavering light output power, setting it apart as a premium adjustable focus module. Depending on the unique demands of your site conditions, this module offers unparalleled ...

Specifications

Center Wavelength: 0.45 um
Output Power: 0.75 mW
CW Optical Power: 0.75 mW
Operating Current: 50 mA
Operating Voltage: 24 V
The M15 EEL Laser Module (638nm | 100mW) is a state-of-the-art laser device designed for precision and versatility. It incorporates an APC circuit that ensures unwavering light output power, setting it apart as a premium adjustable focus module. Depending on the unique demands of your site conditions, this module offers unparalleled ...

Specifications

Center Wavelength: 0.638 um
Output Power: 100 mW
CW Optical Power: 100 mW
Operating Current: 200 mA
Operating Voltage: 5 V
The M15 EEL Laser Module (405nm | 150mW) is a state-of-the-art laser device designed for precision and versatility. It incorporates an APC circuit that ensures unwavering light output power, setting it apart as a premium adjustable focus module. Depending on the unique demands of your site conditions, this module offers unparalleled ...

Specifications

Center Wavelength: 0.405 um
Output Power: 150 mW
CW Optical Power: 150 mW
Operating Current: 120 mA
Monitor Current (Iop=120mA): 0.85 mA

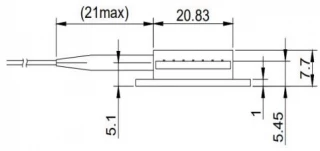

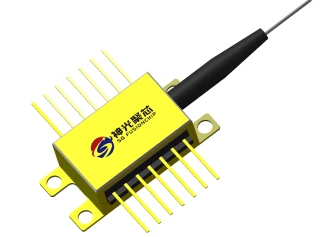

Introducing the SGLD-XXXX-XX-XX-FA-14 Gas Detection DFB Butterfly Device, a cutting-edge solution from SG Fusion Chip Technology Co., Ltd., designed to meet the high demands of optical transmitter systems. This product is engineered with precision and incorporates advanced technology to ensure optimal performance in various ...

Specifications

Center Wavelength: 1550 um
Output Power: 20 mW
Threshold Current: 20 mA
Operating Current: 120 mA
Center Wavelength: λc nm

Frequently Asked Questions

Facet coating is a technique used to reduce the reflectivity of the laser cavity's end facets, which can cause optical feedback and degrade the laser's performance. By applying a thin layer of anti-reflective coating to the facets, the reflectivity can be minimized, resulting in higher output powers, better beam quality, and improved reliability.

Temperature and current are critical parameters that can affect the performance and lifetime of CW semiconductor lasers. High operating temperatures can cause degradation and failure of the laser due to increased thermal stress, while high currents can lead to increased heating, decreased efficiency, and premature aging. Careful control of temperature and current is essential for optimizing the performance and reliability of CW semiconductor lasers.

Yes, CW diode lasers are commonly used in medical and scientific applications, including biomedical imaging, microscopy, and spectroscopy. Their high efficiency, compact size, and ease of integration make them well-suited for these applications, where precise and reliable performance is critical.

Wavelength stabilization is a technique used to stabilize the output wavelength of CW semiconductor lasers by using a feedback mechanism to compensate for changes in temperature or current. This results in a more stable and consistent output wavelength, which is critical for applications such as optical communications and spectroscopy.

Quantum well design is a technique used to improve the efficiency and output power of CW semiconductor lasers by using a series of ultra-thin semiconductor layers to confine the electrons and holes in the laser's active region. This results in a higher gain, lower threshold current, and reduced heating, which can improve the laser's performance and lifetime.

Distributed feedback (DFB) lasers are a type of CW semiconductor laser that use a grating structure to provide feedback for the laser cavity. This results in a single-mode output with high spectral purity and narrow linewidth. DFB lasers are widely used in optical communications and sensing applications, where stable and precise performance is critical.

External modulation is a technique used to improve the performance of CW diode lasers by modulating the input signal externally, rather than directly modulating the laser itself. This can improve the laser's bandwidth, reduce noise, and enable higher data rates in optical communications and data networking applications.

Gain-switched lasers are a type of CW semiconductor laser that use a pulsed current to achieve a high peak power output. They offer several advantages over other types of CW semiconductor lasers, including higher peak powers, faster rise times, and lower costs. Gain-switched lasers are used in a variety of applications, including range finding, LIDAR, and materials processing.

Continuous-Wave Semiconductor Lasers: Steady Light for Precision Applications

Continuous-wave (CW) semiconductor lasers are pivotal in various industries, offering a stable and uninterrupted laser beam ideal for applications requiring consistent illumination. Unlike pulsed lasers that emit light in bursts, CW lasers provide a constant output, making them indispensable in fields such as telecommunications, medical diagnostics, and industrial manufacturing.

Understanding CW Semiconductor Lasers

At their core, CW semiconductor lasers operate by maintaining a continuous flow of electrical current through a semiconductor material, typically composed of compounds like gallium arsenide (GaAs) or indium phosphide (InP). This process stimulates the emission of photons, resulting in a steady laser beam. The design ensures minimal fluctuations in output power, which is crucial for applications demanding high precision and reliability.

Key Features and Advantages

  • Stable Output: The continuous emission ensures uniform intensity, essential for tasks like high-resolution imaging and precise measurements.

  • Compact Design: Their small size allows for easy integration into various systems, from handheld devices to complex industrial machinery.

  • Energy Efficiency: CW semiconductor lasers typically consume less power compared to other laser types, translating to cost savings and reduced thermal management requirements.

  • Longevity: The solid-state nature of these lasers contributes to a longer operational lifespan, reducing maintenance and replacement costs.

Applications Across Industries

  • Telecommunications: CW lasers serve as light sources in fiber-optic communication systems, enabling high-speed data transmission over long distances.

  • Medical Diagnostics: Instruments like flow cytometers and optical coherence tomography devices utilize CW lasers for accurate and non-invasive diagnostics.

  • Industrial Manufacturing: CW semiconductor lasers are employed in material processing tasks such as cutting, welding, and engraving, where consistent energy delivery is paramount.

  • Scientific Research: Laboratories use these lasers in experiments requiring stable light sources, including spectroscopy and interferometry.

Selecting the Right CW Semiconductor Laser

When choosing a CW semiconductor laser, consider factors like wavelength, output power, beam quality, and compatibility with existing systems. Ensuring that the laser meets the specific requirements of your application will maximize performance and efficiency.

At FindLight, we offer a curated selection of CW semiconductor lasers from leading manufacturers, catering to a wide range of applications. Explore our catalog to find the ideal solution for your needs.

Did You know?

The first useful semiconductor laser was made by R.N. Hall in 1962 which was composed of GaAs materials that emitted in near infrared at 0.8 µm. The semiconductor laser is similar to transistor, has the appearance of a LED but the output beam has the characteristics of a laser. The application that was the main driving force in the development of semiconductor lasers was in the field of long distance communications but at this moment the use of this laser in compact disc players constitutes their largest single market. Using semiconductor laser gives an advantage of low power consumption requirements.
